    Product Overview

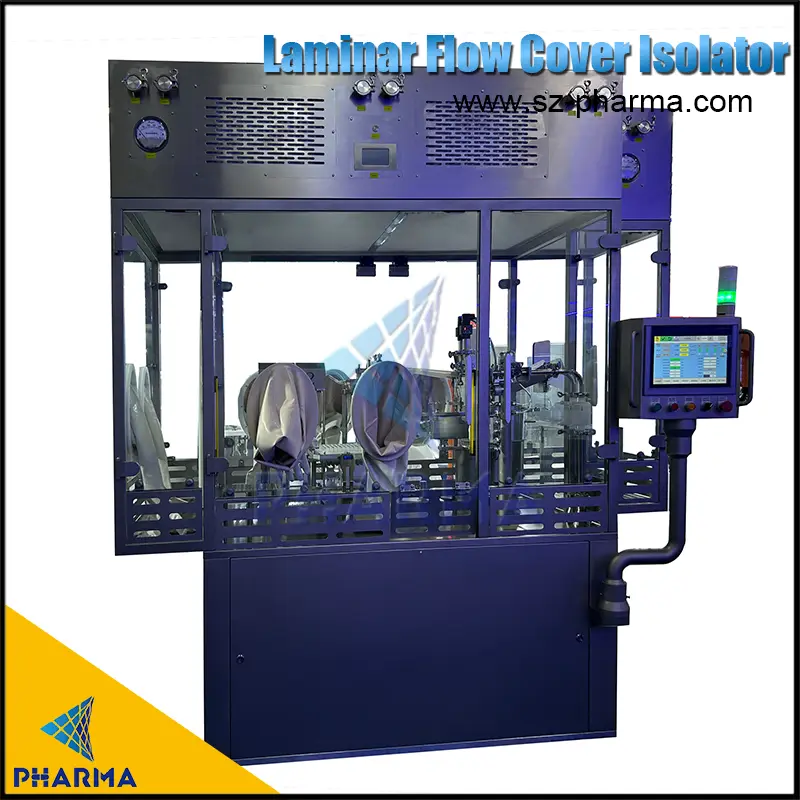

    Laminar flow hood isolator is a device that combines high-efficiency air filtration technology with local airflow control. By forming a stable unidirectional airflow, it establishes a clean level higher than the surrounding environment inside the hood or isolation space, while preventing external pollutants from entering or preventing internal pollutants from spreading to the outside, thereby achieving protection for the operatingobjects (such as drugs, precision components) or protection for operators and the environment (such as biohazardous materials).

    Laminar Flow Hood Aseptic Isolator Filling Isolator OEB4 9

    Working Principle

    • Air circulation and filtration: After the external air (or part of the circulating air) passes through the primary filter to remove large particles of impurities, it is sent to the high-efficiency filter (HEPA, filtration efficiency ≥99.97%@0.3μm) or ultra-high-efficiency filter (ULPA) by the fan. The filtered clean air forms a laminar flow along a specific direction (vertical or horizontal) at a uniform wind speed (usually 0.3-0.5m/s).
    • One-way flow isolation: The The clean airflow forms a "piston-like" driving effect in the isolation space, carrying the internal pollutants out of the isolation area with the airflow and discharged through the return air port or exhaust port (part of the exhaust air needs to be filtered again to avoid polluting the environment), thereby maintaining the cleanliness of the hood and preventing cross contamination.

     Core components

    Components

    Function

    Box / Cover

    Forms a closed or semi-enclosed space, usually made of stainless steel (corrosion-resistant and easy to clean)
    Fan system Provides stable airflow power, often using variable frequency fans to adjust wind speed
    Filtration system Primary filter (pre-filtration, protection of high efficiency filter) + high efficiency / ultra-high efficiency filter (core filtration)
    Air flow distribution devices Such as flow-distributing membranes and porous plates, to ensure uniform diffusion of clean air and avoid turbulence
    Control system Monitor and adjust parameters such as wind speed, pressure difference, temperature and humidity, and some are equipped with alarm functions (such as filter clogging)
    Operation interface Such as glove box interface (for fully isolated operation), open operation surface (semi-isolated, suitable for scenes with slightly lower cleanliness requirements)

    Application

    • Pharmaceutical industry: Production of sterile preparations (such as infusions, freeze-dried powder injections), packaging of raw materials, drug inspection, etc., to ensure that drugs are not contaminated.
    • Medical field: Local cleanliness of operating rooms (such as orthopedics, neurosurgery), burn ward care, vaccination tables, etc., to reduce the risk of infection.
    • Biological laboratories: Microbial culture, virus research, genetic engineering operations, to prevent the spread of bioaerosols.
    • Electronics/precision manufacturing: Semiconductor chips, optical components, precision instrument assembly, to avoid dust causing product defects.
    • Food industry: Production and packaging of high-cleanliness foods (such as sterile filled beverages, health products).

    ...
    ...

    ...

    Advantages of Laminar Flow Hood Isolator

    • The laminar flow hood isolator actively creates and maintains a high clean environment of ISO Class 5 (Class 100) and above through unidirectional laminar flow (through HEPA/ULPA high-efficiency filtration). The disinfection compatibility (adaptable to clean area disinfection methods such as VHP and hydrogen peroxide) is highly compatible with the clean room environment, and can continuously remove internal particles, microorganisms and other pollutants to ensure that the cleanliness in the isolation space is stable and controllable.
    • In the filling of sterile preparations in the pharmaceutical industry, the laminar flow hood isolator can directly protect the liquid medicine and container from microbial contamination. When assembling semiconductor chips, the laminar flow hood isolator can prevent external dust from adhering to the surface of the chip,
    • (Some scenes can be designed as positive pressure) to prevent the intrusion of external unpurified air, and at the same time, with the smooth and easy-to-clean inner wall and directional airflow, the risk of the operating object (such as precision electronic components, cell culture samples, sterile drugs) being contaminated by the external environment is minimized to achieve the "internal protection" function.
    • The laminar flow hood isolator has a uniform airflow speed (0.3-0.5m/s), a clear path (such as top delivery and bottom return), no turbulence or dead corners, and the operator can clearly predict the direction of the airflow, reducing the risk of disturbing the clean environment due to operating actions.
    • The hood design is more flexible, and the size can be adjusted according to operational requirements (such as a local laminar flow hood can cover a specific operating area), and because the internal pressure is positive, the airflow disturbance when opening the door/transferring materials is small (only a short-term impact, and recovery is rapid).
    • The fan system of the laminar flow hood isolator only needs to maintain local laminar flow and positive pressure, and the air volume is small; while the negative pressure isolator usually requires a high-power fan to continuously extract and exhaust to ensure the stability of negative pressure and exhaust filtration efficiency, and the energy consumption is higher.
    Laminar Flow Hood Aseptic Isolator Filling Isolator OEB4 13Laminar Flow Hood Aseptic Isolator Filling Isolator OEB4 14

    In the production of sterile preparations, a variety of different process equipment are usually involved, such as freeze dryers, filling machines, supporting bottles, stopper cleaning systems and sterilization systems, as well as process steps involving material mixing, screening and sampling. For a complete production line, a complete sterile solution is required to facilitate the operation of operators and provide sterile environment control.

    Suzhou Pharma integrates different process equipment and based on technical advantages, it can provide sterile preparation auxiliary supporting system solutions that meet regulatory requirements, including sterile mixing, screening equipment, sterile isolation system, VHP space sterilization system, etc., which can meet:

    Requirements for sterile environment in the production of sterile preparations;

    Provide optimized solutions (freeze dryer automatic feeding and discharging solutions, material sterile/closed transfer solutions, etc.);

    Provide highly automated production lines;

    Integrate steris sterilization system;

    Provide control systems that meet cGMP requirements.

    product-PHARMA-High Efficiency Filtration Single Top Air Shower-img-1

    product-PHARMA-img-1

    product-PHARMA-img-1

    product-High Efficiency Filtration Single Top Air Shower-PHARMA-img-1

    product-PHARMA-img-1

    product-PHARMA-img-2

    product-PHARMA-High Efficiency Filtration Single Top Air Shower-img-2

    product-PHARMA-img-2
