superior filter fan unit factory for cosmetic factory
After Warranty Service:Video technical support, Online support
Warranty:1 year
Certification:ISO9001, ISO CE
Efficiency:99.995%@0.3μm
Size:Customized
Color:White
Medium Material:Paper,glass fiber,cotton
Porosity:0.5um, 0.3um
Frame:Extruded aluminum,galvanized steel sheet
Construction:Panel Filter
Limit Discounts
Description

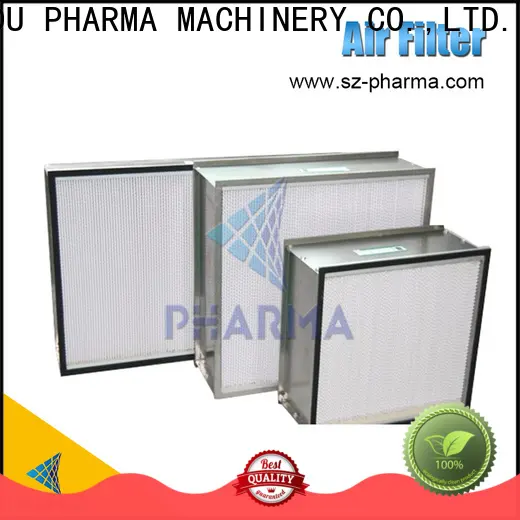

Air filter refers to the air filter device, which is generally used in clean workshop, laboratory and dust free cleanrooms, or used for clean room equipment, air shower, pass box, clean bench, weighing booth, safety cabinet, etc. There are five types of air filter: primary filter, medium efficiency filter, high and medium efficiency filter and sub high efficiency and high efficiency filter. Different models have different standards and performance.
Characteristics 1. Air filter screen is made of very small organic fibers. The ability to capture particles is stronger, small pore size, large adsorption capacity,small wind resistance, and high filtration accuracy; 2. Filtration efficiency: efficiency varies according to material. 3. According to the equipment's air flow requirements, installation size requirements, filtering efficiency and resistance requirements to selection and design; 4. Application: cleanroom system, air clean equipment, fresh air machine, air conditioning, electronic industry, medical equipment, etc. 5. With functions perfect large scale group control operating system |
Technical Parameters
| Structure | Dimensions | Airflow | Early resistanc | Recommended endresistance |
| Chip | 290*595*20(mm) | 1240(CMH) | 95(Pa) | 120(Pa) |
| 493*595*20(mm) | 2110(CMH) | |||
| 595*595*20(mm) | 2540(CMH) | |||
| 290*595*46(mm) | 1240(CMH) | 60(Pa) | 80(Pa) | |
| 493*595*46(mm) | 2110(CMH) | |||
| 595*595*46(mm) | 2540(CMH) | |||
| Pleated | 290*595*46(mm) | 1240(CMH) | 40(Pa) | 62(Pa) |
| 493*595*46(mm) | 2110(CMH) | |||
| 595*595*46(mm) | 2540(CMH) |
| Filter level | Filtration accuracy | Filtration efficiency |
| G1 (EN779) | ≥5um | 40% |
| G2 (EN779) | ≥5um | 70% |
| G3 (EN779) | ≥5um | 85% |
| G4 (EN779) | ≥5um | 90% |
| F5 (EN779) | 1- 10um | 35% |
| F6 (EN779) | 1-10um | 45% |
| F7 (EN779) | 1-10um | 65% |
| F8 (EN779) | 1-1 0um | 85% |
| F9 (EN779) | 1-1 0um | 95% |
| H10 (EN1 8822) | ≥0.3um | 90% |
| H11 (EN18822) | ≥0.3um | 99% |
| H12 (EN1 8822) | ≥0.3um | 99.90% |
| H13 (EN1 8822) | ≥0.3um | 99.99% |
| H14 (EN18822) | ≥0.3um | 100.00% |
