Name: HEPA Box
Air speed: Hospital: 0.3-0.6m/s
Type: ceiling filter box
Flume seal: Side flume seal
Limit Discounts
Description

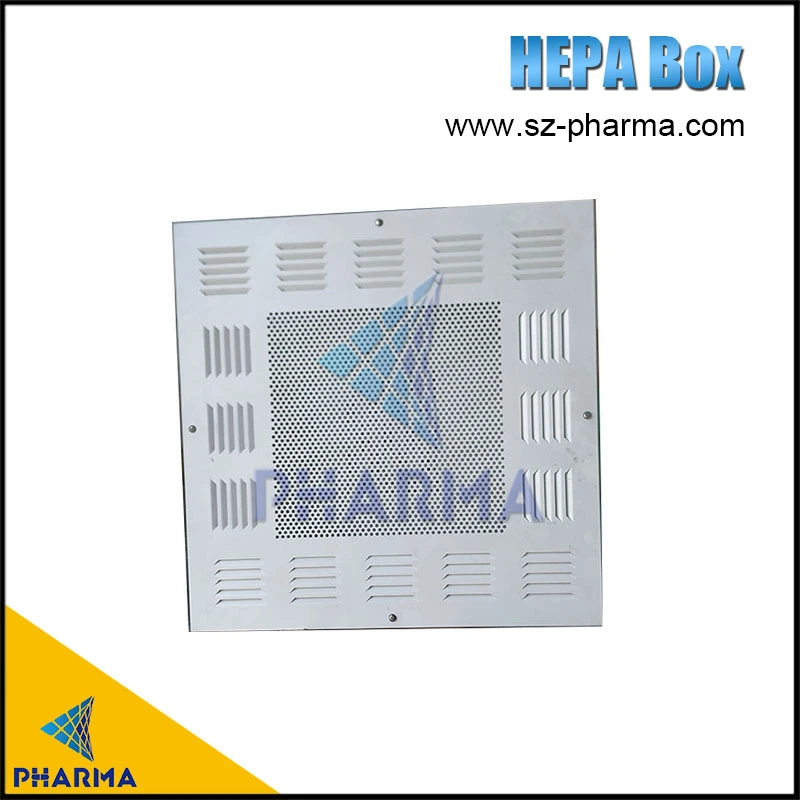

The HEPA box is an ideal terminal filter device for class100/1000/10000 and 100000 grade purifying air conditioning system, which can be widely used in the fields of medicine,sanitation,electronics, pharmaceutical, chemical industry cleanrooms.
The HEPA box includes a static pressure box, a diversion plate, a high-efficiency filter, and an air flow regulating valve. The interface wit the air duct can be top-connected or side-connected.
 | Main Features
|
Technical Parameters
| Model | 500 volume | 1000 volume | 1500 volume | 2000 volume | 3000 volume |
Air vent size | 420*420 | 590*590 | 730*730 | 1070*590 | 1360*730 |
Filter size | 320*320*220 | 484*484*220 | 630*630*220 | 968*484*220 | 1260*630*220 |
Air vent hole size | 380*380 | 550*550 | 690*690 | 1030*550 | 1030*550 |
Diffuser plate size | 430*430 | 600*600 | 740*740 | 1080*600 | 1370*740 |
| Air inlet size | 200*200 | 320*200 | Side supply 400*200 Top supply 320*250 | Side supply 500*200 Top supply 400*250 | Side supply 630*200 Top supply 500*320 |
| Initial Resistance | 200PA±10% | ||||
| Efficiency | ≥99.999%@0.3um | ||||
| Filter initial resistance | 200PA±10% H14 | ||||
Flume seal | Side flume seal | ||||
Installation
