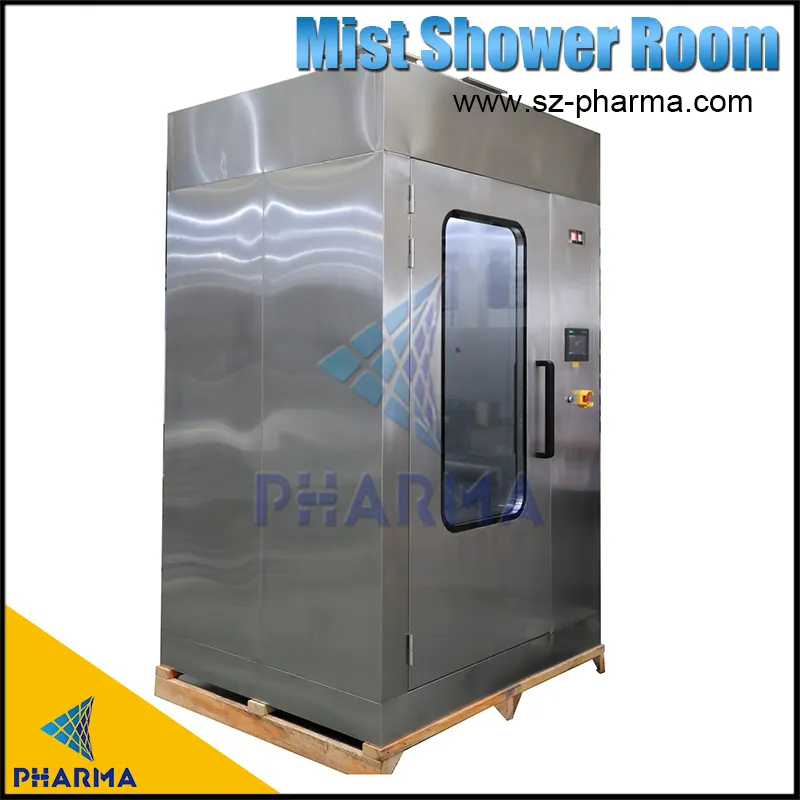

Name: Mist Shower Room
Application: Cleanroom, lab, dust-free room
Cabin Material: 316/304 Stainless Steel
Limit Discounts
Description
The mist shower room is suitable for high-pollution product operation rooms, powder, toxic dust, pharmaceutical, and chemical enterprises. It uses a high-pressure pump to compress water and spray it in a fine mist through a copper nozzle, moistening the dust adhering to the work clothes, preventing the dust from the staff's clothing from flying around. It can be connected to multiple devices.
Working principle:
The mist shower room uses a water pump to pressurize the water in the water tank, which is then transported through pipes to the atomizing nozzles. Under the action of the nozzles, the water is atomized into micron-sized fine water droplets. These water mists diffuse in the room, coming into contact with the surfaces of people and goods entering the room or combining with dust particles in the air, achieving the purpose of cleaning and dust suppression. If disinfectants are added to the water, it can also play a role in disinfection and sterilization.
Air flow speed | ≥20m/3 |
Material | SS304/SS316 |
Water temperature | 35±3℃ |
Shower time | Adjustable |
Filter system | H13 high efficiency filter |
Nozzle | 12pcs |
Water mist particles | 10-15um |
Weight | 350kg |
Power supply | 380V/50Hz |
Components:
Water supply system: consists of components such as water tanks, pumps, and valves.
Atomizing nozzle: This is a key component of the misting chamber. Through a specially designed nozzle structure, pressurized water is atomized into fine water droplets. There are various types of nozzles, such as centrifugal nozzles, pressure nozzles, and ultrasonic nozzles, etc. Different nozzles produce water mist with different particle sizes and distribution.
Control system: Generally consists of a control box and sensors (such as humidity sensors, temperature sensors, infrared human body sensors, etc.).
Building structure: The outer shell is mostly made of stainless steel, color steel plates, etc., which have excellent sealing performance and durability. The internal space is designed according to the usage requirements and can accommodate the passage of people or goods.
