| Model | PH-W series | ||
| Internal Size (W*D*H) | 1600*3000*2600 | 2000*3000*2600 | 2500*3000*2600 |
| External Size (W*D*H) | 1500*2400*2000 | 1900*2400*2000 | 2500*2400*2000 |
| Class/Air Flow | ISO5 0.45±20%m/s | ||
| Pre-filter | G4 (90%@5um) | ||
| Med-filter | F8 (85%~95%@1~5um) | ||
| HEPA filter | H14 (99.995-99.999%@0.3) | ||
| Power Supply | 380V/3Ø/50Hz(Advice if different) | ||
| Control Mode | VFD Control/Simens PLC Control | ||
| Rated Power | 3kW | 4kW | 5kW |
| Total/Exhaust Volume | 8000/800(m3/h) | 10000/1000(m3/h) | 13000/1300 |
| UV Light | Optional | ||
| Light Intensity | ≥300Lx | ||
| Nose | ≤70dB (A) | ||
| Different Pressure Gauge(3 nos.) | 0-60Pa/0-250Pa/0-500Pa | ||
| Socket | IP66/Qty.4 | ||
| MOC | SUS304/1.2mm | ||

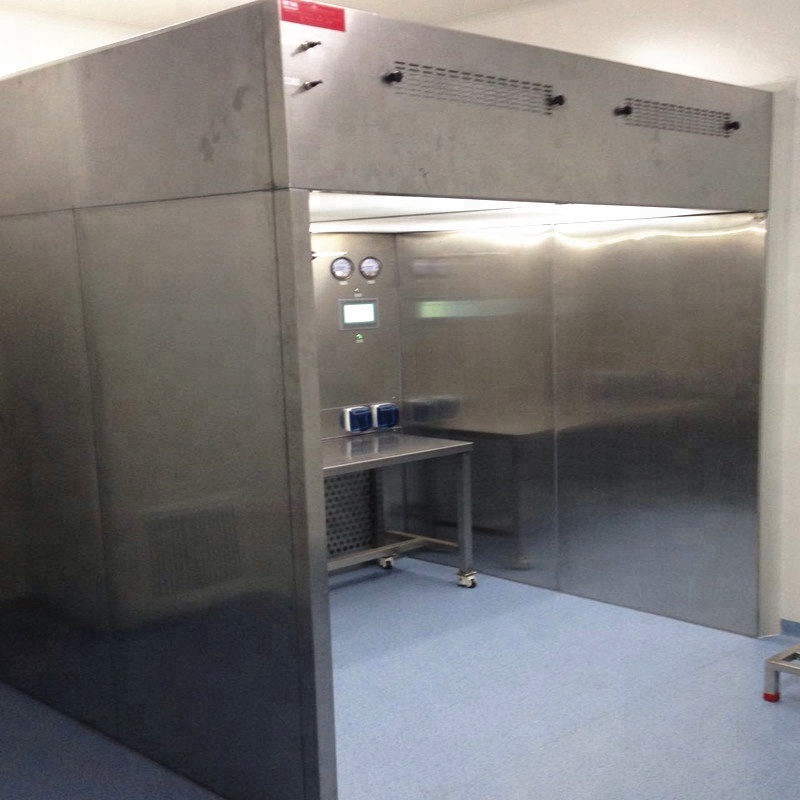

Weighing booth is a dedicated purification equipment for sampling, weighing and analysis. It can contain powders and particles within work area and prevent operator from inhaling them.
Operating features:
1: Modular. Easy-to clean rigid design with minimal joints
2: HEPA/ULPA Gel-seal down flow filter are replaceable from within the booth. Gel-seal is more reliable than conventional gasket seals
3: Voltage-compensating blowers ensure stable air flow.
4: Magnehelic Gauges provide convenient and reliable means for monitoring gauges air flow and filter condition.
