GMP Standard Weighting Room with SUS 316 Material for Pharmaceutical Cleanroom
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model | PH-W series | ||
| Internal Size (W*D*H) | 1600*3000*2600 | 2000*3000*2600 | 2500*3000*2600 |
| External Size (W*D*H) | 1500*2400*2000 | 1900*2400*2000 | 2500*2400*2000 |
| Class/Air Flow | ISO5 0.45±20%m/s | ||
| Pre-filter | G4 (90%@5um) | ||
| Med-filter | F8 (85%~95%@1~5um) | ||
| HEPA filter | H14 (99.995-99.999%@0.3) | ||
| Power Supply | 380V/3Ø/50Hz(Advice if different) | ||
| Control Mode | VFD Control/Simens PLC Control | ||
| Rated Power | 3kW | 4kW | 5kW |
| Total/Exhaust Volume | 8000/800(m3/h) | 10000/1000(m3/h) | 13000/1300 |
| UV Light | Optional | ||
| Light Intensity | ≥300Lx | ||
| Nose | ≤70dB (A) | ||
| Different Pressure Gauge(3 nos.) | 0-60Pa/0-250Pa/0-500Pa | ||
| Socket | IP66/Qty.4 | ||
| MOC | SUS304/1.2mm | ||

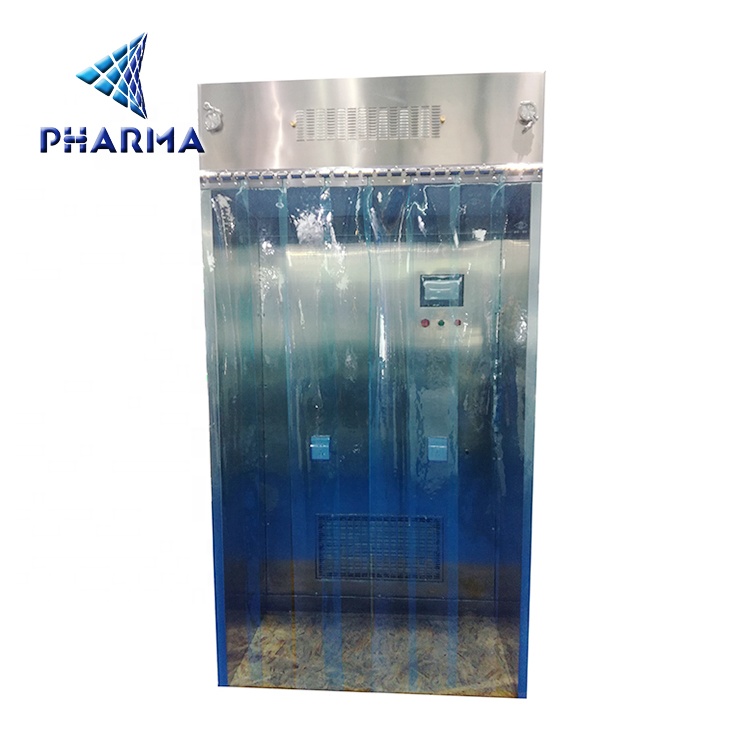

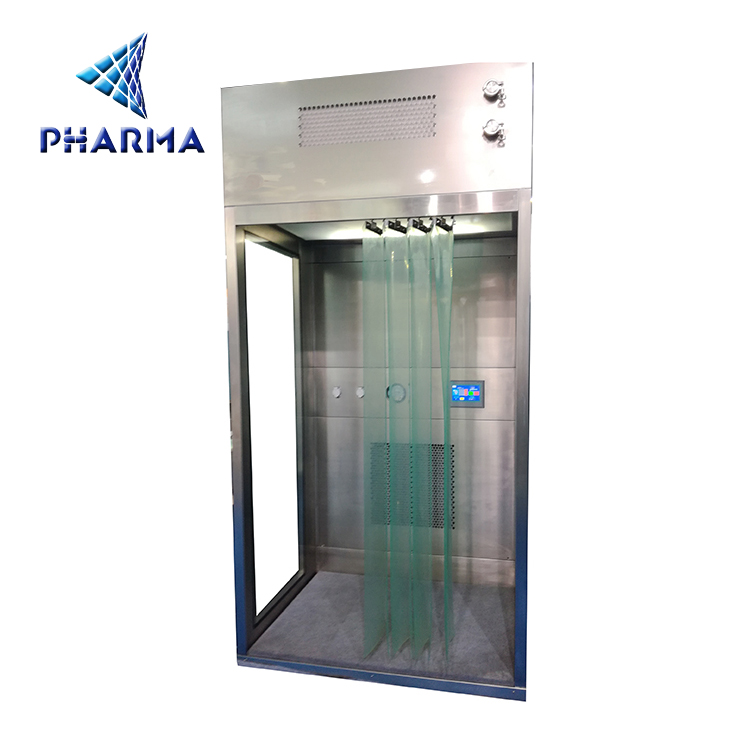

Sampling Room is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Characteristics:
-Create a partial clean grade class A area
-Negative pressure to prevent the cross infection or make harm to the operator
-Three level filter to make sure the filter efficiency
-Frequency-converting control to ensure the air velocity stable
-With touch screen to check the working condition
-PLF screen to ensure air flow no turbulence
-Customized design is welcome.
PHARMA take effective measures to ensure the quality of Clean Room.
Modern management system has been formed in SUZHOU PHARMA MACHINERY CO.,LTD..
