Dynamic Pass Box With Laminar Flow For Cleanroom

这里可以自定义设置

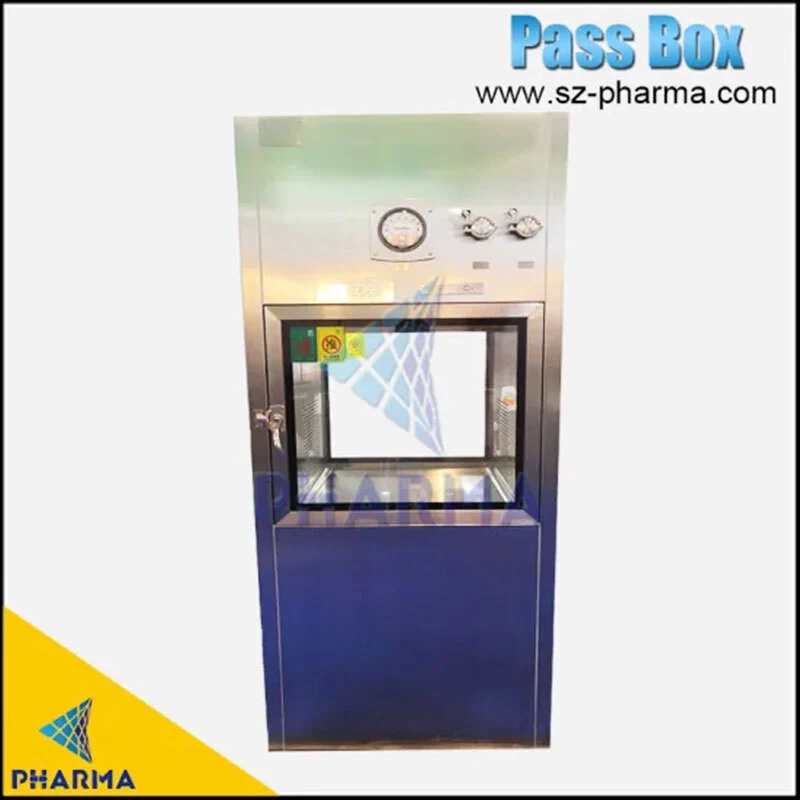

Dynamic Pass Box With Laminar Flow For Cleanroom
Brand name:
PHARMA CLEAN
Power
220V/50HZ
Material
SS304/SS316
Original:
Suzhou, China
Payment:
T/T; Cash; Alibaba trade assurance
Delivery Time:
15-20 days
Start Port:
Shanghai
Packing Details:
Plywood case
参数暂无数据

Add success, do you want to check your shopping cart?

暂无分享


  • After Warranty Service: Video technical support, Online support

  • Used: GMP clean room; Clean Booth; Hospital: Laboratory

  • Material: SS304/SS316

  • Certification: CE ISO GMP

  • Name: Pass box

  • Door: 5mm Glass


product-pass box clean room-PHARMA-img


Limit Discounts

Limit Discounts


product-Dynamic Pass Box With Laminar Flow For Cleanroom-PHARMA-img


Description

Description


It is mainly applied to the goods transfer between two classified zones,preventing the cross contamination due to air circulation. The possibility of contaminating the cleanroom can be minimized & the cleanliness of the cleanroom can be maintained.


product-PHARMA-dynamic pass box-img
Characteristics

1.Cold steel material or SUS304.
2.The internal circular plate chamfering processing, no dead angle.
3.Embedded ultraviolet germicidal lamp on top.
4.Two-door for large angle square window.
5.Double hollow toughened glass observation window.
6.Soft contact control switch, microcomputer program.
7.Electronic interlocking system.
8.With the power indicator light.

Technical Parameters

Technical Parameters


ModelPHD-01PHD-02PHD-03
External dimension W×D×H(mm)660*500*1400760*600*1500860*700*1600
Internal Dimensions W×D×H(mm)500*500*500600*600*600700*700*700
MaterialSUS304 stainless steel; Pre-painted cold work steel sheet
InterlockElectronic; mechanical
UV Lamp30W*1
HEPA FilterEfficiency≥ 99.999% at 0.3um
Speed0.36~0.54m/s
