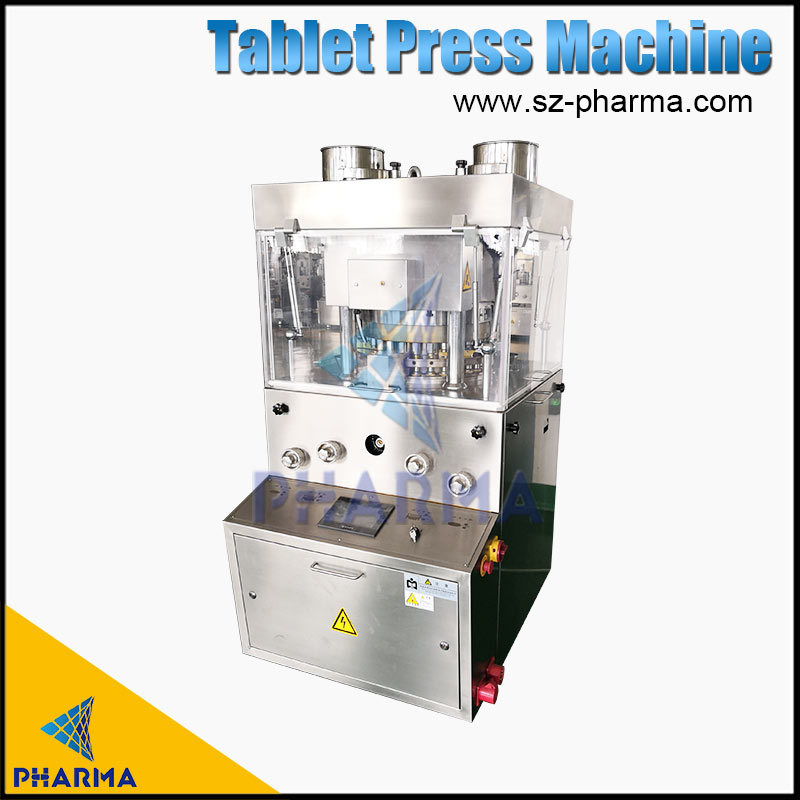

Model: ZPW-21D Tablet Press Machine
Motor Power: 3KW
Max press: 200KN
Weight: 1700kg
Limit Discounts
Description
This machine is designed for pressing all kinds of granular materials into a round plate, and is suitable for batch production of the basic equipment. Rotary speed, the depth of the filling and tablet thickness can be adjusted. The mechanical buffer device can avoid the overload and cause damage to the machine. The machine can be another match suction powder box, through the suckers to absorb dust, avoid bonding jams, and recycle raw materials to use.
Main Features1.This outside part of machine is fully-enclosed, it’s made of stainless steel to meet GMP standard. 2.It has transparent windows so that press condition can be observed clearly and can be opened, maintenance is easier. 3.It can make single and double-layer, and tablets have impressed letter on both sides. 4.All controller and devices are located in system to avoid damadge of punches and apparatus when overload occurs. 5.The machine’s worm gear drive adopts fully enclosed oil-immersed lubrication with long service-life to prevent cross pollution. |
Technical Parameters
Model | ZPW21D |
Quantity of Punch&die | 21 sets |
Max Pressure | 200KN |
Overall Size | 1300*1100*1900mm |
Max Dia of Tablet | 20mm |
Max Thickness of Tablet | 9mm |
Max Depth of Filling | 18mm |
Rotate Speed | 30r/min |
Production capacity | 37800 |
