ZP-9Custom Die Pill Die Pharmaceutical

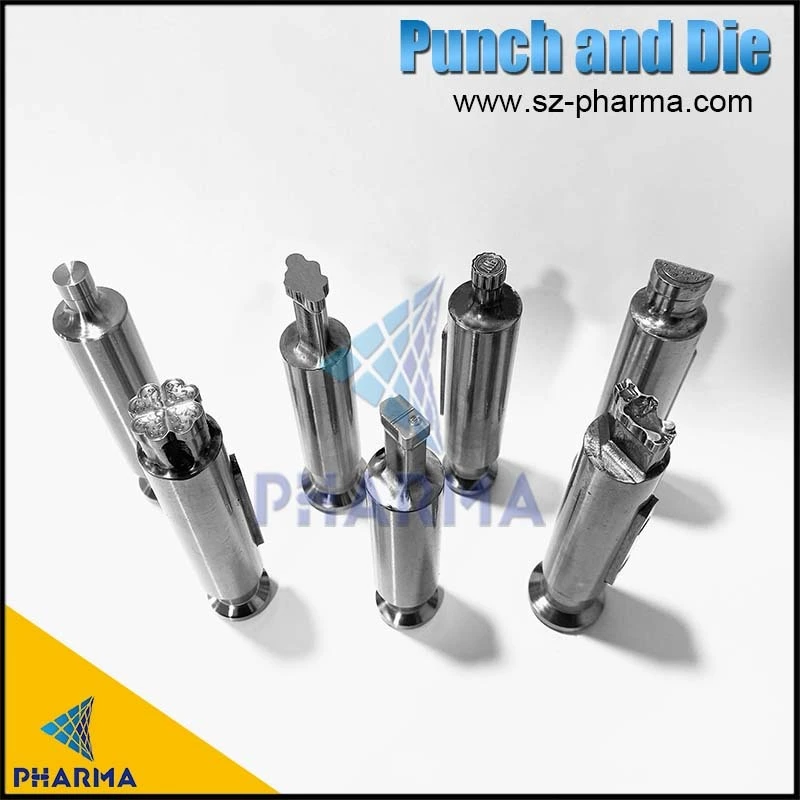

Tablet press die can be engraved die Engraving punch is an important part of the tablet press, also known as the tablet press die in the industry. A pair of tablet press molds are divided into three parts: upper punch die, middle punch die and lower punch die. The punching dies we produce are round, special, rotary, single, etc., and each process of material, heat treatment, grinding, polishing, etc. contains many years of technical experience. Especially in terms of material selection, imported steel is especially selected to improve the quality of the mold. In terms of technical specifications, we always adhere to manufacturing standards.

The tablet press mold is assembled on the tablet press and is suitable for compressing Chinese and Western medicine tablets, nutrient tablets, lozenges, spirulina tablets, milk tablets, vitamin C effervescent tablets, effervescent tablets, seasoning blocks, mothballs (hygienic balls), Aromatic balls, disinfection tablets, fertilizer tablets, bath salt balls, button batteries, electronic components, metallurgical powder ceramic particles

This set of mould is suitable for ZP series tablet press. We have a large number of mould in stock. We can deliver the mould immediately after payment, or you can send your design to us

Mold maintenance~

The main contents are cleaning, lubrication and inspection.

A. Maintenance during mold installation:

1. The upper and lower surfaces of the mold should be cleaned before installing the mold to ensure that the mold mounting surface and the working table of the press will not be compressed and damage the parallelism of the upper and lower mounting surfaces of the mold in production;

2. After the mold is installed, open the mold and clean all parts of the mold, especially the guide mechanism. For the surface part of the mold, its surface should be cleaned to ensure the quality of the parts;

B. Maintenance in production:

1. Oil the corresponding parts of the mould regularly during production. Such as: the pressing ring and fillet of the drawing die; the knife edge of the trimming die; the flanging knife block, etc;

2. Clean up the small hole waste channel of trimming and punching die regularly.

C. Maintenance after production:

1. After the end of production, the mold should be checked comprehensively;

2. Clean the mold completely to ensure the cleanliness of the mold;

3. Clean up the waste in the mould to ensure that there is no waste in the waste box;

4. If it is used for a long time, spray antirust oil after cleaning. If it is not used for a long time, put it in diesel after cleaning

Characteristics 1.It is made of carbon steel, bearing steel and chrome 12 2.Digital machining center precision manufacturing, in line with IPT standards 3.Corrosion resistance, impact resistance, wear resistance, high temperature resistance, long service life
