TDP6 candy machine

这里可以自定义设置

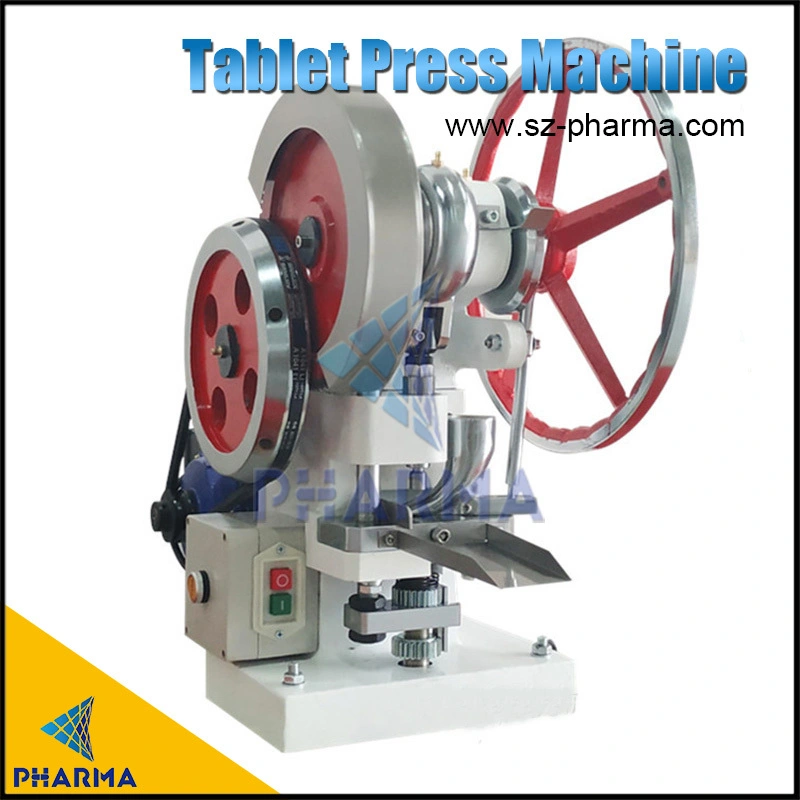

TDP6 candy machine
参数暂无数据

Add success, do you want to check your shopping cart?

暂无分享
Product Description

This machine is used for pressing different kinds of granular raw materials into candy.


Features:
·Simple structure
·Low costs
·Simple operation and maintain
·Low consumption of material

Model
1.5 T
5 T
6 T
Max. pressure (KN)
15
50
60
Max. dia of tablet (mm)
12
16
25
Max. depth of fill (mm)
11
12
16
Max. Thickness of Tablet (mm)
6
6
10
Production capacity (pc/h)
6000
6000
6000
Motor (W)
250w 1400r/min
750w 1400/min
1.1kw 1400r/min
Overall size (mm)
580 x 450 x 625
580 x 500 x 700
650 x 600 x 700
Net weight
70 kgs
125 kgs
160 kgs
Detailed Images
Packing & Delivery
FAQ

Q:  Do you have operation video ?
A:   Yes, we have full the video from installation to operation. We will send you all the video you want or need after the order.

Q: Can you arrange the shipping for you ?
A: Yes, we can arrange the air shipping or sea shipping for you as you need.

Q: Suitable for which kind of material ?
A:  For fluidity , sticky and dry powder or particles, such as Radix Isatidis granules, salts etc.
     Some very fine powder(like wheat flour etc.) can not be pressed directly.

Q: About the punch die ? shape ? and le
ttering ?
A:Our machine will be attached with one set of round punch die, you can choose from 4/5/6/8/9/12mm. If you need other shape or need lettering, please contact with us. We can do for you.

Q: How to order the machine ?
A: after confirm the model you want, please contact with our service man. We will contract the order on line. Then send you the link.
