After Warranty Service:Video technical support, Online support, Field maintenance and repair service
Warranty:1 year
Overall Size :580 X 450 X 625mm
Shipment:Express, Air, Sea, Express
Package Weight: 80kg
Power Source: Electricity
Max. Pressure:15kn
Max. Depth of Fill:11mm
Motor:250W 1400r/Min
Rated Voltage:220V/110V

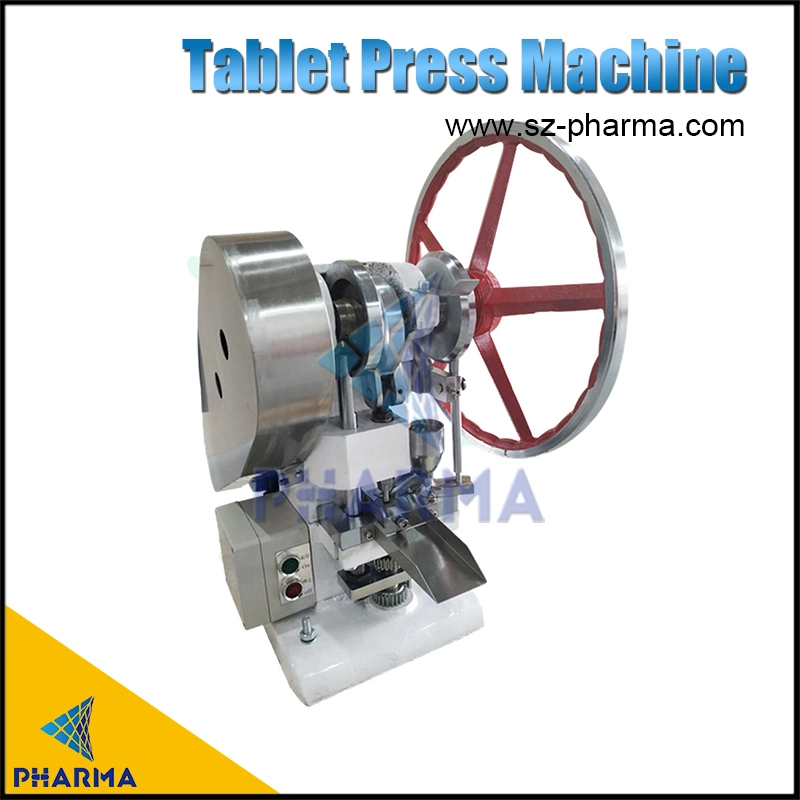

Tdp-1.5 single stamping machine has excellent performance, strong adaptability, easy to use, easy to maintain, small size, light .weight, and can be manually pressed when there is no electricity, At the same time, the filling depth is increased, so the specification of the tablet is expanded. Therefore, this function can meet the requirements of pressing various kinds of Chinese and Western medicine tablets in pharmaceutical industry and similar products in other industries
 | Characteristics 1. Hand electric can be switched The machine is easy to use, and can be pressed by hand or by electricity. It has stronger applicability 2.High pressure and easy operation Compared with the original TDP0 tablet press, the mechanical strength and power are increased, the tablet pressing force is greater, the filling depth is increased, and the tablet size is expanded 3. The pressure can be adjusted Loosen the lock nut and rotate the upper punch to the left, the pressure will increase; otherwise, the pressure will decrease |
| Model | 1.5 T |
| Max. pressure | 15KN |
| Max. dia of tablet | 12mm |
| Max. depth of fill | 11mm |
| Max. Thickness of Tablet | 6mm |
| Production capacity | 6000Pc/h |
| Motor | 250w 1400r/min |
| Overall size | 580 x 450 x 625mm |
| Net weight | 70 kg |
