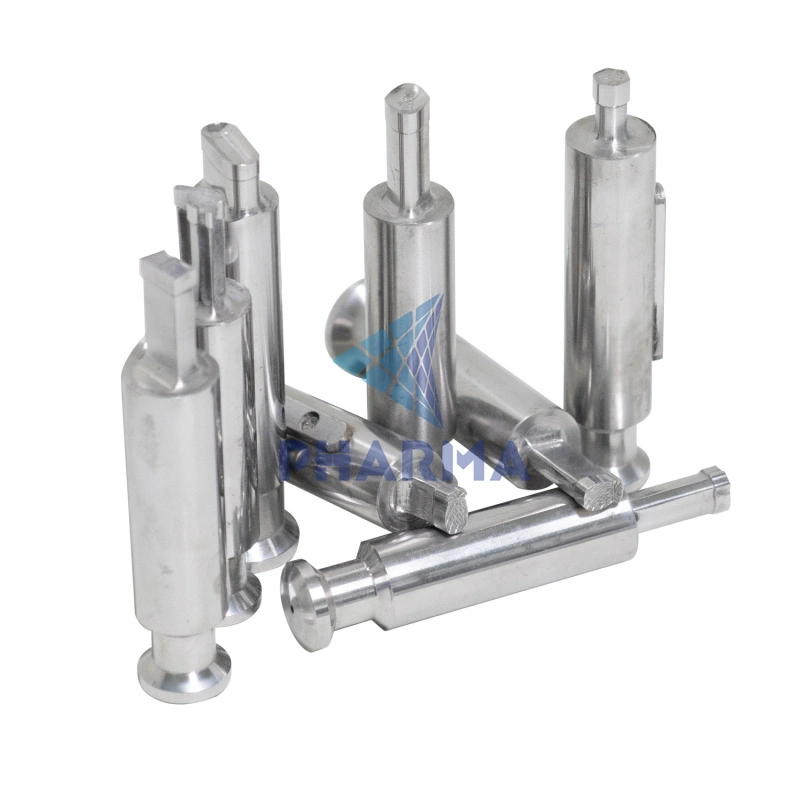

TDP-0 Pill Die Lettering Die1

Inquiry

Write a Review

Shop Activities

Product Description

Tablet press die can be engraved die Engraving punch is an important part of the tablet press, also known as the tablet press die in the industry. A pair of tablet press molds are divided into three parts: upper punch die, middle punch die and lower punch die. The punching dies we produce are round, special, rotary, single, etc., and each process of material, heat treatment, grinding, polishing, etc. contains many years of technical experience. Especially in terms of material selection, imported steel is especially selected to improve the quality of the mold. In terms of technical specifications, we always adhere to manufacturing standards. The tablet press mold is assembled on the tablet press and is suitable for compressing Chinese and Western medicine tablets, nutrient tablets, lozenges, spirulina tablets, milk tablets, vitamin C effervescent tablets, effervescent tablets, seasoning blocks, mothballs (hygienic balls), Aromatic balls, disinfection tablets, fertilizer tablets, bath salt balls, button batteries, electronic components, metallurgical powder ceramic particles This set will fit a range of TDP type including the new TDP 0, TDP 1.5, TDP 5, TDP 6s. All sets come complete with a centre ring die specific to your machine. Please select your size below. You can also purchase this design in any other shape or size and for many other machines. Get in touch to discuss your ideas!

Material	Gcr15
Model	ZP TDP
Design	Round	Square	Irregular
Prepare time	20-40 working days
Die size	custom

product-PHARMA-TDP-0 Pill Die Lettering Die-img

Features:

1. It is made of carbon steel, bearing steel and chrome 12

2. Digital machining center precision manufacturing, in line with IPT standards

3. Corrosion resistance, impact resistance, wear resistance, high temperature resistance and long service life

4. Interchangeability 100% (no matter round or special mold)

Detail Show

product-PHARMA-TDP-0 Pill Die Lettering Die-img-1

Tablets are a common dosage form in medicinal preparations because of their convenience to take, and the die is an indispensable accessory on the tablet press of commonly used tablet equipment. It is also a very important task to correctly select the appropriate die after the tablet press is purchased. In daily life, many tablet pharmaceutical factories cannot use the tablet press normally due to improper die selection. In order to enable the users of the pharmaceutical factory to better order the appropriate die, this article will introduce some details. At the same time, it is recommended that the user of the pharmaceutical factory should have a full discussion with the die manufacturer first to reduce possible problems during production. Due to the characteristics of track design and processing technology, it is recommended that users must purchase products from the same factory for tablet press and die, and do not frequently change mold manufacturers, but choose factories with strong strength and good processing accuracy. Don't blindly pursue cheap and buy inferior dies, which will eventually damage the tablet press. Selection of tablet type: The correct selection of tablet type is the first step to the success of a tablet die. For example, chewable tablets require high hardness and are easy to chew. Most of them use bevel-edged flat tablets; those that require film coating can choose shallow-concave tablets. Because there are no binders and lubricants in the raw materials of Chinese tablets, it requires high pressure when compressing tablets, and the tablet shape is preferably shallow. For tablets with high sugar content, the design of the tablet shape is preferably shallow or flat. The middle mold can use alloy steel or hard alloy. The deep-concave sheet die is easy to damage, so use it as little as possible.

product-PHARMA-TDP-0 Pill Die Lettering Die-img-2

Mold maintenance:

The main contents are cleaning, lubrication and inspection. A. Maintenance during mold installation: 1. The upper and lower surfaces of the mold should be cleaned before installing the mold to ensure that the mold mounting surface and the working table of the press will not be compressed and damage the parallelism of the upper and lower mounting surfaces of the mold in production; 2. After the mold is installed, open the mold and clean all parts of the mold, especially the guide mechanism. For the surface part of the mold, its surface should be cleaned to ensure the quality of the parts;

B. Maintenance in production: 1. Oil the corresponding parts of the mould regularly during production. Such as: the pressing ring
and fillet of the drawing die; the knife edge of the trimming die; the flanging knife block, etc; 2. Clean up the small hole waste
channel of trimming and punching die regularly. C. Maintenance after production: 1. After the end of production, the mold should
be checked comprehensively; 2. Clean the mold completely to ensure the cleanliness of the mold; 3. Clean up the waste in the mould
to ensure that there is no waste in the waste box; 4. If it is used for a long time, spray antirust oil after cleaning. If it is
not used for a long time, put it in diesel after cleaning

Design Chart

product-PHARMA-TDP-0 Pill Die Lettering Die-img-3

product-PHARMA-TDP-0 Pill Die Lettering Die-img-4

Product Effect

Packaging & Shipping
