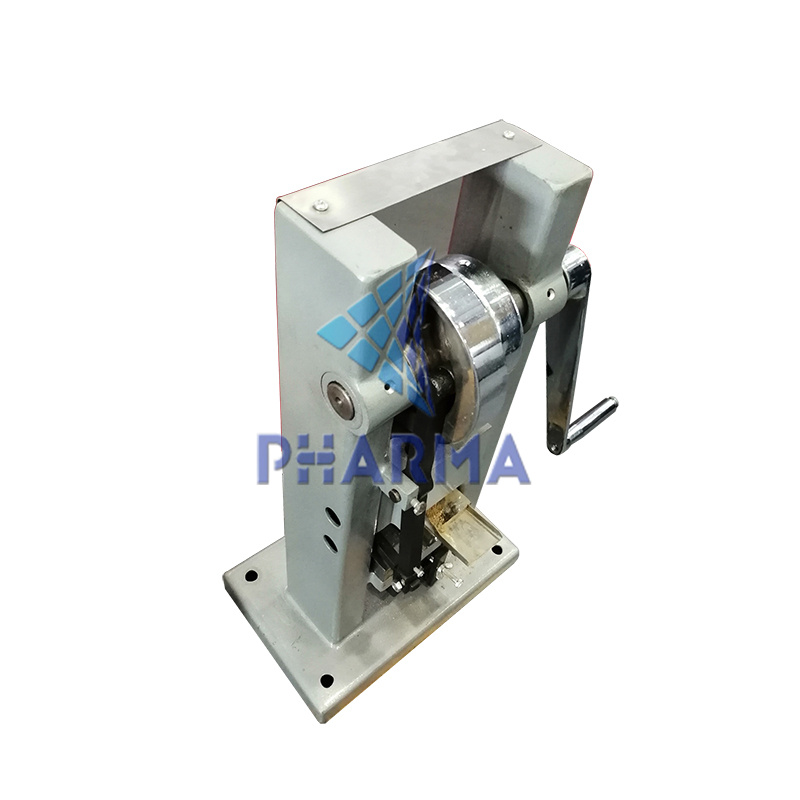

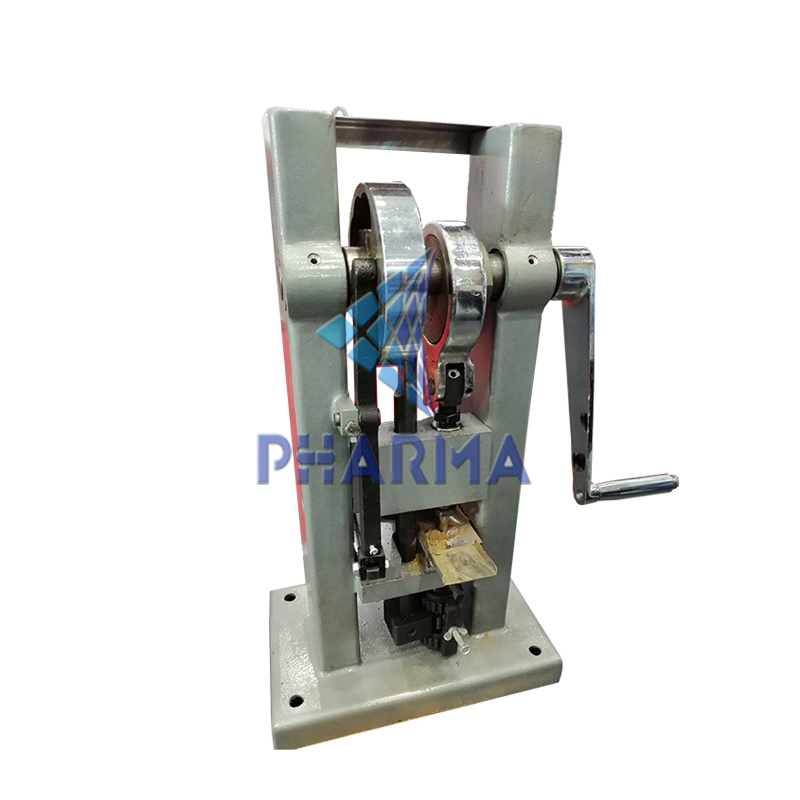

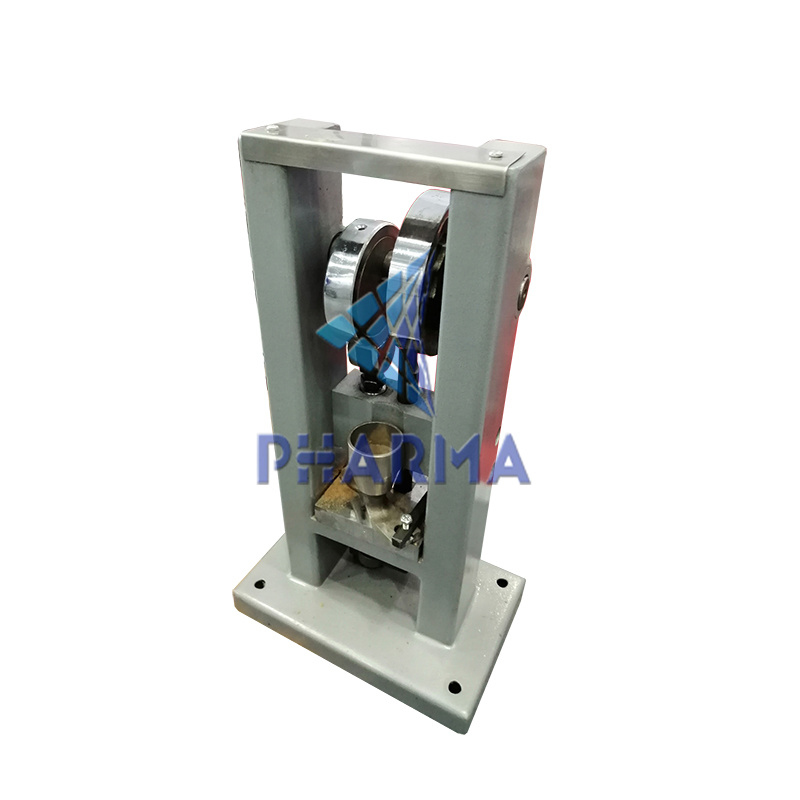

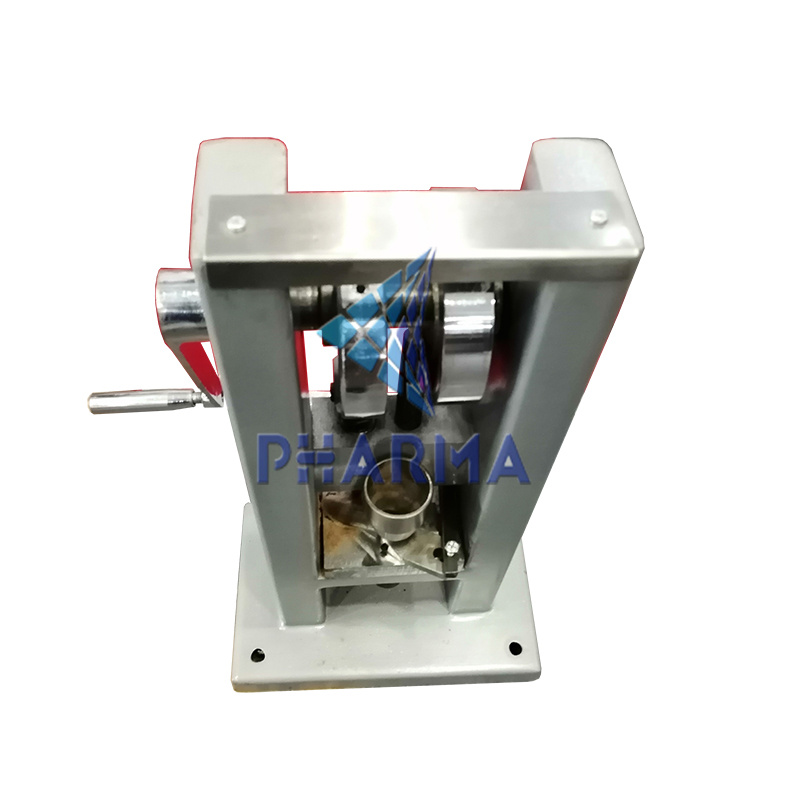

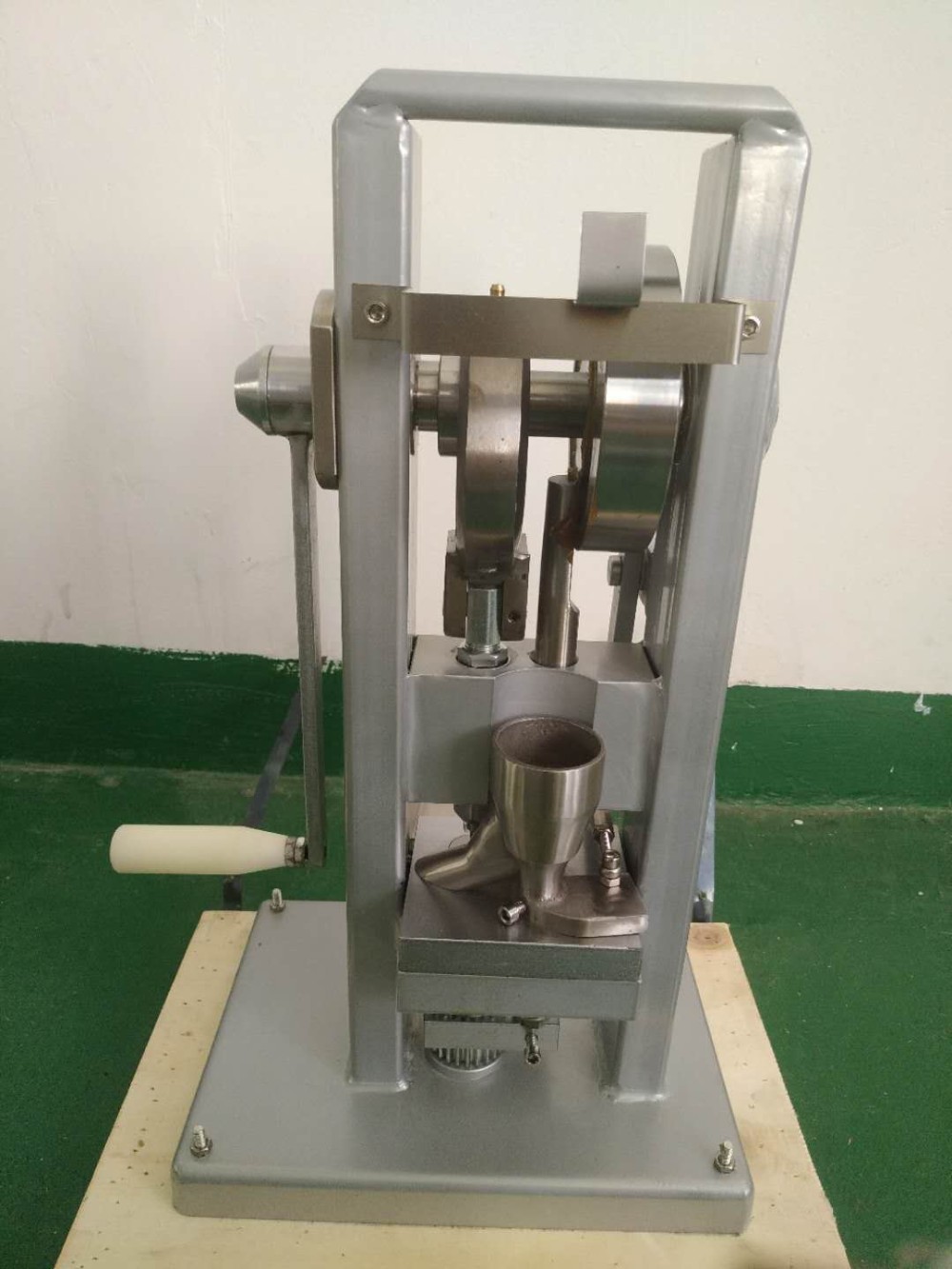

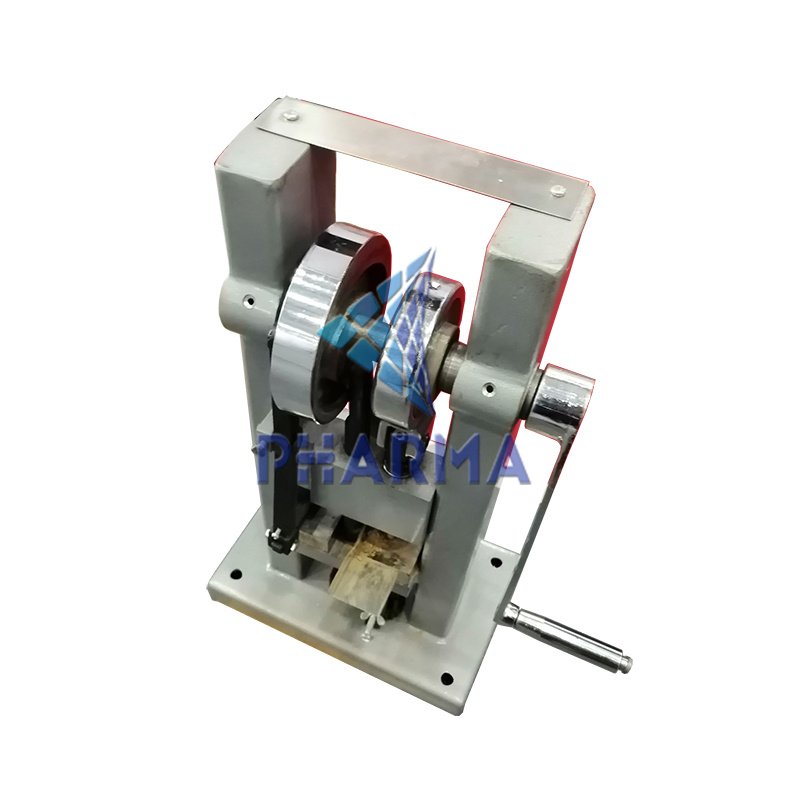

Description: Tdp-0 is a small desktop manual continuous stamping machine, a light single stamping machine. The total weight of the machine is 26kg. The machine has good performance, easy to operate and easy to move. It is very suitable for experiment.
This machine is equipped with only one set of die. The filling depth and pressing thickness of materials can be adjusted, that is, the weight, thickness and hardness of products can be adjusted. Different products can be pressed as long as different dies are replaced.

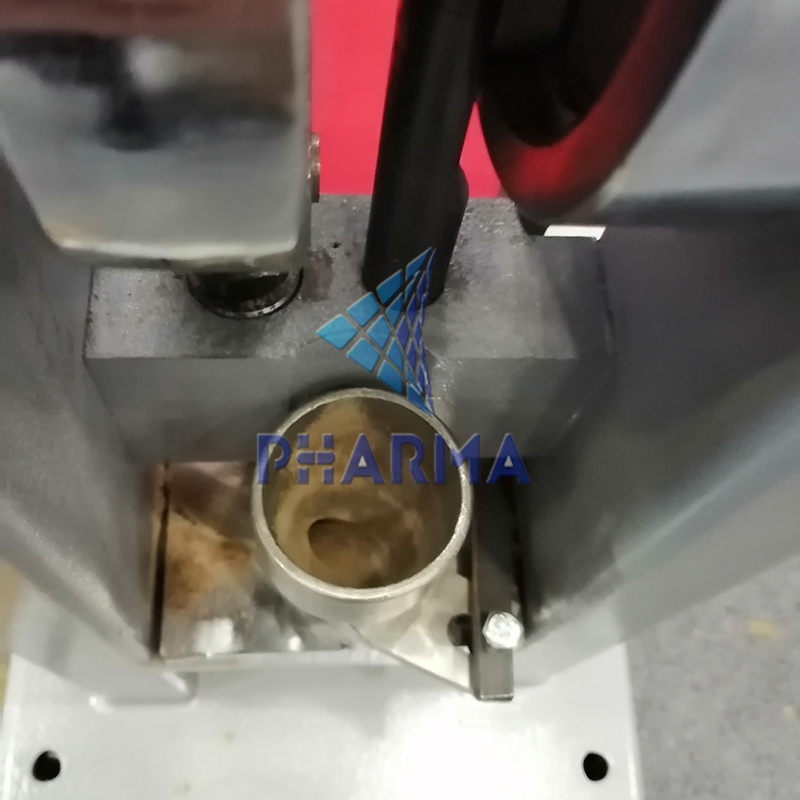

1. The material outlet is made of stainless steel, and the surface is smooth, which can effectively reduce the problems of edge missing, crack and deformation caused by tablet discharging
2. All kinds of stamping dies can be customized and installed, which is simple and convenient. The filling depth and tablet thickness can be adjusted.

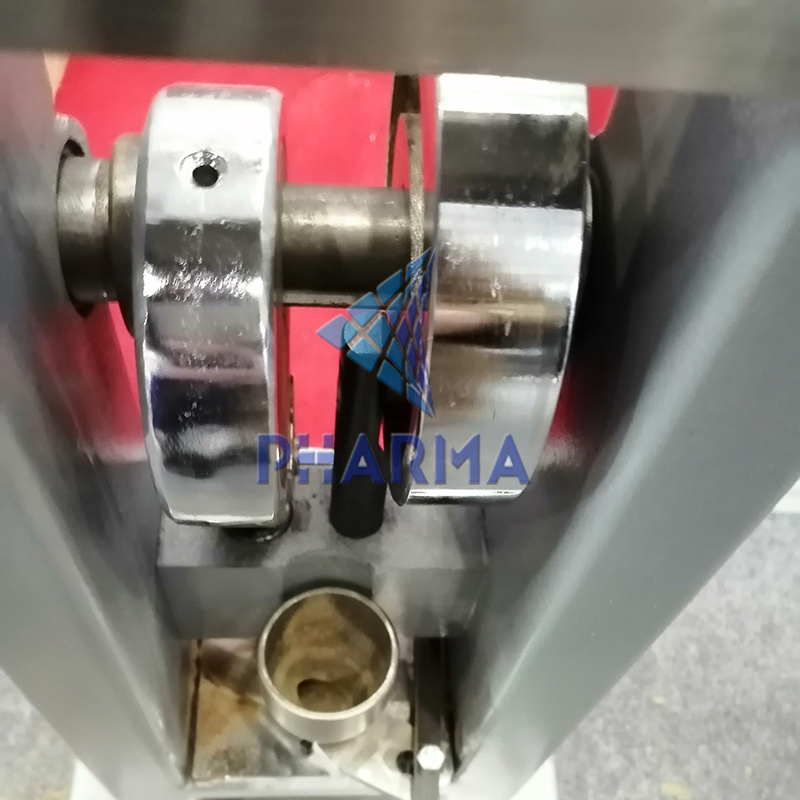

3. When the pressure is adjusted to the left and the punch rod moves downward, the pressure will increase, and the hardness of the pressed tablets will increase; when the pressure is turned to the right, the pressure will decrease and the tablet hardness will decrease
Model
TDP-0
Max. Pressure(KN)
15
Max. Dia. of Tablet(MM)
12
Max.Depth of Fill(MM)
12
Max. Thickness of Tablet(MM)
5
Production Capacity(PC/H)
2000
Machine size(MM)
390x190x480
Net weight(KG)
26
Detail Show
Packaging & Shipping
Related Products

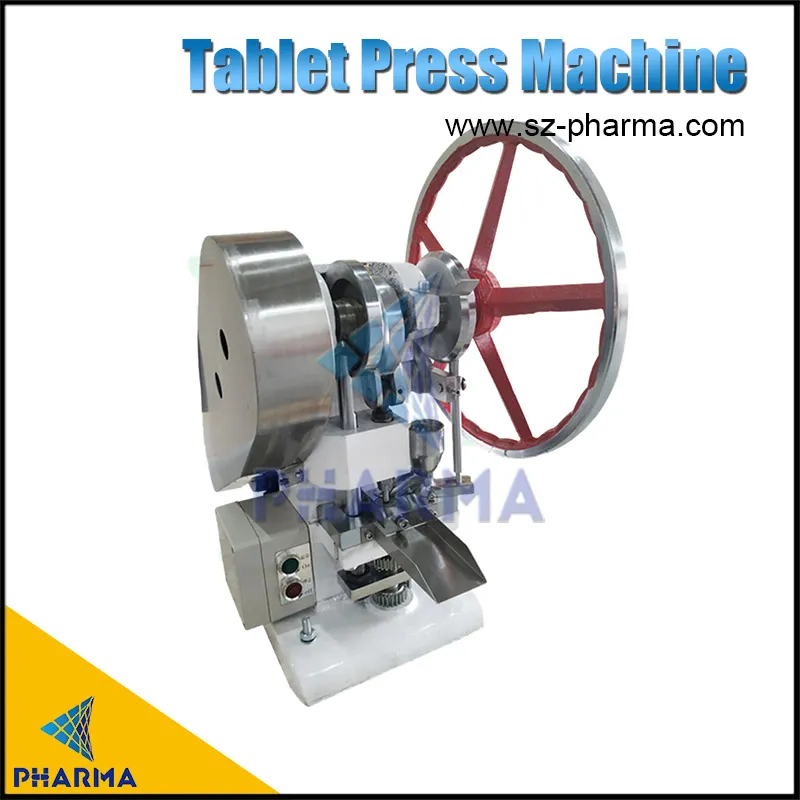

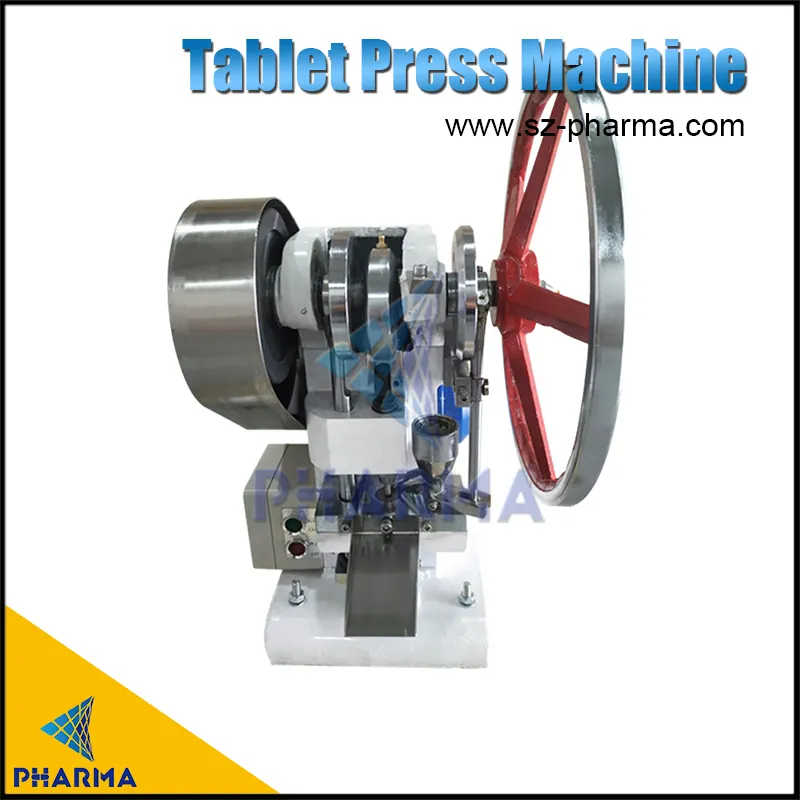

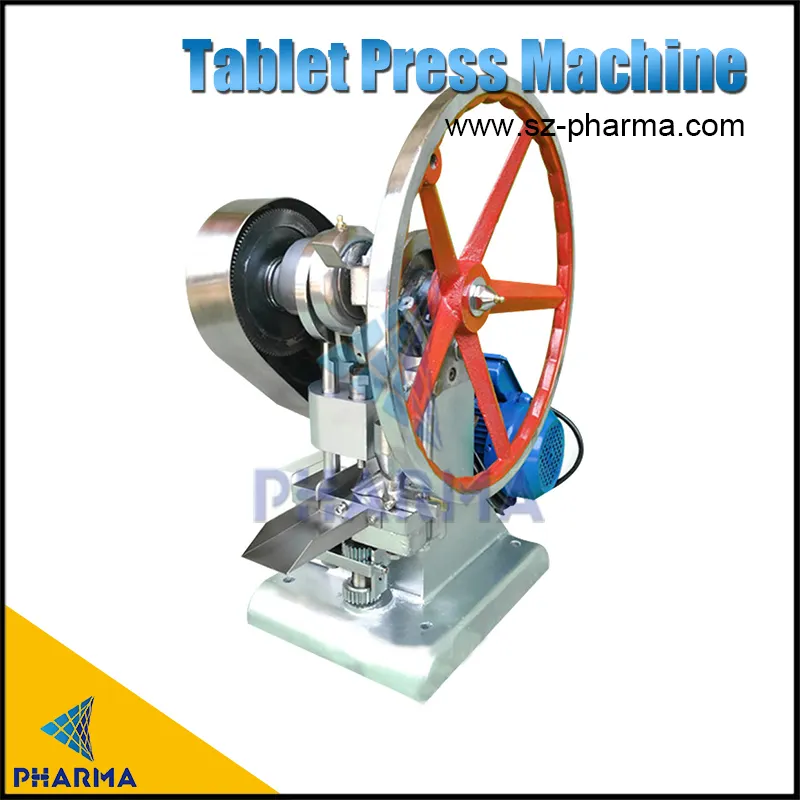

TDP single punch tablet press machine in stock
