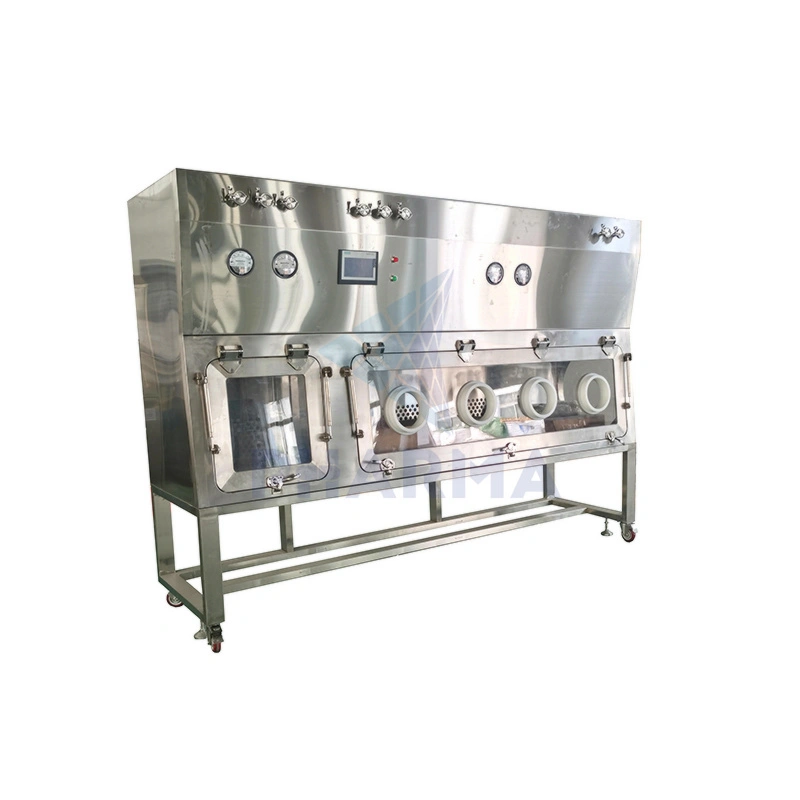

Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 1
Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 2
Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 3
Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 4
Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 5
Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 6
Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 1
Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 2
Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 3
Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 4
Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 5
Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box 6

Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Condition:New
    Applicable Industries:Farms, Clean room, Laboratory
    Weight (KG):500
    Showroom Location:Turkey, Germany, Peru, India, Russia, Thailand, Argentina, Chile, UAE, Australia
    Video outgoing-inspection:Provided
    Machinery Test Report:Provided
    Marketing Type:Customized
    Warranty of core components:1 Year
    Core Components:PLC
    Place of Origin:Jiangsu, China
    Brand Name:SUZHOU PHARMA MACHINERY
    Warranty:1 Year
    Product name:VHP Isolator
    Wind speed:0.36-0.54 m/s
    Material:SS316
    Cleanliness:Class A
    Power:AC220V,50HZ,1.5KW
    Noise:≤68dB
    Light:LED,30w
    Leak rate:≤0.5%/h
    Buffer cabinet:600*600*1100 mm
    Operation cabinet:1050*1050*1500+1300 mm
    Video Description
    Product Description
    product-PHARMA-img
    product-Structure Sterility Test Isolator Sterilizedaseptic Test IsolatorIsolation system with VHP P
    The aseptic isolator is an air purification product that separates the operator from the powder or liquid products in the laboratory or the production process through a physical barrier. The isolator system can create a local A-level environment in a low-cleanliness environment.
    In the biopharmaceutical industry, the physical separation of products and personnel is a key factor. Usually according to the use characteristics of the isolator, the internal and external pressure difference, air flow, construction material, environment, type, etc. of the isolator are designed. According to the purpose of the isolator system, it can usually be designed as a positive pressure isolator and a negative pressure isolator, and the sealing of the isolator can usually be designed as a completely sealed isolator (Isolator) and a restricted access isolation system (RABS). At the same time restricted access isolation system (RABS) can be divided into open restricted access isolation system (O-RABS) and closed restricted access isolation system (C-RABS).
    Specification
    Material
    SS316
    Buffer cabinet
    600mm*600mm*1100mm
    Operation cabinet
    1050mm*1050mm*1500mm+1300mm
    Wind speed
    0.45m/s
    Leak rate
    ≤0.5%/h
    Cleanliness
    Class A
    Noise
    ≤68 dB
    Differential pressure sensor
    0-125PA、0-500PA
    Purification lamp
    LED,30W
    Sterile isolation gloves
    7 inches * 3
    Power
    AC220V,50HZ,1.5KW
    Technical Characteristics
    product-PHARMA-Structure Sterility Test Isolator Sterilizedaseptic Test IsolatorIsolation system wit
    product-PHARMA-img-1
    1.Fully automatic system: automatic leak detection, automatic detection of tightness, automatic control of wind speed, automatic control of indoor and outdoor pressure difference 2.The nano decomposition filter can convert the hydrogen peroxide in the plasma state into water vapor and oxygen, and the residual time is only 10~20min. 3.Fully automatic intelligent control, record the control process, display the working status of each component, report output, and alarm prompt 4.Quickly vaporize liquid hydrogen peroxide into sub-micron particles, and then produce hydrogen peroxide plasma gas through a plasma generator to improve the efficiency of killing microorganisms 5.Imported EC fan with low power consumption, energy saving and high efficiency 6.Designed as a sterilization transfer cabin that can be separated and moved, which can be used in combination with an isolator, or can be sterilized independently 7.Optional online suspended particles, planktonic bacteria detection, real-time detection of particle number, wind speed, pressure difference, temperature and humidity, and the formation of curves and reports. Compliant with computerized certification
    Brief Description Of Work Process
    product-Structure Sterility Test Isolator Sterilizedaseptic Test IsolatorIsolation system with VHP P-1
    product-PHARMA-Structure Sterility Test Isolator Sterilizedaseptic Test IsolatorIsolation system wit-1
    1.Dehumidification-circulate the air in the isolator through the dehumidification device, reduce the relative humidity in the isolator, and improve the efficiency of VHP sterilization. 2.Sterilization-input hydrogen peroxide vapor, and maintain the expected concentration in the isolator, maintain the VHP concentration above 700PPM, and maintain the sterilization time for more than 30 minutes. 3.Residue removal-stop the input of hydrogen peroxide gas, switch the sterilization system to the residue removal system, so that the hydrogen peroxide gas in the isolator circulates through the catalyst for decomposition, and reduces the hydrogen peroxide concentration below 10PPM. Finally, through ventilation, the residual value of hydrogen peroxide is not more than 1ppm. 4.Check the working status-the system is switched to the clean maintenance status. According to the set working wind speed and the positive pressure in the cabin, the air supply volume, return air volume, and fresh air volume are automatically adjusted by frequency conversion to maintain the cleanliness and positive pressure in the cabin. At the same time, the cleanliness of the work area is checked online, and the sampling of planktonic bacteria can also be started manually.
    Related Products
    product-PHARMA-img-2

    Pass box

    The pass box is an auxiliary equipment of the clean room, which is mainly used for the transfer of small items between the clean area and the clean area, and between the clean area and the non-clean area, so as to reduce the number of door openings in the
    clean room.
    product-Structure Sterility Test Isolator Sterilizedaseptic Test IsolatorIsolation system with VHP P-2

    Clean bench

    The clean bench is a highly versatile partial clean bench, which is widely used in electronics, LED, circuit boards, national defense, precision instruments, meters, food, pharmaceuticals and other industries.
    Packing & Delivery
    product-PHARMA-Structure Sterility Test Isolator Sterilizedaseptic Test IsolatorIsolation system wit-2
    product-PHARMA-img-3
    Company Profile
    Suzhou Pharma Machinery Co.,Ltd. is one of the clean room engineering enterprises with the longest professional development, the earliest market-oriented operation in China.Our company has been established for 13 years, and has built more than 500 clean room projects all over the world, which has attracted the attention of the industry. With the precipitation of time, our company has been recognized by more people in the same industry, and enterprises from all over the country have come to our company for communicate.

    1.We offer projects as per GMP regulations. As being pioneers in this field, the solutions from our company is readily accepted by the customers.

    2.Our company has a team of experienced personnel to design and installation clean room professionally.

    3.We have the qualifications and experience to provide a comprehensive validation service of clean room to the requirements of all the current standard.
    product-Structure Sterility Test Isolator Sterilizedaseptic Test IsolatorIsolation system with VHP P-3
    product-PHARMA-Structure Sterility Test Isolator Sterilizedaseptic Test IsolatorIsolation system wit-3
    product-PHARMA-img-4
    product-Structure Sterility Test Isolator Sterilizedaseptic Test IsolatorIsolation system with VHP P-4
    FAQ
    1.Does the clean room cost include installation and freight?
    We will quote EXW,CIF or CFR price for reference. The quote will show the installation fee and freight according to your address.

    2.How does a clean room work?
    A clean room provides a controlled, isolated environment for handling contamination ­sensitive substances or for protecting the exterior environment from dangerous substances in the controlled area. The density of sub­micron and larger airborne particle contamination inside a clean room is kept within tightly controlled limits by forcing clean, filtered air into the clean room.

    3.Can I get special design and function?
    Yes, We are very pleased to be able to provide you with new designs, or to manufacture according to your drawings.

    4.How can you guarantee high level manufacturing process and installation?
    We are professional suppliers for more than 13 years.We have the best designers,engineers.We will design and manufacture according to the standards of the cleanrooms. We have full experience installation workers, they can make perfect buildings with professional skills.

    5.What industry of clean room you can supply?
    Hospital, laboratory, pharmaceutical, medical, electronic, biological, food and beverage, cosmetics industry,etc.

    6.What products does your company specialized in?
    Our company specialized in clean room turnkey projects, prefab houses, and air clean equipments.
    This product can flexibly adapt to the changing working requirements. It can meet the specific needs and workload. The use of this product ensures the division of labor. Workers can stipulate and specific roles of which they do with the use of this product.
