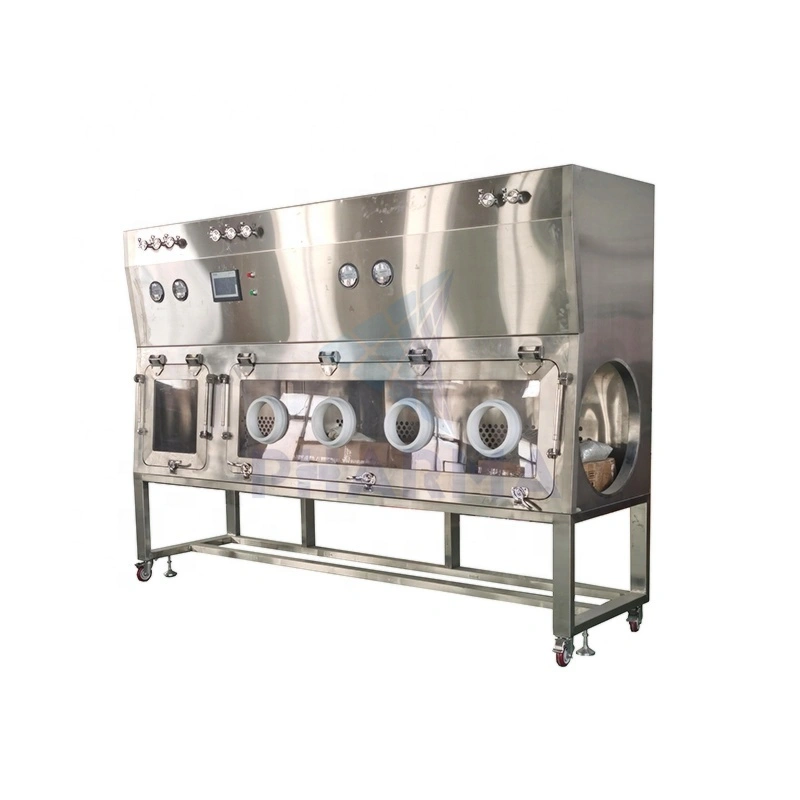

Sterillity testing isolator specifications for Pharmaceutical factory-PHARMA

Related Products

Stainless Steel Aseptic Isolator for Inspection/Feeding/API/Weighing

Clean room laboratory equipment sterile isolator

Pharmaceutical Laboratory Test Isolator

Structure Sterility Test Isolator Sterilized/aseptic Test Isolator/Isolation system with VHP Pass Box

Product Information
Company Profile

Overview

Quick Details

Condition:New

Applicable Industries:Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Food & Beverage Shops, Other, cleanroom

Weight (KG):350

Showroom Location:Canada, Turkey, United Kingdom, United States, France, Germany, Viet Nam, Philippines, Brazil, Saudi Arabia, Pakistan, Spain, Thailand, Kenya, Argentina, Chile, UAE, Colombia, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Marketing Type:New Product 2021

Warranty of core components:1 Year

Core Components:PLC, Bearing, Gearbox, Motor

Place of Origin:Jiangsu, China

Brand Name:SUZHOU PHARMA MACHINERY

Warranty:1 Year

Power Supply:AC220-380±38V/50Hz

Touch Screen Size:7"

Airflow Direction:Laminar flow

Temp.Accuracy:0.1℃

Velocity:0.36 -0.54m/s

Max.Power Consumption:3000W-4000W

RH Accuracy:0.10%

Pressure Accuracy:0.1Pa

Material:ss304

Filtration efficiency:99.99%@0.3um H13-H14

Product Description

A sterile isolator is an effective way to reduce the risk of false positives in a sterile test. A sterile test isolator can be
placed in a Class C or D environment, resulting in a significant reduction in the QC laboratory environment and a simplified of the clothes and other environments.

Application

Uses: sterile detection, high sensitivity, high activity of the material sampling, weighing,packaging, etc., on the material and the operator double protection.

Specifications

1. Stainless steel and tempered glass composed of hard wall structure, the internal environment for the dynamic A-level;

2. Use gloves to operate, gloves optional thickening resistant to damage or thin style;

3. Use H14-class high efficiency filter, through the PAO scan leak test;

4. System reserved for hydrogen peroxide (VHP) generator interface and valves, optional hydrogen peroxide steam generator for high levels of sterilization, hydrogen peroxide on the separator air and exposed surface can reach 106 spores Off effect;

5. Through a variety of ways, such as the air chamber, with the RTP system, such as the delivery compartment to achieve the safe entry and exit of goods;

6. Built-in power supply can be installed in the isolator, can also be installed with a valve of compressed air connector and
cleaning water connector for water and intake;

7. System with Siemens logic controller (PLC) for fully automated control of pressure, air volume, and with loss of pressure alarm function;

Specification

Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Food & Beverage Shops, Other, cleanroom
Power Supply	AC220-380±38V/50Hz
Size	Operation cabin: W1800D880H2250 Dimensions: W2200D880H2250
Touch Screen Size	7"
Airflow Direction	Laminar flow
Temp.Accuracy	0.1℃
Velocity	0.36 -0.54m/s
Max.Power Consumption	3000W-4000W
RH Accuracy	0.10%
Pressure Accuracy	0.1Pa
Material	ss304
Filtration efficiency	99.99%@0.3um H13-H14
