Stainless steel wall SS304 laminar flow hood for air clean


  • After Warranty Service: Video technical support, Online support

  • Certification: CE ISO GMP

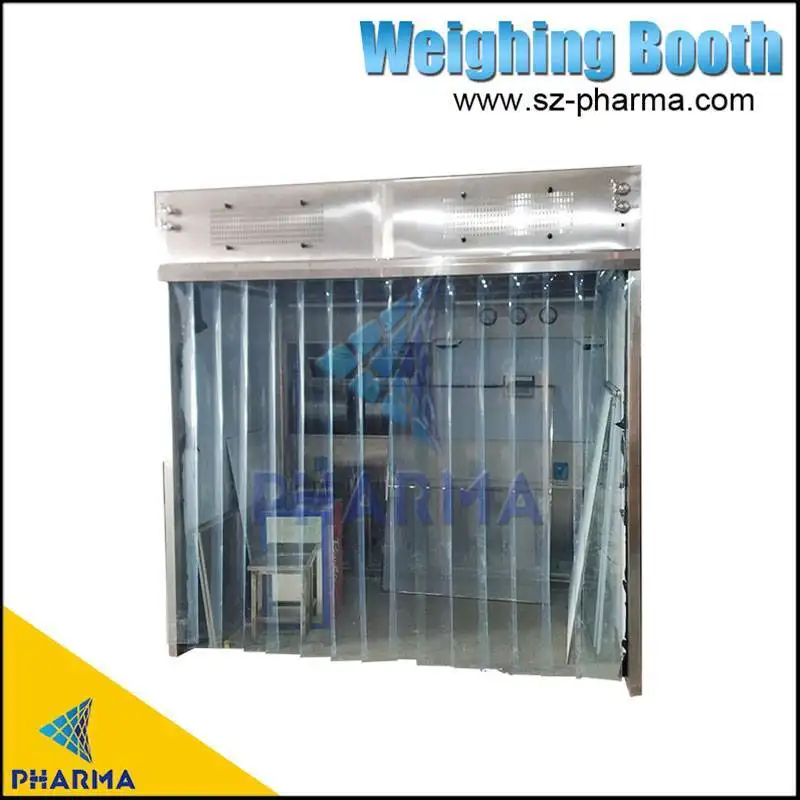

  • Name: Weighing Booth

  • Size: : 1600*3000*2600mm;customize

  • Used: GMP Clean room

  • Application: medical powder


product-PHARMA-img


Limit Discounts

Limit Discounts


product-PHARMA-img


Description

Description


The purification weighing room laminar flow hood is made of imported environment-friendly stainless steel plate which is never rusty, corrosion-resistant, light and solid. The box adopts golden section proportion point design. The purification laminar flow hood is beautiful and generous. The ultra-thin body thickness is only 20cm, and the total thickness of high efficiency filter is not more than 29cm. The weight is only 30kg, which saves space, facilitates construction, installation and daily maintenance.


product-PHARMA-img
Characteristics

The imported anti-static multi wing turbine energy-saving fan has the advantages of ultra-low noise, uniform wind pressure diffusion, uniform and stable wind speed on the outlet surface, low power consumption, low operation cost, and long service life of more than 60000 hours. The fan adopts three gear speed regulation, and the circuit adopts electrical switch control, so the control is safe and stable; and the centralized control function is preset.




Such as: filter type, box material change. The humanized design unit is equipped with stainless steel handle, which makes the handling and installation more convenient and fast; The purification laminar flow hood has a wide range of applications. Purification laminar flow hood is suitable for all kinds of clean rooms from grade 10.000 to grade 10, and can be assembled into ultra clean production line, clean workbench, clean shed, dust-free wardrobe, etc.

Technical Parameters

Technical Parameters


ModelPH-W series
Internal Size (W*D*H)1600*3000*2600    12000*3000*2600       I 2500*3000*2600
External Size (W*D*H)1500*2400*2000    1900*2400*2000       2500*2400*2000
Class/Air FlowISO5 0.45±20%m/s
Pre-filterG4 (90%@5um)
Med-filterF8 (85%~95%@1~5um)
HEPA filterH14(99.995-99.999%@0.3)
Power Supply380V/50Hz
Control ModeVFD Control/Simens PLC Control
Rated Power3kW  4kW   5kW
Total/Exhaust Volume8000/800(m3/h)   110000/1000(m3/h)  | 13000/1300
UV LightOptional
Light Intensity2300Lx
NoseM70dB (A)
Different Pressure Gauge(3 nos.)0-60Pa/0-250Pa/0-500Pa
SocketP66/Qty.4
MOCSUS304/1.2mm

Installation

Installation


product-PHARMA-Stainless steel wall SS304 laminar flow hood for air clean-img

product-PHARMA-img


product-Stainless steel wall SS304 laminar flow hood for air clean-PHARMA-img


product-PHARMA-img-1


product-PHARMA-img-1

product-PHARMA-img-1

product-PHARMA-Stainless steel wall SS304 laminar flow hood for air clean-img-1


product-PHARMA-img-1
