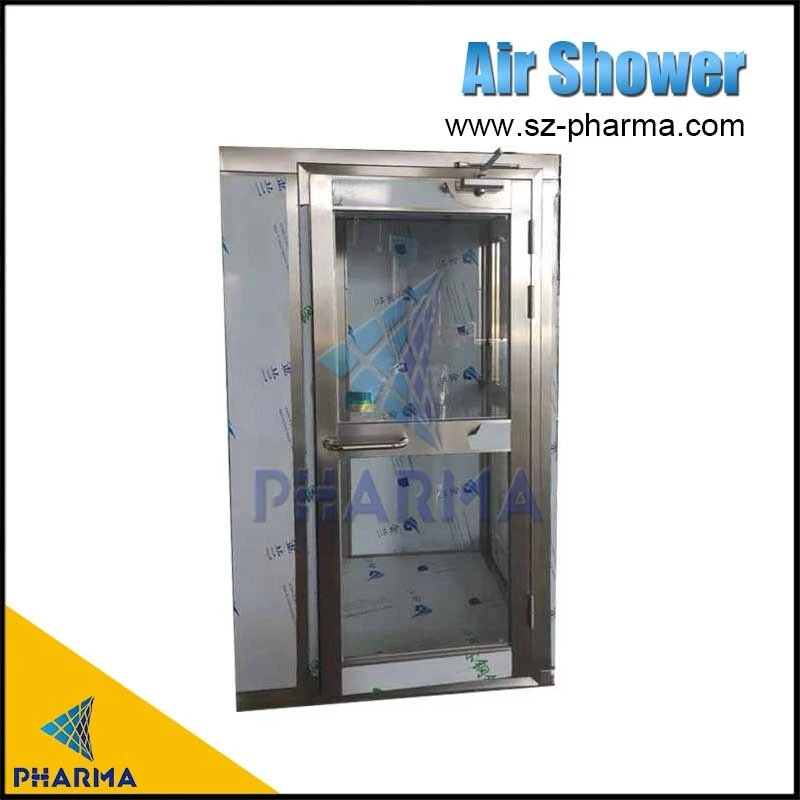

Fine-quality air shower wholesale for food factory

Fine-quality air shower wholesale for food factory

Fine-quality air shower wholesale for food factory

Brand name:
PHARMA CLEAN
Warranty:
1 year
Original:
Suzhou, China
Price:
USD3000
Payment:
T/T; Cash; Alibaba trade assurance
Delivery Time:
20 work days
Supply Ability:
5000 sets/month
Start Port:
Shanghai
Packing Details:
Carton packing, metal frame; plywood case
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:


  • After Warranty Service: Video technical support, Online support

  • Certification: CE ISO GMP

  • Name: Cleanroom air shower

  • Application: Pharmacy, medical, food industry

  • Blowing: Top, side blowing

  • Used: Hospital: Laboratory; Food workshop

  • Place of Origin: Jiangsu, China

  • Brand Name: sz-pharma

  • Voltage: 110~480V

  • Power: 1KW


product-PHARMA-img


Limit Discounts

Limit Discounts


product-Fine-quality air shower wholesale for food factory-PHARMA-img


Description

Description


This is a kind of local purifying equipment, fixed on the partition between clean room and unclean room. It is used for shower and removing dust when personnel or objects entering into clean area. Effectively reduce dust source from entering into clean area after used, and keep clean area in normal working state. Shower way: single-side shower, double-side shower, three-side shower, top shower.

Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.


product-PHARMA-img

Main Features


1. Photoelectric control, automatic shower.

2. Circulated air design keeps shower area clean in non-shower state.

3. Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.

4. Made as negative pressure and anti-exploding air shower according to users' requirement.


product-PHARMA-Fine-quality air shower wholesale for food factory-img


product-PHARMA-img
product-PHARMA-img
product-PHARMA-img-1

Structure configuration

1. Automatic control, the single person single blowing shower room system adopts PLC intelligent control means, and the LED display screen on the control panel can correctly display the operation state of air shower, the interlocking state of double doors, the progress of air shower cycle and the delayed door opening state. It is equipped with photoelectric sensor, one-way channel air shower room, which enters from the non clean area. After closing the door, the infrared sensor will blow the shower. After blowing the shower, the door is locked, and you can only go out of the air shower room from the door;


2. Soft key touch time relay on the main board of single person single blowing shower room, LED display and setting of shower time, adjustable in the range of 10-99s, and the shower time can be adjusted according to the difference of the external environment of the shower room;


3. Modular structure, single person single blowing shower box adopts modular design scheme;


4. High performance, high sealing, imported electronic components, stable and reliable operation performance, advanced noise reduction and mute device system and EVA sealing material, high sealing performance.



Technical Parameters


ModelPH-1300-P1PH-1300-P1PH-1300-P2PH-1300-P3
External dimension W×D×H(mm)1300×1000×21001300×1500×21001300×2000×21001300×3000×2100
Internal Dimensions W×D×H(mm)800×930×1960800×1430×1960800×930×1960800×930×1960
Speed25~27 (m/s)
Nozzle No.12 pieces18 pieces24 pieces36 pieces
StructureCabin: Pre-painted cold work steel sheet; Stainless steel 304
Door:  5mm glass and built-in automatic door closer
LightingLED, built-in type
Dust Collection EfficiencyOver 99.99% 0.3μm D.O.P TEST
HEPA Dimension ×Quantity595×595×80×2pcs595×595×80×2pcs595×595×80×4pcs595×595×80×4pcs
Showering Time0-99s adjustable(FACTORY SETTING 10S)
Power Supply380V 50Hz, 3Phase/220V 60Hz 1Phase
