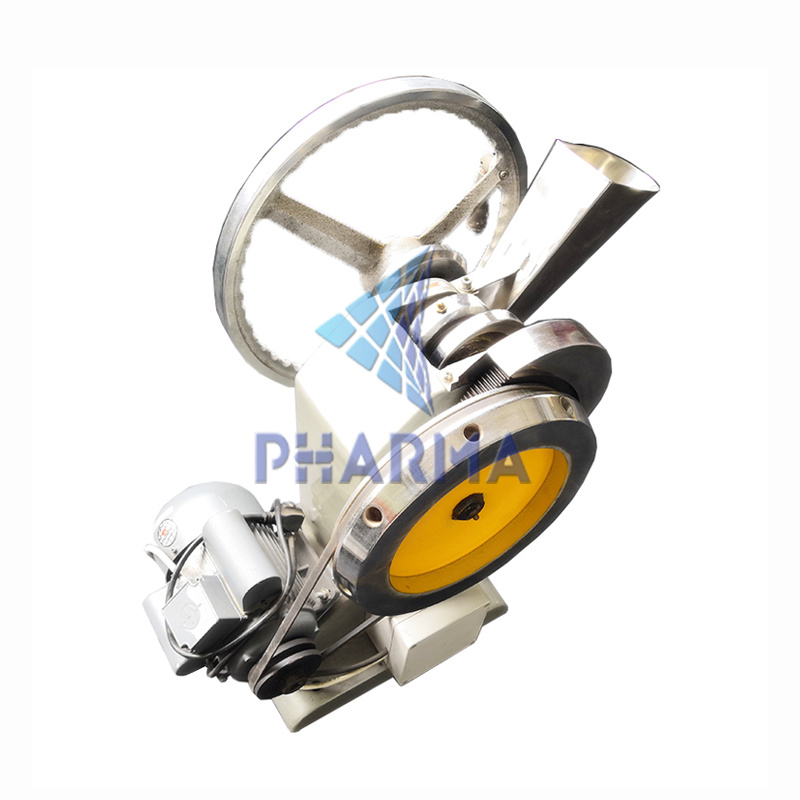

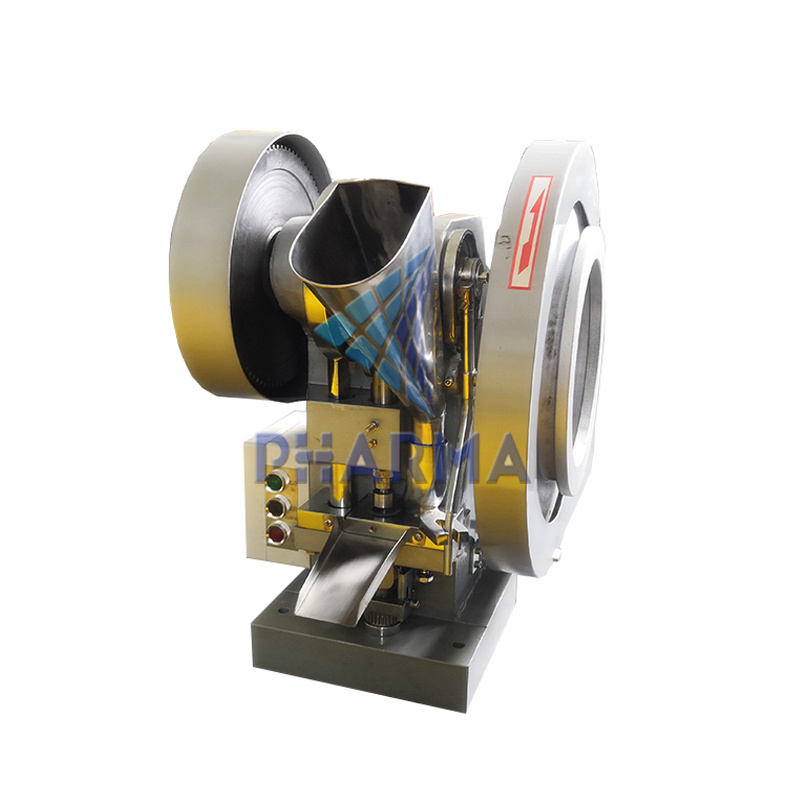

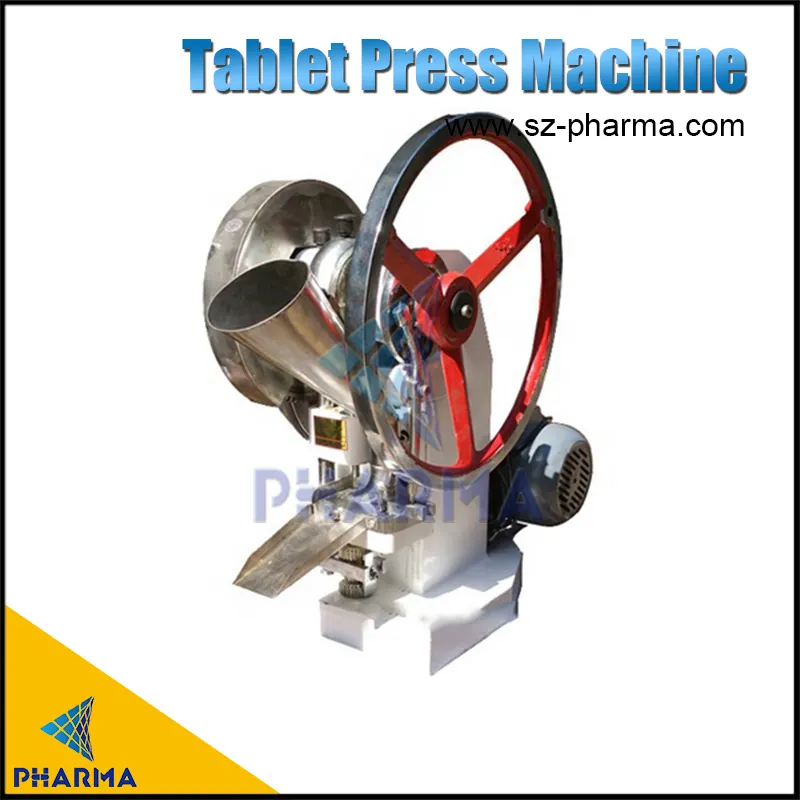

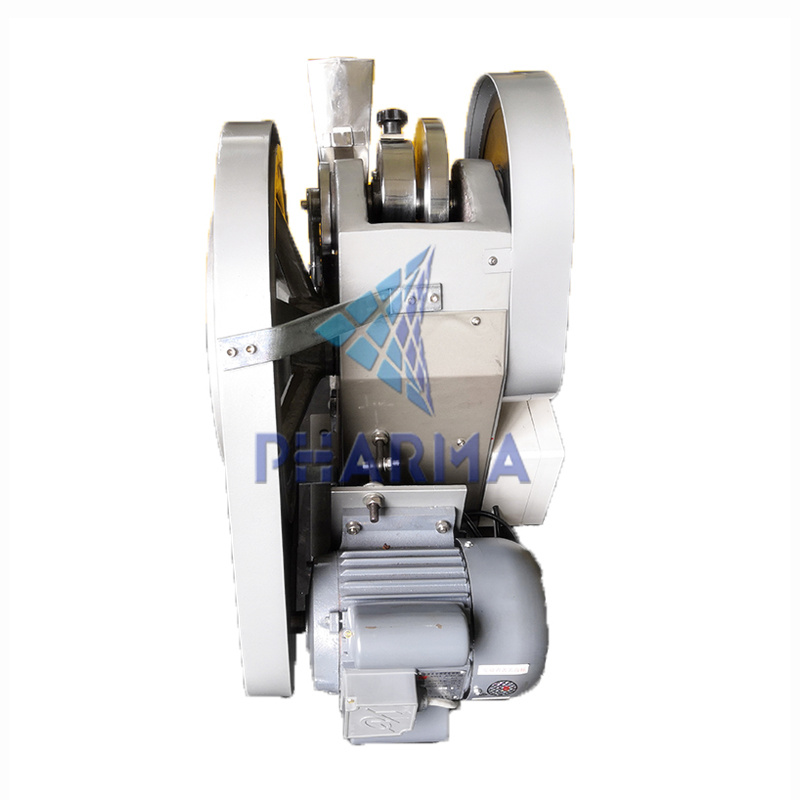

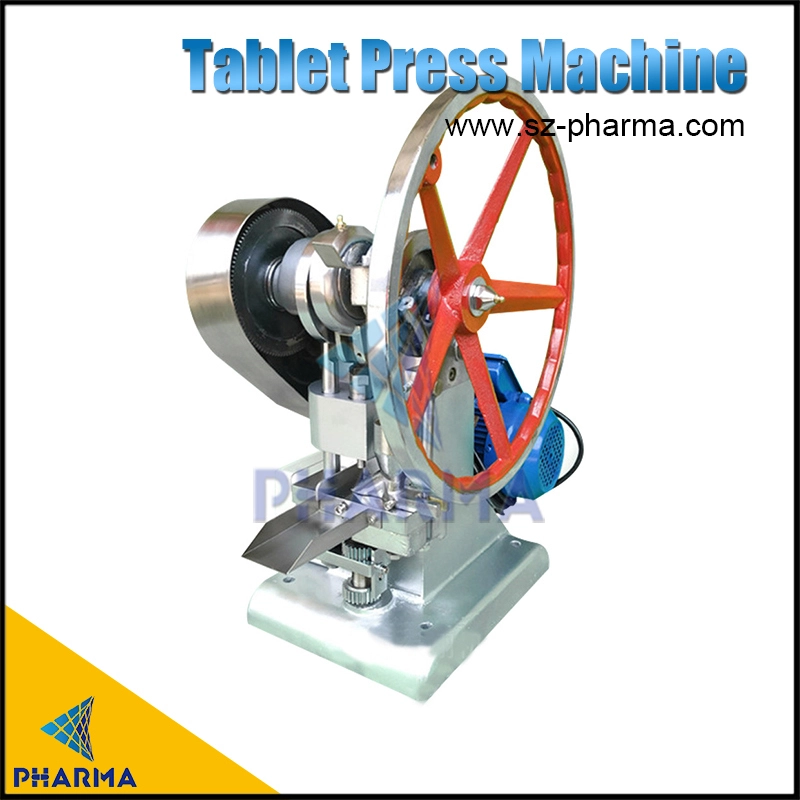

Small Desktop Tdp 5 Single Punch Tablet Press Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model | TDP1.5 | TDP5 | TDP6 |
| Max. Pressure(KN) | 15 | 50 | 60 |
| Max. Dia. of Tablet(MM) | 12 | 20 | 25 |
| Max.Depth of Fill(MM) | 12 | 17 | 17 |
| Max. Thickness of Tablet(MM) | 5 | 7 | 7 |
| Production Capacity(PC/H) | 5000 | 4500 | 3000 |
| Motor | 550w 1400r/min | 750w 1400r/min | 1100w 1400r/min |
| Machine size(MM) | 570x380x630 | 650x440x800 | 580x600x700 |
| Net weight(KG) | 92.5 | 125 | 160 |
This machine is used to press all kinds of granular raw materials into tablets, as well as is used widely in making small lots of tablets, sugar tablets, calcium tablets and heterogeneous tablets in pharmaceutical, chemical industry, foodstuff factory and science research unit of hospital.It is a type of mini desktop electric tablet press that is operated by electricity, as well as be waved in hand; it fixed a set of die, which is used for pressing different kinds of granular raw materials into round tablet.
The filling depth of material, pressure and thickness of tablets are adjustable.
SUZHOU PHARMA MACHINERY CO.,LTD. actively promote the quality management system for Clean Room.
SUZHOU PHARMA MACHINERY CO.,LTD. has a professional Clean Room design team, experienced logistics experts, advanced production equipment.
