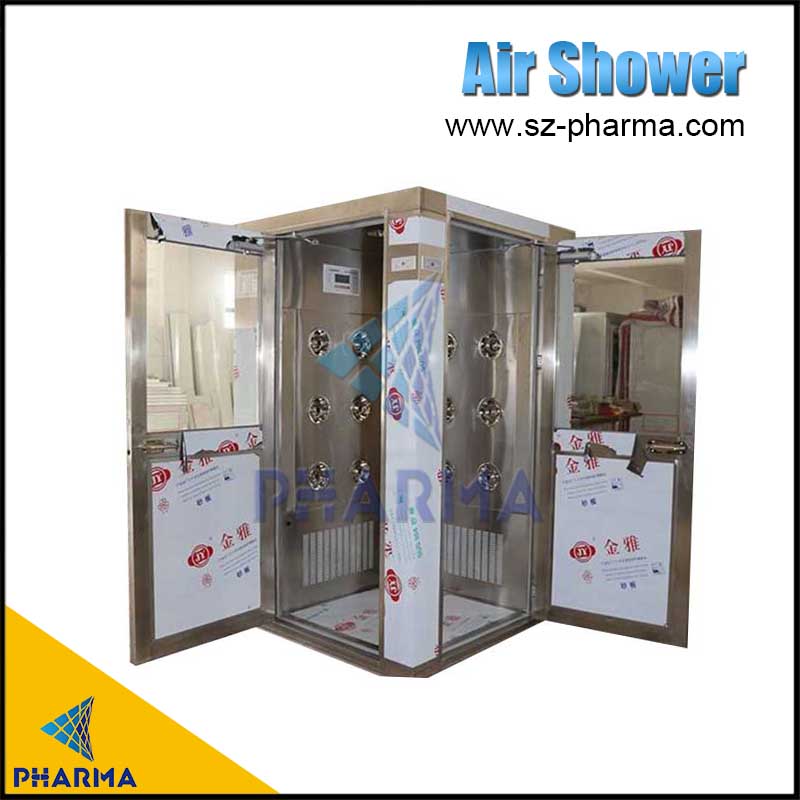

Single person air shower with fingerprint lock
Brand name:
PHARMA CLEAN
Warranty:
1 year
Power
220V,380V
Material
Stainless steel 304/316, painted steel
Original:
Suzhou
Delivery Time:
20 working days
Start Port:
Shanghai port
Packing Details:
Plywood case;pallet
参数暂无数据

Add success, do you want to check your shopping cart?

暂无分享


  • After Warranty Service: Video technical support, Online support

  • Certification: CE

  • Name: Fingerprint lock air shower

  • Application: Pharmacy, medical, food industry

  • Blowing: Double side blowing

  • Used: Hospital: Laboratory; Food workshop

  • Door: 5mm Glass

  • Material: Stainless steel 304/316, painted steel

  • Showering time: 0-99s

  • Size: Customize as client request


product-PHARMA-Single person air shower with fingerprint lock-img


Limit Discounts

Limit Discounts


product-PHARMA-img


Description

Description


The air shower plays an important role in clean room workshop. Most of Suzhou Pharma cleanroom project equip the air shower equipment no matter what industry. For a changing room, after people change the cleanroom clothes and shoes, they will pass the air shower first, blowing 15 seconds in air shower or more time then could enter into the cleanroom.
For ISO8/ISO7 clean room, it also can install between clean area and unclean area. It’s flexible but must as per GMP standard.



product-Single person air shower with fingerprint lock-PHARMA-img

Main Features



1.Photoelectric control, automatic shower.
2. Circulated air design keeps shower area clean in non-shower state.
3. Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.
4. Made as negative pressure and anti-exploding air shower according to users' requirement.
5. Equipped with the device to remove static.


The working principle of the air shower is the internal circulation of the air flow. During the entire air circulation process, the unclean air is sent to the HEPA filter through the fan, and the HEPA filters filtering the dust in the air, then blows out the air.The clean air is blown out through the air shower nozzle, and the wind blown by the nozzle will blow off the dust on the surfaceof people/objects, and then bring the blown dust to the primary filter, thus forming an airflow cycle.

product-PHARMA-img
product-PHARMA-img
product-PHARMA-img
product-PHARMA-Single person air shower with fingerprint lock-img-1

Technical Parameters

Technical Parameters


ModelSZPH001-F
External dimension W×D×H(mm)1200*1000*2180
Internal Dimensions W×D×H(mm)750*900*1970
Identification methodfingerprint lock
LightingLED light T8
Dust Collection Efficiency≥99.99%@0.3μm
HEPA Filter ×QuantityHEPA:H13/ H14x2 piece
Showering Time0-99s
Power Supply380V 50Hz
