PHARMA operation room door for wholesale for chemical plant
After Warranty Service:Video technical support, Online support, Field maintenance and repair service
Warranty:1 year
Certification:CE ISO GMP
Height Size: 1500mm or custom
Width Size:1250mm or custom
Open close speed:0.8-1.2m/S
Sealing:Double sealing of the track

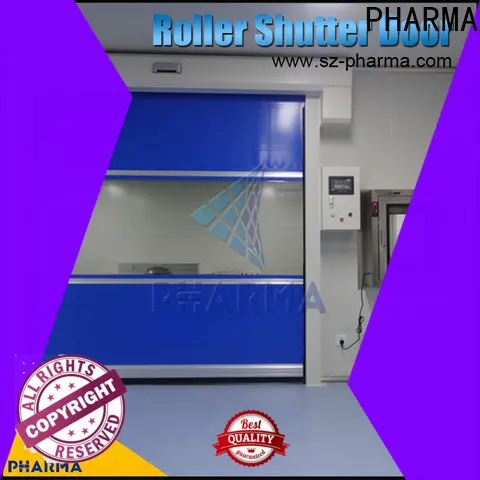

Name:Roller Shutter Door
Frame material:Galvanize
Type: Entry Doors
Limit Discounts
Description
Rolling shutter door is a kind of door which is connected in series with multi joint movable door pieces. In the fixed slide way, the rolling shaft above the door is taken as the center to rotate up and down the door. The rolling shutter door has the same function as the wall, which is composed of curtain plate, seat plate, guide rail, support, reel, box, control box, door rolling machine, limiter, lintel, manual quick release switch device, button switch and safety device. It is generally installed in the position where wall separation is inconvenient
Characteristics 1. Anti push device can prevent the door body from being forced to move, which is safe and anti-theft. 2. (optional) the humanized design of automatic rebound in case of obstacles can prevent the collision of vehicle and object when the door body falls down, so that people or vehicles can pass smoothly. The door body i s solid, and can be equipped with (optional automatic alarm device) and anti push device to prevent forced prying of the door body, continuous alarm, security and anti-theft. 3. According to the different characteristics of the building, three different installation methods can be selected, including internal installation, external installation and middle decoration. After opening, the rolling curtain is rolled up on the upper part of the door body, which saves the internal space of the garage, and does not bring soil, rain, snow and other debris into the garage, which is beautiful and fashionable. |
Technical Parameters
| Parts | Configuration |
| Door size | W :1250-4000mm H:1500-4000mm |
| Control Unit system | 1/ IP54 2/LED Screen The Engineer visual man-machine dialogue window indicates working status which is easy during the maintenance. LED screen provides full information and enables Intelligent operation,rapidfeedback,user-friendly.3/ Encode Full range absolute limit technology, position close-loop control, multi-turn absolute value encoder |
| Working temperature | 11m/s |
| Anti-wind | 380V 0.75-1.5KW |
| Power | Standard one button control box including emergency control ,optional radar /loop induction/pull rope/remote controller etc. |
| Operation | Frequency conversion control system not only ensures stable door operation but also enable the protection of the Reduction gear and the brake pads ,especially the Reduction gear |
| Curtain material | Transparent PVC strips thickness 1.2-1.5mm Galvanize |
| Frame material | Double sealing of the track, rubber bottom |
| Sealing | 1/Infrared safety sensor: Infrared safety sensor is installed on both sides of the door frame(12 lights or light ice height 600-1800mm) .It makes the door keep open when there is object under the door. If there is object moving during the door closing , it makes the door fully open until no object and closed then. 2/Bottom safety sensor(remote control): It makes the door bounce immediately to the fully open position if there is object under during the door closing which protects the object under or perosonnel from injury . |
