Product Information
Feedback

After Warranty Service: Video technical support, Online support
Certification: CE ISO GMP
Name: Cleanroom air shower
Type: Air shower for clean room
Blowing: Top, side blowing

Used: Hospital: Laboratory; Food workshop
Marketing Type: New Product 2020
Material: Stainless steel 304/316, painted steel
Function: Purification Filter
Size: Customize as client request

PHARMA inexpensive air shower price owner for food factory-1

Limit Discounts

Limit Discounts

PHARMA inexpensive air shower price owner for food factory-2

Description

Description

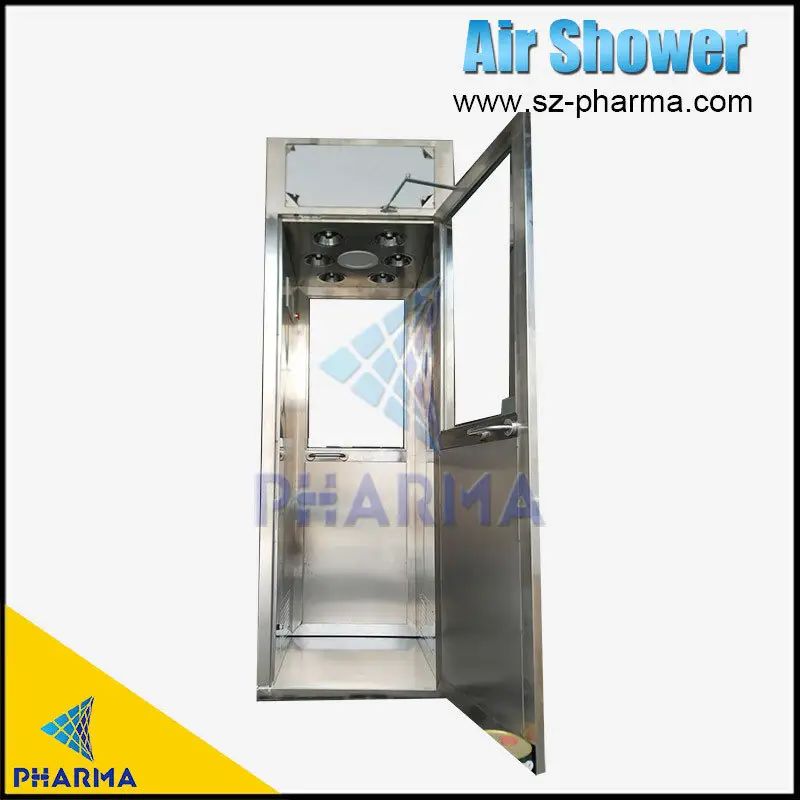

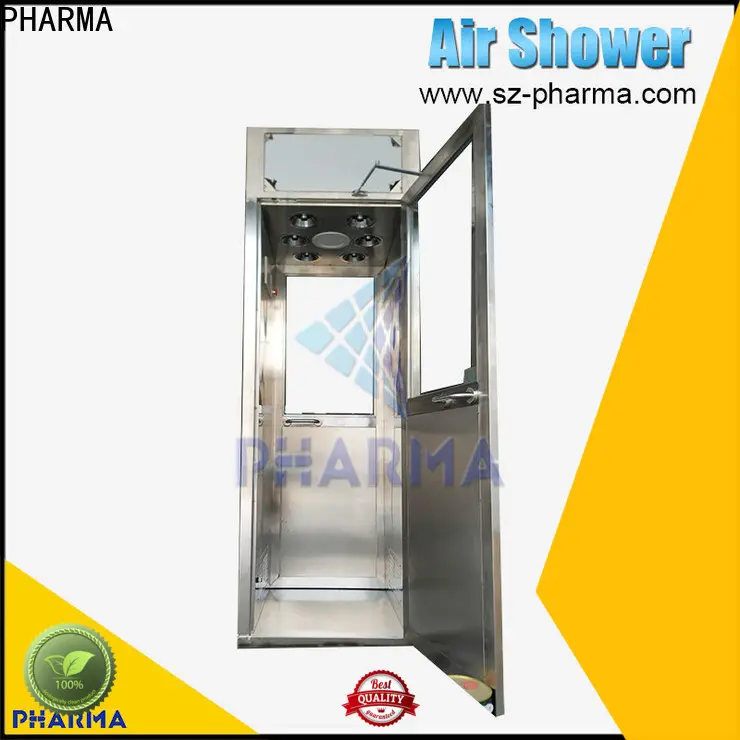

This is a kind of local purifying equipment, fixed on the partition between clean room and unclean room. It is used for shower and removing dust when personnel or objects entering into clean area. Effectively reduce dust source from entering into clean area after used, and keep clean area in normal working state. Shower way: single-side shower, double-side shower, three-side shower, top shower.

Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.

PHARMA inexpensive air shower price owner for food factory-3

Main Features

Photoelectric control, automatic shower.

Circulated air design keeps shower area clean in non-shower state.

Made as negative pressure and anti-exploding air shower according to users' requirement.

Equipped with the device to remove static

Carry on air brake, cushion type and other particular design, manufacturing.

PHARMA inexpensive air shower price owner for food factory-4

PHARMA inexpensive air shower price owner for food factory-5

PHARMA inexpensive air shower price owner for food factory-6

PHARMA inexpensive air shower price owner for food factory-7

Technical Parameters

Technical Parameters

Model	PH-1300-P1	PH-1300-P1	PH-1300-P2	PH-1300-P3
External dimension W×D×H(mm)	1300×1000×2100	1300×1500×2100	1300×2000×2100	1300×3000×2100
Internal Dimensions W×D×H(mm)	800×930×1960	800×1430×1960	800×930×1960	800×930×1960
Speed	25~27 (m/s)
Nozzle No.	12 pieces	18 pieces	24 pieces	36 pieces
Structure	Cabin: Pre-painted cold work steel sheet; Stainless steel 304
Structure	Door: 5mm glass and built-in automatic door closer
Lighting	LED, built-in type
Dust Collection Efficiency	Over 99.99% 0.3μm D.O.P TEST
HEPA Dimension ×Quantity	595×595×80×2pcs	595×595×80×2pcs	595×595×80×4pcs	595×595×80×4pcs
Showering Time	0-99s adjustable(FACTORY SETTING 10S)
Power Supply	380V 50Hz, 3Phase/220V 60Hz 1Phase

Installation

Installation

PHARMA inexpensive air shower price owner for food factory-8

PHARMA inexpensive air shower price owner for food factory-9

PHARMA inexpensive air shower price owner for food factory-10

PHARMA inexpensive air shower price owner for food factory-11

PHARMA inexpensive air shower price owner for food factory-12

PHARMA inexpensive air shower price owner for food factory-13

PHARMA inexpensive air shower price owner for food factory-14

PHARMA inexpensive air shower price owner for food factory-15

r******q

PHARMA air shower price is manufactured using quality raw material and comes in a variety of innovative designs. The product can avoid electrical breakdown of machines that caused by oil mist

e******f

PHARMA air shower price reflects the finest craftsmanship in the industry. The product adopts intelligent electrostatic power control system to maintain a high purification rate

c******h

PHARMA air shower price is manufactured from superior materials using modern technology. The quality of product is officially certified under CE, RoHS and ISO9001:2015

h******w

Our air shower price products cater to different styles of dinning occasions. The product adopts intelligent electrostatic power control system to maintain a high purification rate

j******x

The design of PHARMA air shower price helps create individual highlights. The product is capable of processing a large volume of air flow up to 1500 CMH

z******s

air shower price with the advantage of air shower price is widely applied. The product has an excellent performance in the removal of oil mist, haze, aerosol and smoke
