Focuses On Professional Cleanroom Project And Pharmaceutical Cleanroom Equipment.

PHARMA filter fan unit check now for cosmetic factory 1
PHARMA filter fan unit check now for cosmetic factory 2
PHARMA filter fan unit check now for cosmetic factory 3
PHARMA filter fan unit check now for cosmetic factory 4
PHARMA filter fan unit check now for cosmetic factory 5
PHARMA filter fan unit check now for cosmetic factory 6
PHARMA filter fan unit check now for cosmetic factory 7
PHARMA filter fan unit check now for cosmetic factory 8
PHARMA filter fan unit check now for cosmetic factory 9
PHARMA filter fan unit check now for cosmetic factory 10
PHARMA filter fan unit check now for cosmetic factory 1
PHARMA filter fan unit check now for cosmetic factory 2
PHARMA filter fan unit check now for cosmetic factory 3
PHARMA filter fan unit check now for cosmetic factory 4
PHARMA filter fan unit check now for cosmetic factory 5
PHARMA filter fan unit check now for cosmetic factory 6
PHARMA filter fan unit check now for cosmetic factory 7
PHARMA filter fan unit check now for cosmetic factory 8
PHARMA filter fan unit check now for cosmetic factory 9
PHARMA filter fan unit check now for cosmetic factory 10

PHARMA filter fan unit check now for cosmetic factory

Supply Ability:
300-500 Set/Sets per month
Start Port:
Shanghai
Price:
USD 87-180/Sets
Payment:
T/T; Cash; Alibaba trade assurance
Packing Details:
Carton packing,metal frame;plywood case
Original:
Suzhou, China
Delivery Time:
15-20 days,depending on the quantity
Brand name:
PHARMA CLEAN
Inquiry


  • After Warranty Service:Video technical support, Online support

  • Warranty:1 year

  • Certification:ISO9001, ISO CE

  • Efficiency:99.995%@0.3μm

  • Size:Customized

  • Color:White

  • Medium Material:Paper,glass fiber,cotton

  • Porosity:0.5um, 0.3um

  • Frame:Extruded aluminum,galvanized steel sheet

  • Construction:Panel Filter


PHARMA filter fan unit check now for cosmetic factory 11


Limit Discounts

Limit Discounts


PHARMA filter fan unit check now for cosmetic factory 12


Description

Description

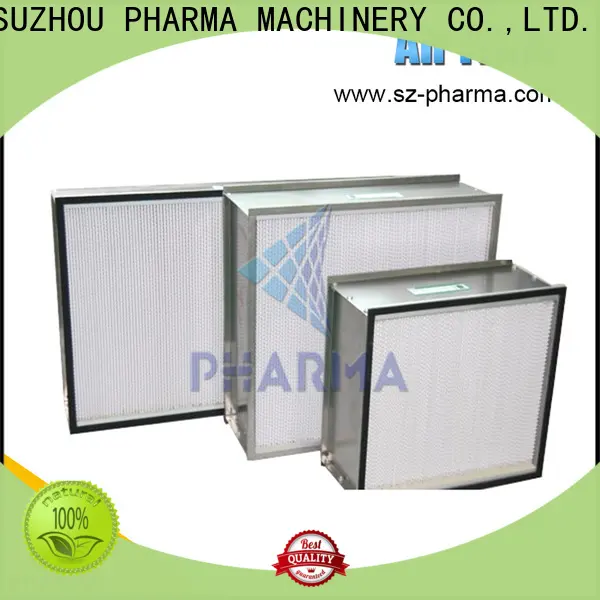

Air filter refers to the air filter device, which is generally used in clean workshop, laboratory and dust free cleanrooms, or used for clean room equipment, air shower, pass box, clean bench, weighing booth, safety cabinet, etc. There are five types of air filter:  primary filter, medium efficiency filter, high and medium efficiency filter and sub high efficiency and high efficiency filter. Different models have different standards and performance.


PHARMA filter fan unit check now for cosmetic factory 13
Characteristics

1. Air filter screen is made of very small organic fibers. The ability to capture particles is stronger, small pore size, large adsorption capacity,small wind resistance, and high filtration accuracy;


2. Filtration efficiency: efficiency varies according to material.


3. According to the equipment's air flow requirements, installation size requirements, filtering efficiency and resistance requirements to selection and design;


4. Application: cleanroom system, air clean equipment, fresh air machine, air conditioning, electronic industry, medical equipment, etc.


5. With functions perfect large scale group control operating system

Technical Parameters

Technical Parameters
StructureDimensionsAirflowEarly resistancRecommended endresistance
Chip290*595*20(mm)1240(CMH)95(Pa)120(Pa)
493*595*20(mm)2110(CMH)
595*595*20(mm)2540(CMH)
290*595*46(mm)1240(CMH)60(Pa)80(Pa)
493*595*46(mm)2110(CMH)
595*595*46(mm)2540(CMH)
Pleated290*595*46(mm)1240(CMH)40(Pa)62(Pa)
493*595*46(mm)2110(CMH)
595*595*46(mm)2540(CMH)


Filter levelFiltration accuracyFiltration efficiency
G1 (EN779)≥5um40%
G2 (EN779)≥5um70%
G3 (EN779)≥5um85%
G4 (EN779)≥5um90%
F5 (EN779)1- 10um35%
F6 (EN779)1-10um45%
F7 (EN779)1-10um65%
F8 (EN779)1-1 0um85%
F9 (EN779)1-1 0um95%
H10 (EN1 8822)≥0.3um90%
H11 (EN18822)≥0.3um99%
H12 (EN1 8822)≥0.3um99.90%
H13 (EN1 8822)≥0.3um99.99%
H14 (EN18822)≥0.3um100.00%

Installation

Installation


PHARMA filter fan unit check now for cosmetic factory 14

PHARMA filter fan unit check now for cosmetic factory 15


PHARMA filter fan unit check now for cosmetic factory 16


PHARMA filter fan unit check now for cosmetic factory 17


PHARMA filter fan unit check now for cosmetic factory 18

PHARMA filter fan unit check now for cosmetic factory 19

PHARMA filter fan unit check now for cosmetic factory 20


PHARMA filter fan unit check now for cosmetic factory 21
