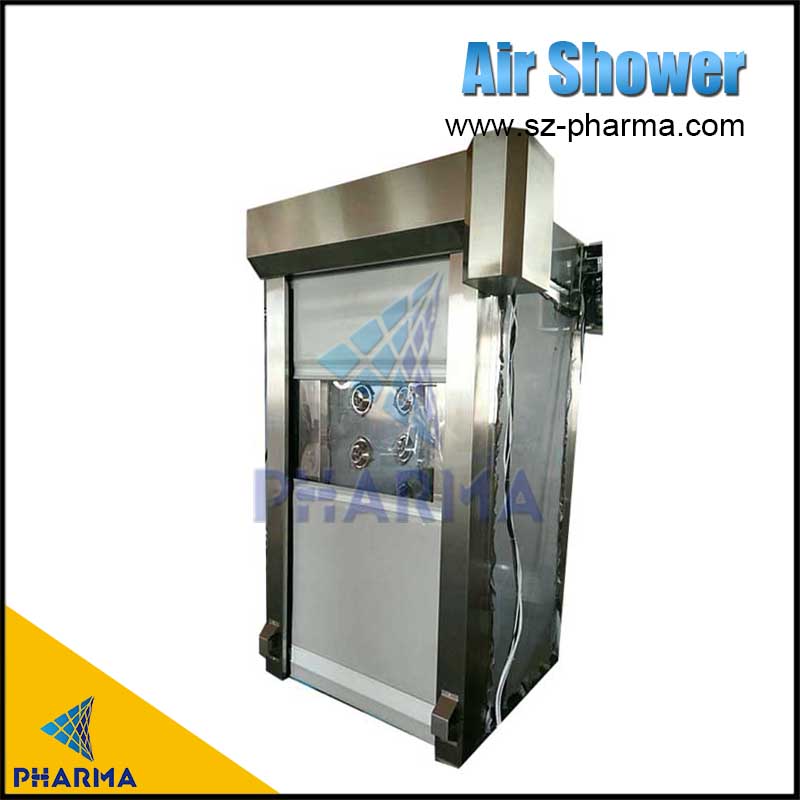

New Aseptic Modular Air Shower Room

Product Information

After Warranty Service: Video technical support, Online support
Certification: CE ISO GMP
Name: Cleanroom air shower
Application: Pharmacy, medical, food industry
Blowing: Top, side blowing

Used: Hospital: Laboratory; Food workshop
Place of Origin: Jiangsu, China
Brand Name: sz-pharma
Voltage: 110~480V
Power: 1KW

product-New Aseptic Modular Air Shower Room-PHARMA-img

Limit Discounts

Limit Discounts

product-PHARMA-img

Description

Description

This is a kind of local purifying equipment, fixed on the partition between clean room and unclean room. It is used for shower and removing dust when personnel or objects entering into clean area. Effectively reduce dust source from entering into clean area after used, and keep clean area in normal working state. Shower way: single-side shower, double-side shower, three-side shower, top shower.

Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.

Main Features

Photoelectric control, automatic shower.

Circulated air design keeps shower area clean in non-shower state.

Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.

Made as negative pressure and anti-exploding air shower according to users' requirement.

product-PHARMA-New Aseptic Modular Air Shower Room-img

product-New Aseptic Modular Air Shower Room-PHARMA-img-1

Structure configuration

1. Automatic control, the single person single blowing shower room system adopts PLC intelligent control means, and the LED display screen on the control panel can correctly display the operation state of air shower, the interlocking state of double doors, the progress of air shower cycle and the delayed door opening state. It is equipped with photoelectric sensor, one-way channel air shower room, which enters from the non clean area. After closing the door, the infrared sensor will blow the shower. After blowing the shower, the door is locked, and you can only go out of the air shower room from the door;

2. Soft key touch time relay on the main board of single person single blowing shower room, LED display and setting of shower time, adjustable in the range of 10-99s, and the shower time can be adjusted according to the difference of the external environment of the shower room;

3. Modular structure, single person single blowing shower box adopts modular design scheme;

4. High performance, high sealing, imported electronic components, stable and reliable operation performance, advanced noise reduction and mute device system and EVA sealing material, high sealing performance.

Technical Parameters

Model	PH-1300-P1	PH-1300-P1	PH-1300-P2	PH-1300-P3
External dimension W×D×H(mm)	1300×1000×2100	1300×1500×2100	1300×2000×2100	1300×3000×2100
Internal Dimensions W×D×H(mm)	800×930×1960	800×1430×1960	800×930×1960	800×930×1960
Speed	25~27 (m/s)
Nozzle No.	12 pieces	18 pieces	24 pieces	36 pieces
Structure	Cabin: Pre-painted cold work steel sheet; Stainless steel 304
Structure	Door: 5mm glass and built-in automatic door closer
Lighting	LED, built-in type
Dust Collection Efficiency	Over 99.99% 0.3μm D.O.P TEST
HEPA Dimension ×Quantity	595×595×80×2pcs	595×595×80×2pcs	595×595×80×4pcs	595×595×80×4pcs
Showering Time	0-99s adjustable(FACTORY SETTING 10S)
Power Supply	380V 50Hz, 3Phase/220V 60Hz 1Phase
