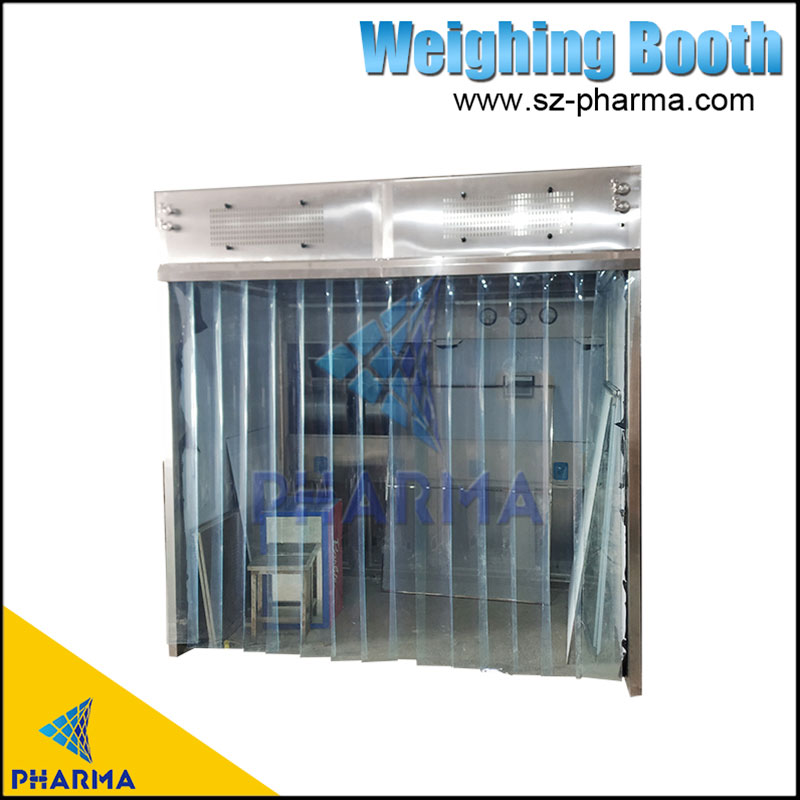

Negative Pressure Sampling Weighing Booth
After Warranty Service:Video technical support, Online support, Field maintenance and repair service
Warranty:1 year
Voltage:110V/ 220V /380V 50-60HZ
Application: Cleanroom, dust free cleanroom, clean booth, laboratory, medical workshop, food factory
Size:Customized
Rated Power: 3KW
Feature: Automatic Control
Material: SUS 304
Certification:CE ISO
UV Light:Optional
Description
Weighing booth is a dedicated purification equipment for sampling, weighing and analysis. It can contain powders and particles within work area and prevent operator from inhaling them
Characteristics 1: Modular. Easy-to clean rigid design with minimal joints 2: HEPA/ULPA Gel-seal down flow filter are replaceable from within the booth. Gel-seal is more reliable than conventional gasket seals 3: Voltage-compensating blowers ensure stable air flow. 4: Magnehelic Gauges provide convenient and reliable means for monitoring gauges air flow and filter condition. |
Technical Parameters
| Model | PH-W series | ||
| Internal Size (W*D*H) | 1600*3000*2600 | 2000*3000*2600 | 2500*3000*2600 |
| External Size (W*D*H) | 1500*2400*2000 | 1900*2400*2000 | 2500*2400*2000 |
| Class/Air Flow | ISO5 0.45±20%m/s | ||
| Pre-filter | G4 (90%@5um) | ||
| Med-filter | F8 (85%~95%@1~5um) | ||
| HEPA filter | H14 (99.995-99.999%@0.3) | ||
| Total/Exhaust Volume | 8000/800(m3/h) | ||
| Control Mode | VFD Control/Simens PLC Control | ||
| UV Light | Optional | ||
Installation
