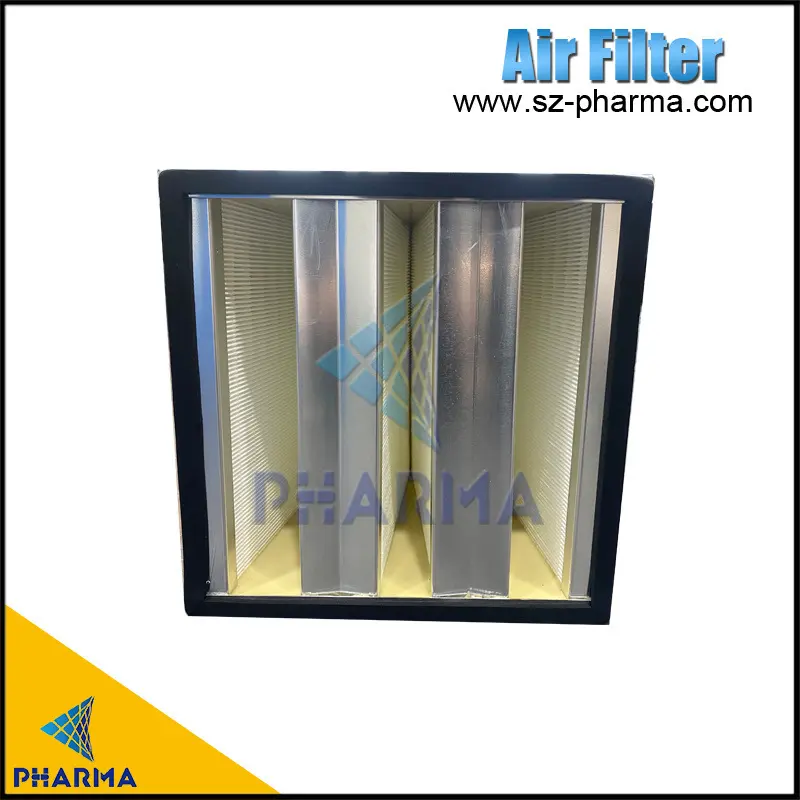

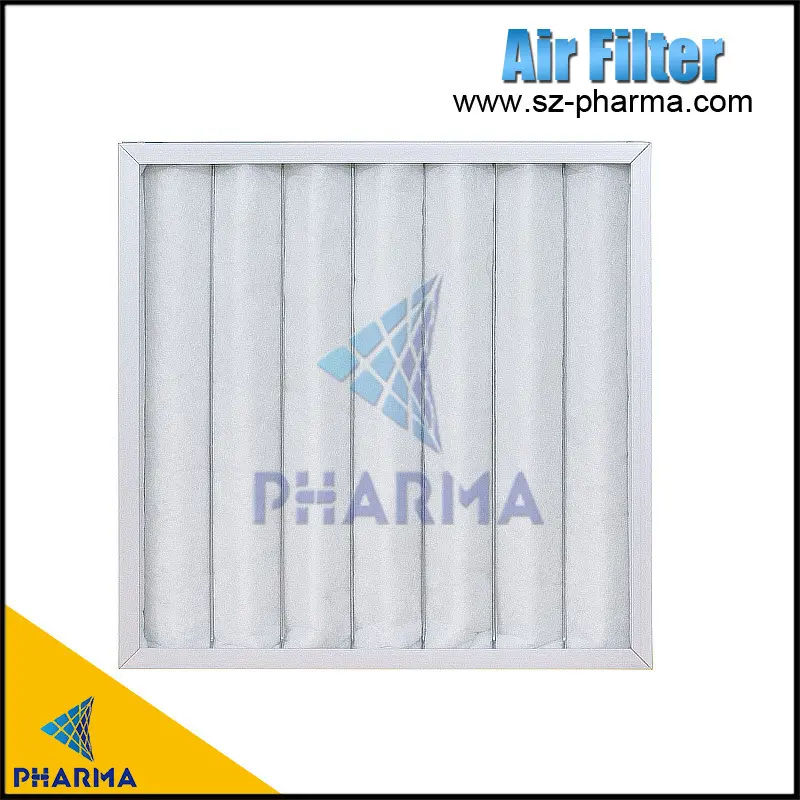

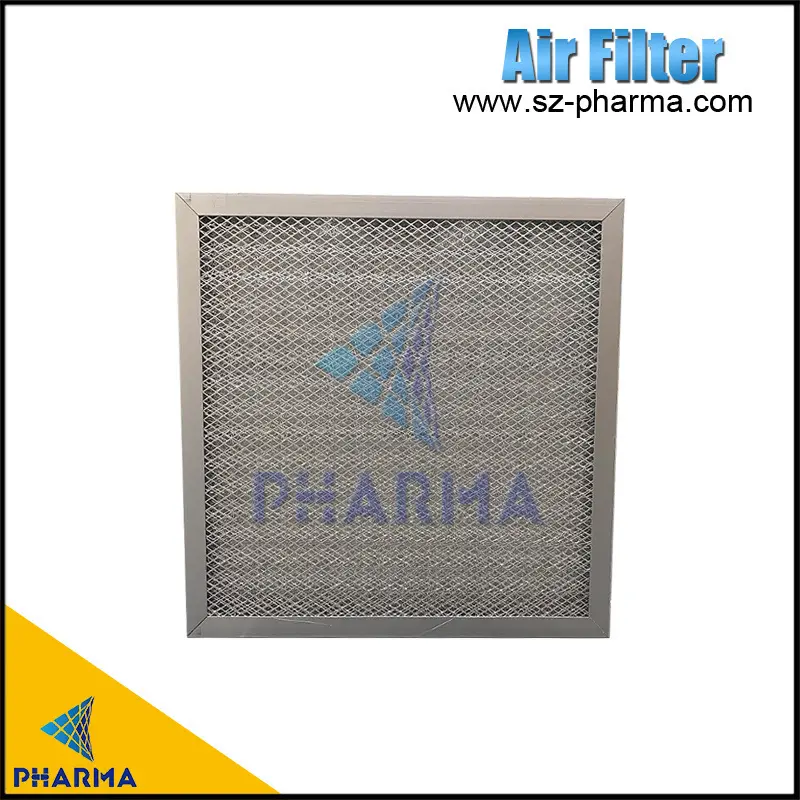

Medium Efficiency Filter Plate Filter Bag Filter


  • After Warranty Service:Video technical support, Online support

  • Warranty:1 year

  • Certification:ISO9001, ISO CE

  • Efficiency:99.995%@0.3μm

  • Size:Customized

  • Color:White

  • Medium Material:Paper,glass fiber,cotton

  • Porosity:0.5um, 0.3um

  • Frame:Extruded aluminum,galvanized steel sheet

  • Construction:Panel Filter


product-PHARMA-img


Limit Discounts

Limit Discounts


product-PHARMA-img


Description

Description

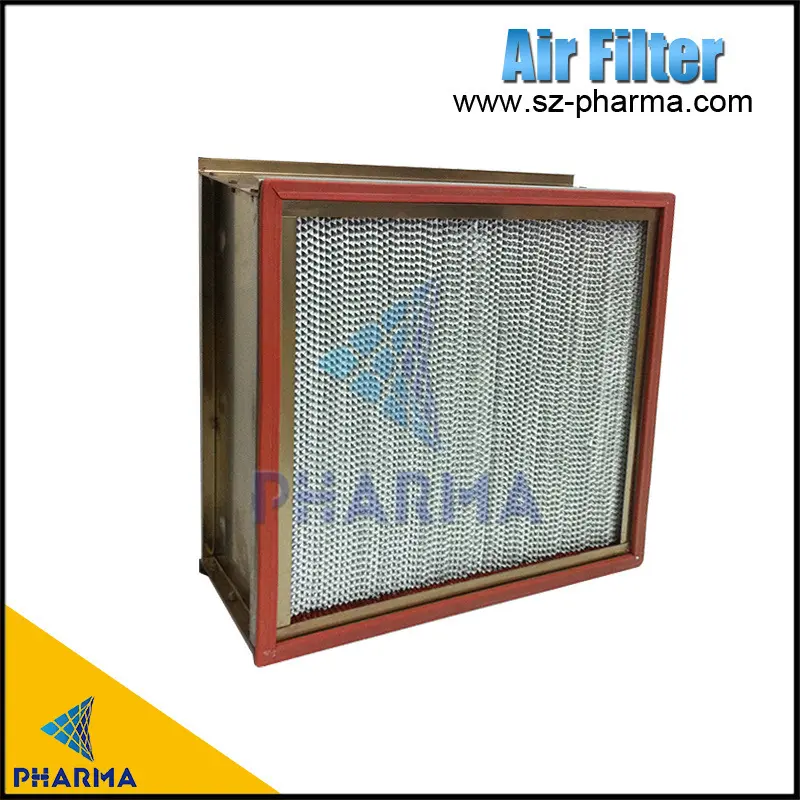

The high-efficiency filter
The high-efficiency filter is mainly used to capture 0.5um particle dust and various suspended solids as the end filtration of various filtration systems. Ultra fine glass fiber paper is used as filter material, plywood paper and aluminum foil are folded as split plates. New polyurethane sealant is used for sealing. The outer frame is made of galvanized sheet, stainless steel plate and aluminum alloy profile.


product-PHARMA-img
Characteristics

1. Air filter screen is made of very small organic fibers. The ability to capture particles is stronger, small pore size, large adsorption capacity,small wind resistance, and high filtration accuracy;


2. Filtration efficiency: efficiency varies according to material.


3. According to the equipment's air flow requirements, installation size requirements, filtering efficiency and resistance requirements to selection and design;


4. Application: cleanroom system, air clean equipment, fresh air machine, air conditioning, electronic industry, medical equipment, etc.


5. With functions perfect large scale group control operating system


product-PHARMA-Medium Efficiency Filter Plate Filter Bag Filter-img

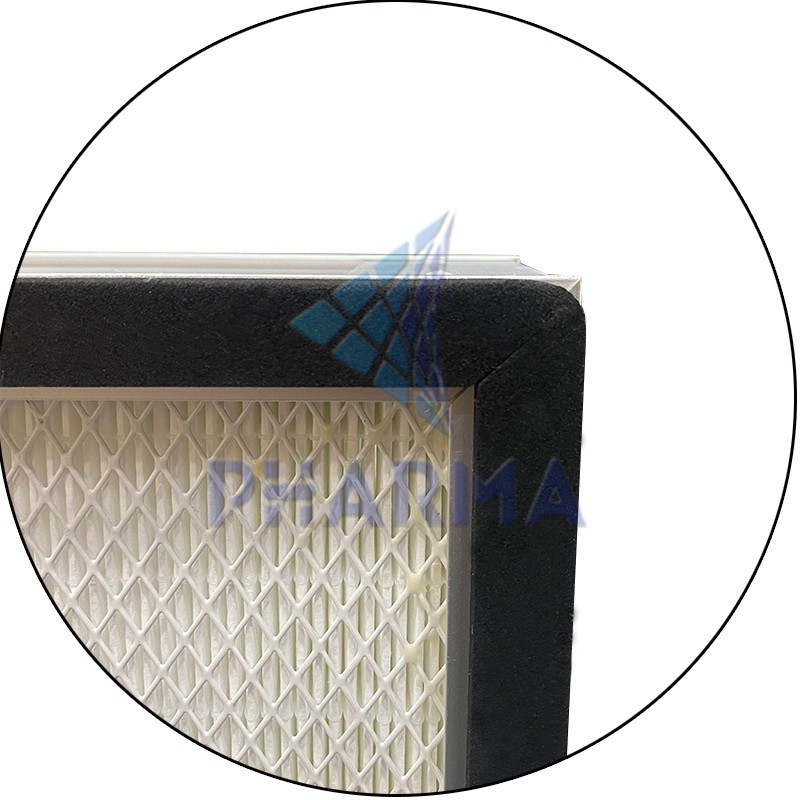

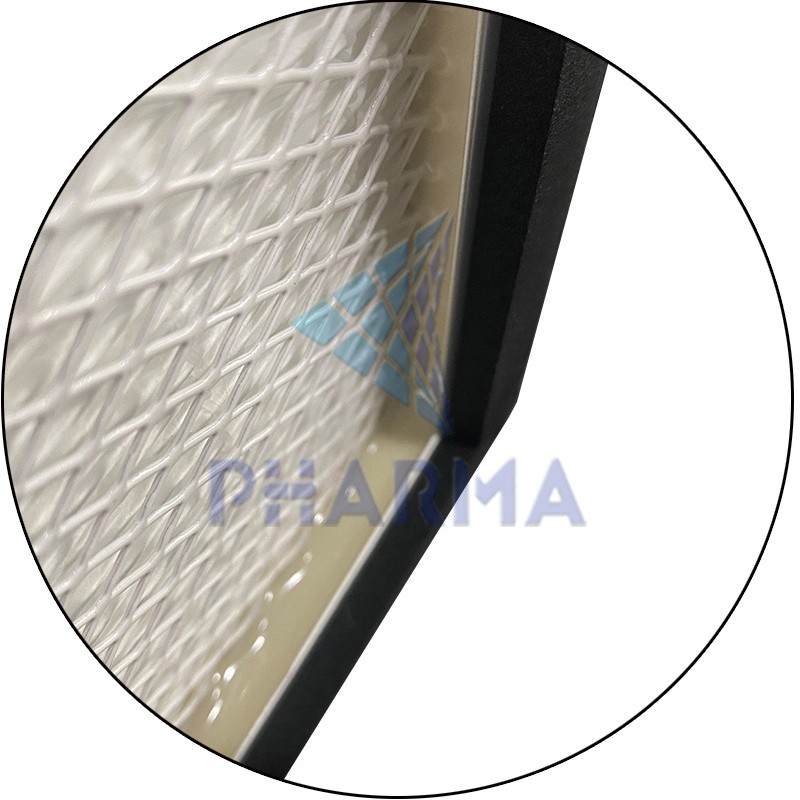

Black sealant strip, exquisite workmanship!


Hard-wearing rubber to prevent scratches on the frame.






product-PHARMA-img

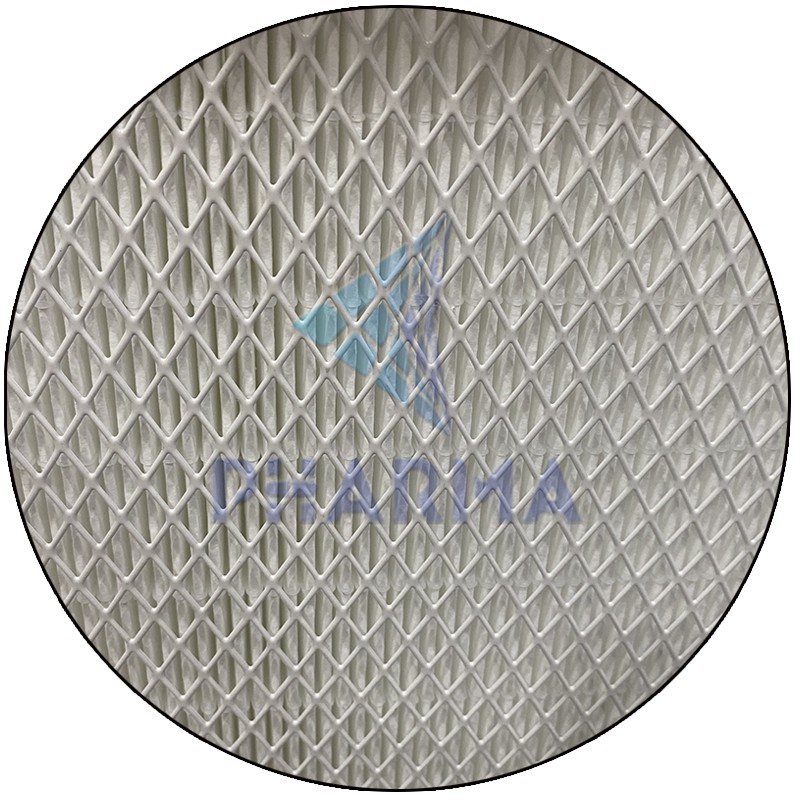

Fiber Glass Filter Paper: high efficiency media,high dust holding capacity,and low resistance.
FFU special high efficiency filterscreen
Effective haze / powder removal /PM2.5

The effect is obviou


product-Medium Efficiency Filter Plate Filter Bag Filter-PHARMA-img

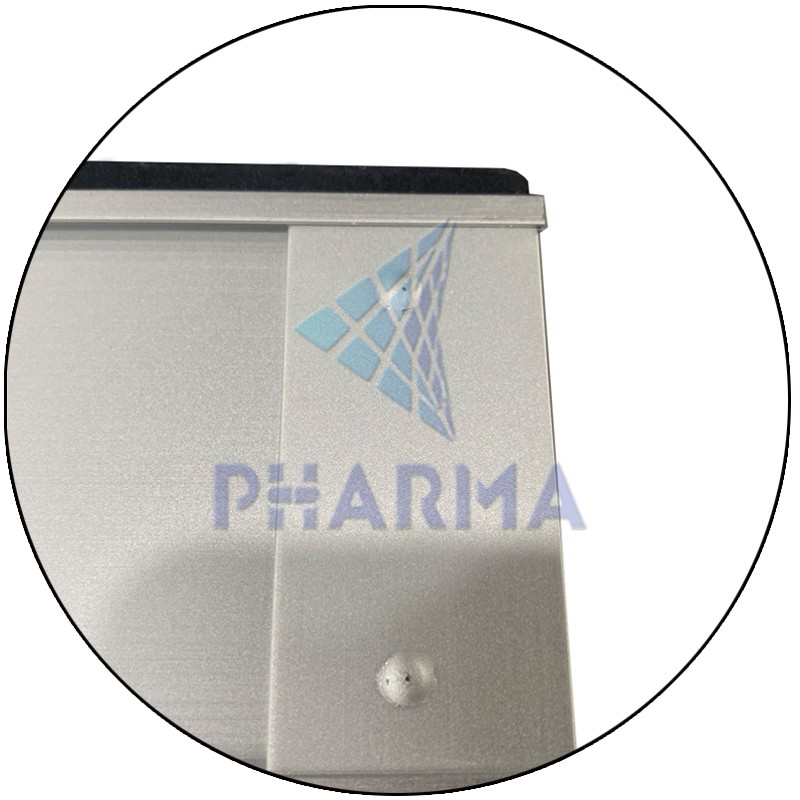

Strong aluminum alloy frame to protect whole structure.

High quality aluminum aloy frame
Simple structure

Compact energy saving




product-PHARMA-img-1
Perfect adhesive pouring technology to ensure no air leak.

Double side plastic spraying protective net

Glass fiber filter material




Technical Parameters

Technical Parameters
StructureDimensionsAirflowEarly resistancRecommended endresistance
Chip290*595*20(mm)1240(CMH)95(Pa)120(Pa)
493*595*20(mm)2110(CMH)
595*595*20(mm)2540(CMH)
290*595*46(mm)1240(CMH)60(Pa)80(Pa)
493*595*46(mm)2110(CMH)
595*595*46(mm)2540(CMH)
Pleated290*595*46(mm)1240(CMH)40(Pa)62(Pa)
493*595*46(mm)2110(CMH)
595*595*46(mm)2540(CMH)



Filter levelFiltration accuracyFiltration efficiency
G1 (EN779)≥5um40%
G2 (EN779)≥5um70%
G3 (EN779)≥5um85%
G4 (EN779)≥5um90%
F5 (EN779)1- 10um35%
F6 (EN779)1-10um45%
F7 (EN779)1-10um65%
F8 (EN779)1-1 0um85%
F9 (EN779)1-1 0um95%
H10 (EN1 8822)≥0.3um90%
H11 (EN18822)≥0.3um99%
H12 (EN1 8822)≥0.3um99.90%
H13 (EN1 8822)≥0.3um99.99%
H14 (EN18822)≥0.3um100.00%

Installation

Installation


product-PHARMA-img-1

product-PHARMA-img-1


product-PHARMA-Medium Efficiency Filter Plate Filter Bag Filter-img-1


product-PHARMA-img-1


product-Medium Efficiency Filter Plate Filter Bag Filter-PHARMA-img-1

product-PHARMA-img-2

product-PHARMA-img-2


product-PHARMA-img-2
