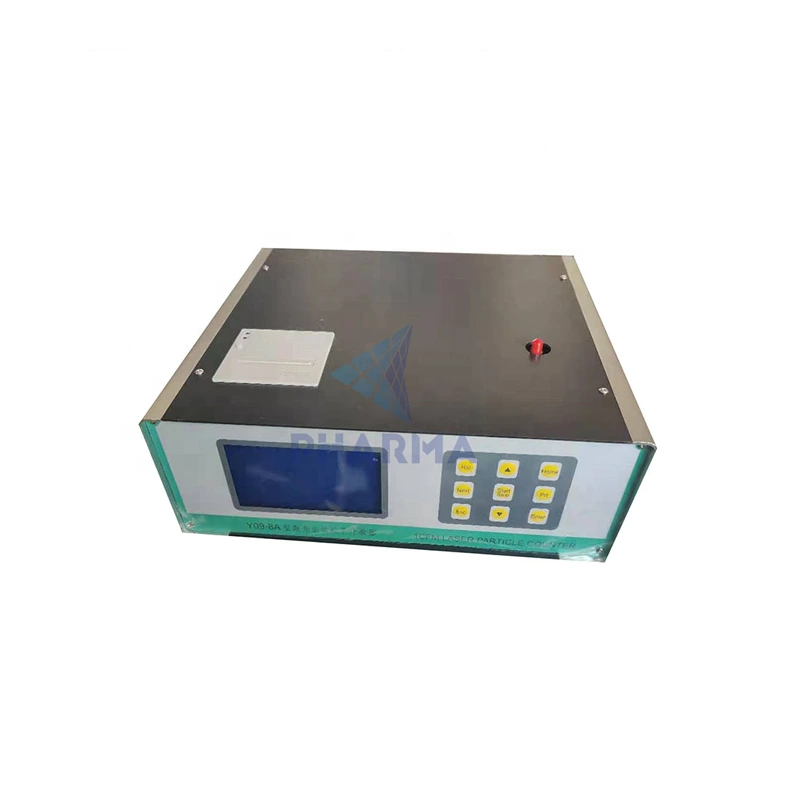

Laboratory Use Dust Particle Counter With Tripod And Printer

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Condition:New
    Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Construction works , Food & Beverage Shops, Laboratory
    Weight (KG):5
    Showroom Location:Turkey, United Kingdom, United States, Germany, Brazil, Peru, Saudi Arabia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, South Korea, Chile, Algeria, South Africa, Tajikistan, Japan, Malaysia, Australia
    Video outgoing-inspection:Provided
    Machinery Test Report:Provided
    Marketing Type:Hot Product 2022
    Warranty of core components:1 Year
    Core Components:PLC
    Place of Origin:Jiangsu, China
    Brand Name:Suzhou Pharma Machinery
    Warranty:1 Year
    Particle counting channel:0.3,0.5,1.0,3.0,5.0,10μm
    Maximum count range:35000/L
    Sampling period:1-40 minutes
    Sampling flow:1CFM(28.3L/min)
    UCL:0.5,5.0μm GBMODEL
    Alarm Settings:New GMP
    Cleanliness Judgment:New GMP
    Data Saving:256 groups
    Self-cleaning time:≤10min
    Power supply:220VAC 50/60Hz
    Video Description
    Product Description
    product-PHARMA-img
    This product laser dust particle counter is a device for measuring particle dust with sampling flow up to 1CFM. As a particle count, 0.3, 0.5, 1.0, 3.0, 5.0, 10 μm, 6-channel particle data is displayed in real time, and the cumulative particle number and particle concentration value of 6 channels can be switched to display after one sampling period. Built-in long-life laser diode, high-efficiency light-collecting elliptical lens, and unique optical system to provide high accuracy and concentration measurement range. Built-in high-efficiency vacuum pump, isokinetic sampling head, microprocessor circuit, computer interface, all information is displayed on the LCD screen.
    Application • Cleanroom Monitoring, Validation, HEPA, ULPA Filter Testing, FED. STD 209 • Indoor and outdoor (*) air quality studies • Identify sources of leaks and contamination in ducts and air filtration systems • Hospital Nursing Wards • Test the efficiency of residential air purification and vacuum cleaners • Detection of filter particle leakage • Epidemiological studies
    Specification
    The instrument provides an isokinetic sampling head, which is connected to the sampling port through a hose. The isokinetic sampling head helps reduce counting errors when sampling small particles and should be used in every measurement. The isokinetic sampling head should always be facing up when sampling typical indoor and outdoor aerosol particles. The instrument can be held in the hand or placed on a flat surface or tripod with the LCD screen facing the operator. Where constant airflow is sampled, such as clean rooms, ducts, downstream of filters, etc., the airflow direction is always aligned with the opening of the isokinetic sampling head. The hose connecting the isokinetic sampling head and the sampling port can be extended if necessary. However, longer lengths can burden the sampling pump, reduce the airflow rate and cause premature failure of the sampling pump. There is also an increase in count loss, especially for large particles. It is recommended to keep the hose length as short as possible, and it should not exceed 4 feet in length. Sampling height also affects readings, and readings near the floor may be several times higher than eye-level readings. When analyzing contamination problems with the Y09-8A, it should be noted that not all contamination is continuous, and some are the result of short-lived events or a burst of particles. The source of contamination can be determined by taking multiple samples from the same location.

    product-PHARMA-img
    Core Components
    PLC
    Warranty
    1 Year
    Particle counting channel
    0.3,0.5,1.0,3.0,5.0,10μm
    Maximum count range
    35000/L
    Sampling period
    1-40 minutes
    Sampling flow
    1CFM(28.3L/min)
    UCL
    0.5,5.0μm GBMODEL
    Alarm Settings
    New GMP
    Cleanliness Judgment
    New GMP
    Data Saving
    256 groups
    Self-cleaning time
    ≤10min
    Power supply
    220VAC 50/60Hz
    Company Profile
    Suzhou Pharma Machinery Co.,Ltd. is one of the clean room engineering enterprises with the longest professional development, the earliest market-oriented operation in China.Our company has been established for 13 years, and has built more than 500 clean room projects all over the world, which has attracted the attention of the industry. With the precipitation of time, our company has been recognized by more people in the same industry, and enterprises from all over the country have come to our company for communicate.

    1.We offer projects as per GMP regulations. As being pioneers in this field, the solutions from our company is readily accepted by the customers.

    2.Our company has a team of experienced personnel to design and installation clean room professionally.

    3.We have the qualifications and experience to provide a comprehensive validation service of clean room to the requirements of all the current standard.

    product-PHARMA-img
    FAQ
    1.Does the clean room cost include installation and freight?
    We will quote EXW,CIF or CFR price for reference. The quote will show the installation fee and freight according to your address.

    2.How does a clean room work?
    A clean room provides a controlled, isolated environment for handling contamination ­sensitive substances or for protecting the exterior environment from dangerous substances in the controlled area. The density of sub­micron and larger airborne particle contamination inside a clean room is kept within tightly controlled limits by forcing clean, filtered air into the clean room.

    3.Can I get special design and function?
    Yes, We are very pleased to be able to provide you with new designs, or to manufacture according to your drawings.

    4.How can you guarantee high level manufacturing process and installation?
    We are professional suppliers for more than 13 years.We have the best designers,engineers.We will design and manufacture according to the standards of the cleanrooms. We have full experience installation workers, they can make perfect buildings with professional skills.

    5.What industry of clean room you can supply?
    Hospital, laboratory, pharmaceutical, medical, electronic, biological, food and beverage, cosmetics industry,etc.

    6.What products does your company specialized in?
    Our company specialized in clean room turnkey projects, prefab houses, and air clean equipments.
    The use of this product helps people reduce their working hours and helps relieve them from tiring works and heavy tasks. With many administrative and support functions, it reduces reduced the need for many less-skilled workers. This definitely helps manufacturers remain competitive in the industry.
