ISO14644-1 Class 5 Semiconductor clean room
Brand name:
PHARMA CLEAN
Size:
12; 24;36;48 Square meter, customize
Warranty:
1 year
Application:
Semiconductor;medical, pharmaceutical
Lead_Time
10-20 working days
Power
110,220,380V
Original:
Suzhou
Packing Details:
Plywood case
参数暂无数据

Add success, do you want to check your shopping cart?

暂无分享


  • Installation:3D video, manual, site assemble

  • Warranty:1 year

  • Certification:CE ISO GMP

  • Usage:Semiconductor; Laboratories

  • Floor:PVC floor; epoxy floor

  • Lighting:LED panel light, UV light

  • Clean grade:From Class100-10000

  • Name:Modular clean room

  • Power Supply:Customize

  • Type:Vertical Flow


product-ISO14644-1 Class 5 Semiconductor clean room-PHARMA-img


Limit Discounts

Limit Discounts


product-PHARMA-img


Description

Description


Modular clean room is a kind of modular design and easy assemble clean room. It can be assemble and disassemble very easily. It’s a positive pressure environment to provide clean air into the clean room.

The portable clean room cost cost depends on the following aspects: clean grade(from ISO5 to ISO9), total area and height, wall material and thickness, temperature, humidity requirements.

A complete portable clean room including wall and ceiling system, connection parts, clean room equipment, temperature and humidity control system, electric system, etc.


product-PHARMA-img
Advantages

Portable clean room dimension can be customize according to client requirement. Room length and width are flexible size, the height generally from 2.3 meters to 3 meter.The structure is simple, and it becomes stable in a short time after operation.Vertical laminar flow: The ceiling of the room is completely covered with HEPA filters, and the air is blown from top to bottom, which can achieve high cleanliness. Advantages: easy to manage, and can reach a stable state within a short time after the operation starts, and it is not easy to be in a working state or affected by workers.



PVC curtain and PVC sheet

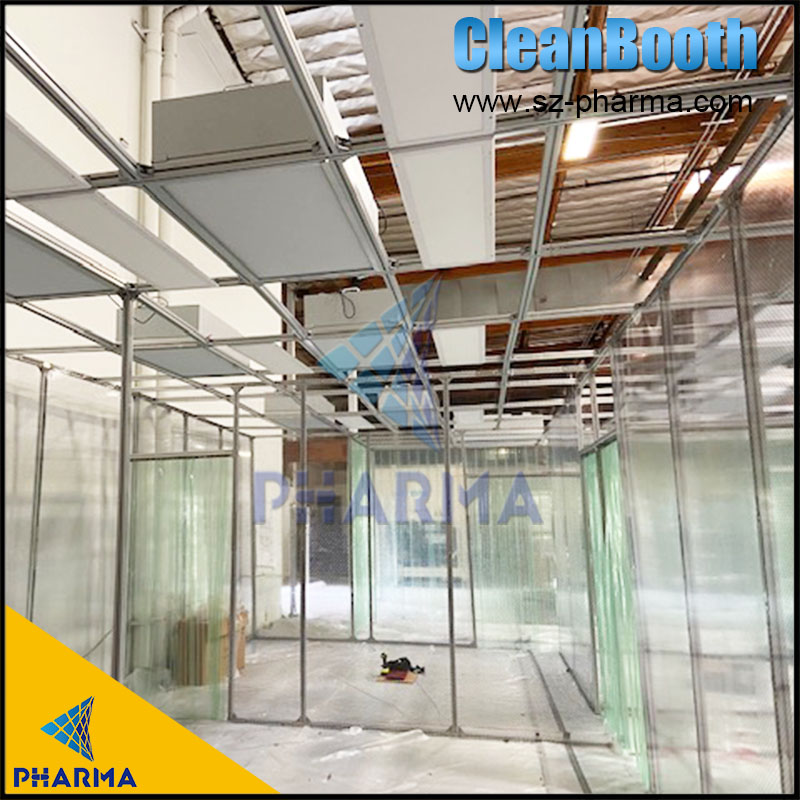

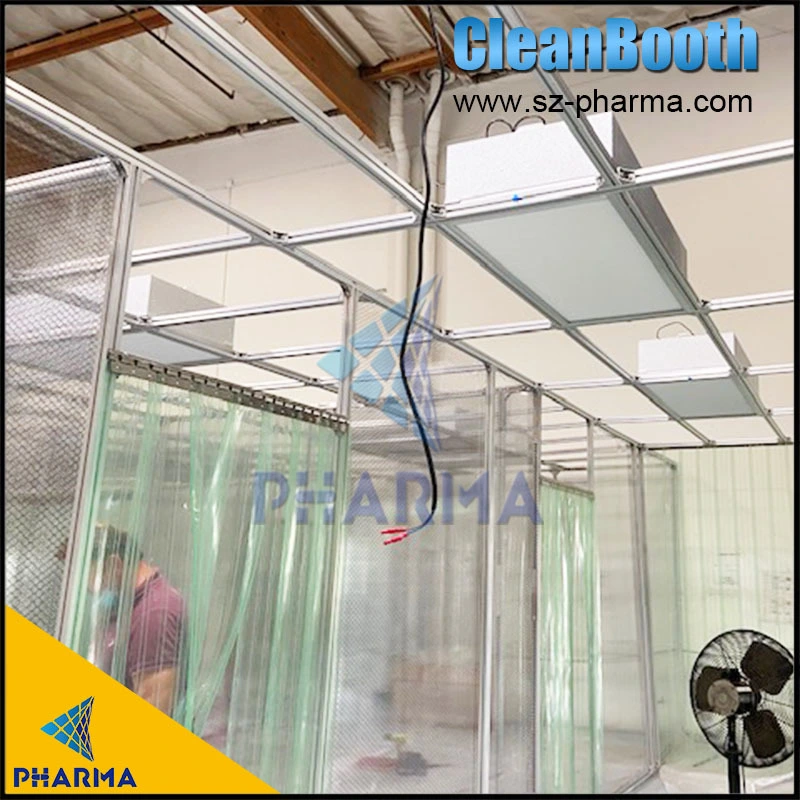

This is combined type modular clean room. It's also call clean room tent or clean booth. The wall and ceiling material are various option, but the most easy assemble is PORTABLE CLEAN ROOM, we have designed for many client with advanced frame and material. Two workers can finish the assemble only 3-5 hours for a 50 square meters room. We will provide 3D video to show every step, manual instruction, online guide. This will help client in a big convenience.

product-PHARMA-img
Technical Parameters


ApplicationSolid formulations,tablets, capsules, powder formulations,etc.
Wall MaterialHardwall(transparent wall, sandwich panel wall), softwall(PVC curtain, PVC sheet)
Frame Material304 Stainless Steel/Aluminum alloy profile
CleanlinessFrom Class 100 to Class 10,000,0
Power110V/60hz/av/dc, 220V/60HZ/AV/DC
FFU2*4ft/4*4ft
HEPA FilterH14 Hepa filter
LightingAvailable in LED and T5
Size12/24/35/48 square meter, customize

Installation

Installation


product-PHARMA-img

product-PHARMA-ISO14644-1 Class 5 Semiconductor clean room-img


product-ISO14644-1 Class 5 Semiconductor clean room-PHARMA-img-1


product-PHARMA-img-1


product-PHARMA-img-1

product-PHARMA-img-1

product-PHARMA-img-1


product-PHARMA-ISO14644-1 Class 5 Semiconductor clean room-img-1


In order to know your requirement, please fill the following table carefully and supply CAD layout, so that we can provide correct scheme and quotation, thank you!
