High quality dust particle counter for bio laboratory-PHARMA

Related Products

Laboratory Use Dust Particle Counter With Tripod And Printer

Product Information
Company Profile

Overview

Quick Details

Condition:New

Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Construction works , Food & Beverage Shops, Laboratory

Weight (KG):5

Showroom Location:Turkey, United Kingdom, United States, Germany, Brazil, Peru, Saudi Arabia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, South Korea, Chile, Algeria, South Africa, Tajikistan, Japan, Malaysia, Australia

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Marketing Type:Hot Product 2022

Warranty of core components:1 Year

Core Components:PLC

Place of Origin:Jiangsu, China

Brand Name:Suzhou Pharma Machinery

Warranty:1 Year

Particle counting channel:0.3,0.5,1.0,3.0,5.0,10μm

Maximum count range:35000/L

Sampling period:1-40 minutes

Sampling flow:1CFM(28.3L/min)

UCL:0.5,5.0μm GBMODEL

Alarm Settings:New GMP

Cleanliness Judgment:New GMP

Data Saving:256 groups

Self-cleaning time:≤10min

Power supply:220VAC 50/60Hz

Video Description

Product Description

product-High quality dust particle counter for bio laboratory-PHARMA-img

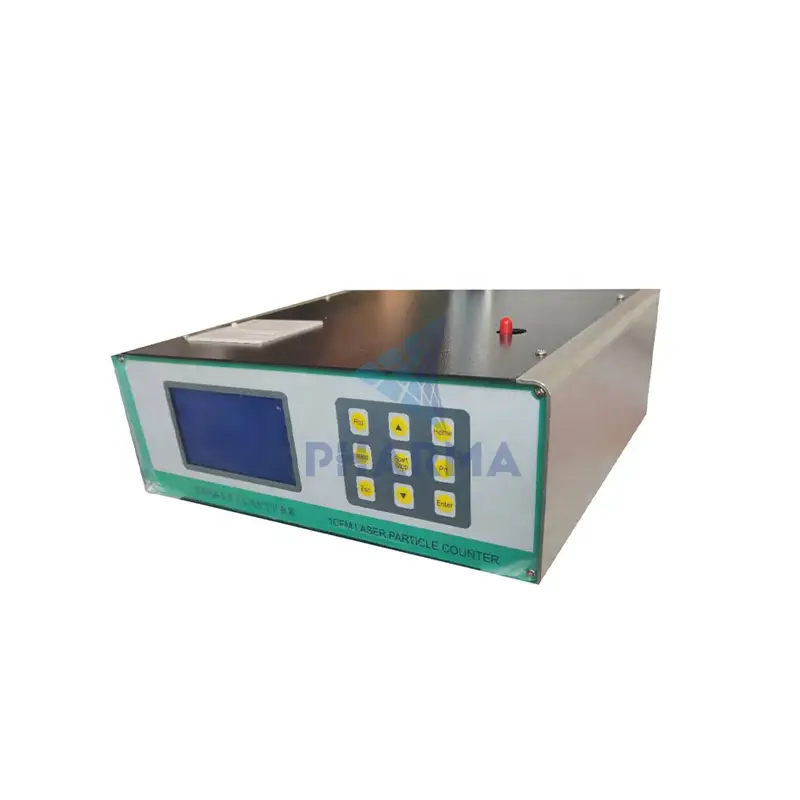

This product laser dust particle counter is a device for measuring particle dust with sampling flow up to 1CFM. As a particle count, 0.3, 0.5, 1.0, 3.0, 5.0, 10 μm, 6-channel particle data is displayed in real time, and the cumulative particle number and particle concentration value of 6 channels can be switched to display after one sampling period. Built-in long-life laser diode, high-efficiency light-collecting elliptical lens, and unique optical system to provide high accuracy and concentration measurement range. Built-in high-efficiency vacuum pump, isokinetic sampling head, microprocessor circuit, computer interface, all information is displayed on the LCD screen.

Application • Cleanroom Monitoring, Validation, HEPA, ULPA Filter Testing, FED. STD 209 • Indoor and outdoor (*) air quality studies • Identify sources of leaks and contamination in ducts and air filtration systems • Hospital Nursing Wards • Test the efficiency of residential air purification and vacuum cleaners • Detection of filter particle leakage • Epidemiological studies

Specification

The instrument provides an isokinetic sampling head, which is connected to the sampling port through a hose. The isokinetic sampling head helps reduce counting errors when sampling small particles and should be used in every measurement. The isokinetic sampling head should always be facing up when sampling typical indoor and outdoor aerosol particles. The instrument can be held in the hand or placed on a flat surface or tripod with the LCD screen facing the operator. Where constant airflow is sampled, such as clean rooms, ducts, downstream of filters, etc., the airflow direction is always aligned with the opening of the isokinetic sampling head. The hose connecting the isokinetic sampling head and the sampling port can be extended if necessary. However, longer lengths can burden the sampling pump, reduce the airflow rate and cause premature failure of the sampling pump. There is also an increase in count loss, especially for large particles. It is recommended to keep the hose length as short as possible, and it should not exceed 4 feet in length. Sampling height also affects readings, and readings near the floor may be several times higher than eye-level readings. When analyzing contamination problems with the Y09-8A, it should be noted that not all contamination is continuous, and some are the result of short-lived events or a burst of particles. The source of contamination can be determined by taking multiple samples from the same location.

Core Components	PLC
Warranty	1 Year
Particle counting channel	0.3,0.5,1.0,3.0,5.0,10μm
Maximum count range	35000/L
Sampling period	1-40 minutes
Sampling flow	1CFM(28.3L/min)
UCL	0.5,5.0μm GBMODEL
Alarm Settings	New GMP
Cleanliness Judgment	New GMP
Data Saving	256 groups
Self-cleaning time	≤10min
Power supply	220VAC 50/60Hz

Company Profile

Suzhou Pharma Machinery Co.,Ltd. is one of the clean room engineering enterprises with the longest professional development, the earliest market-oriented operation in China.Our company has been established for 13 years, and has built more than 500 clean room projects all over the world, which has attracted the attention of the industry. With the precipitation of time, our company has been recognized by more people in the same industry, and enterprises from all over the country have come to our company for communicate.

1.We offer projects as per GMP regulations. As being pioneers in this field, the solutions from our company is readily accepted by the customers.

2.Our company has a team of experienced personnel to design and installation clean room professionally.

3.We have the qualifications and experience to provide a comprehensive validation service of clean room to the requirements of all the current standard.

FAQ

1.Does the clean room cost include installation and freight?
We will quote EXW,CIF or CFR price for reference. The quote will show the installation fee and freight according to your address.

2.How does a clean room work?
A clean room provides a controlled, isolated environment for handling contamination sensitive substances or for protecting the exterior environment from dangerous substances in the controlled area. The density of submicron and larger airborne particle contamination inside a clean room is kept within tightly controlled limits by forcing clean, filtered air into the clean room.

3.Can I get special design and function?
Yes, We are very pleased to be able to provide you with new designs, or to manufacture according to your drawings.

4.How can you guarantee high level manufacturing process and installation?

We are professional suppliers for more than 13 years.We have the best designers,engineers.We will design and manufacture according to the standards of the cleanrooms. We have full experience installation workers, they can make perfect buildings with professional skills.

5.What industry of clean room you can supply?

Hospital, laboratory, pharmaceutical, medical, electronic, biological, food and beverage, cosmetics industry,etc.

6.What products does your company specialized in?
Our company specialized in clean room turnkey projects, prefab houses, and air clean equipments.

With a strong sense of responsibility, the PHARMA's staff always provides the best service. SUZHOU PHARMA MACHINERY CO.,LTD. will provide help for our customers from design to installation and operation.
