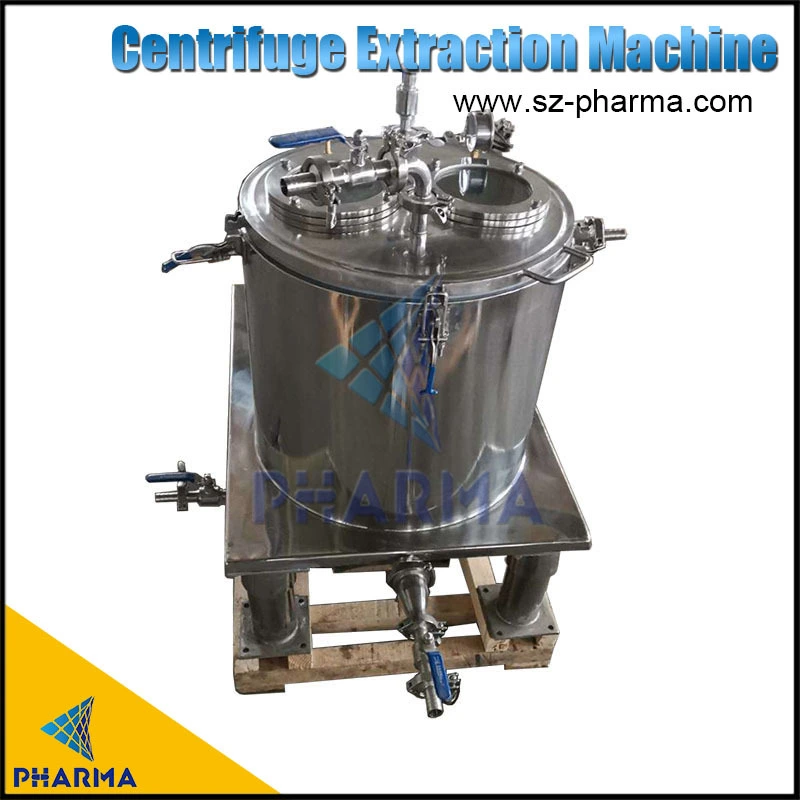

High Performance Ethanol Extraction Separator
Centrifuge machine can be mainly used for all kinds of suspension which contains fine particle with diameter of 0.005-15mm, the concentration of 1 - 40% and temperature of not more than 100 ℃.
Also can be used for the separation of 3-phase mixture in which the solid's density is higher than the liquid.
And there is density difference (liquid-liquid-solid), and the separation of liquid-solid suspension and particles.
Especially for the suspension separation in which the filter cloth is difficult to regenerate, and its concentration & particle size changes lot.
The machine is widely used in the industries of chemical, pharmaceutical, food, petroleum and environmental protection, etc,
Model | SH-300 | SH-350 | SH-400 | SH-600 | SH-800 | ||||
Working basket drum diameter | 300mm | 350mm | 400mm | 600mm | 800mm | ||||
Max working ability | 220kg | 300kg | 350kg | 420kg | 500kg | ||||
Max loading capacity | 20-30 lbs | 30-40 lbs | 40-50 lbs | 50-70 lbs | 70-100 lbs | ||||
Power | 2kw | 2.5kw | 3kw | 4kw | 6kw | ||||
Dimension | 550*700*630 | 620*800*650 | 700*920*700 | 740*980*720 | 1000*1020*820 | ||||
Extraction  Temperature |                                                                  -40℃~-120℃ | ||||||||
The dipping part is in stainless steel SUS304
And the machine all with Explosion-proof design.
Equipped with 3-point shake-proof device.Teflon coating for getting acid resistance can be requested to do with an extra charge.
