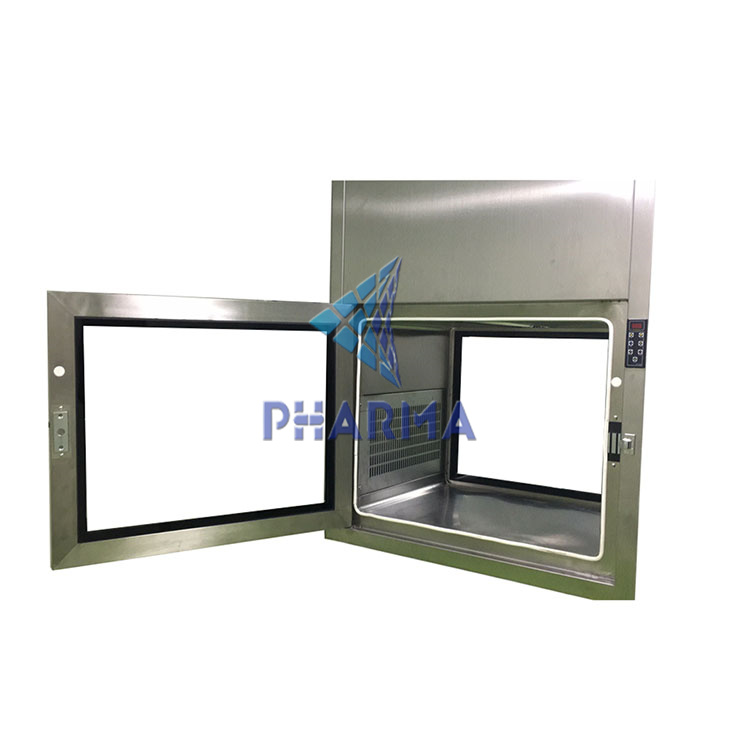

High Efficiency Dynamic Pass Box
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
- Condition:
- New
- Applicable Industries:
- Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops
- After Warranty Service:
- Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location:
- Egypt, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, South Africa, Ukraine, Uzbekistan
- Showroom Location:
- United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Uzbekistan, Tajikistan, Malaysia, Australia
- Video outgoing-inspection:
- Provided
- Machinery Test Report:
- Provided
- Marketing Type:
- New Product 2020
- Warranty of core components:
- 1 Year
- Core Components:
- PLC, Motor, Gear
- Place of Origin:
- Jiangsu, China
- Brand Name:
- PHARMA
- Warranty:
- 1 Year
- After-sales Service Provided:
- Field installation, commissioning and training
- Interlock:
- Electronical
- UV Lamp:
- 30W*1
- Application:
- Cleanroom Use
- Air Speed:
- 0.36~0.54m/S
- Material:
- SS304
- Internal Size:
- 600*600*600
- Efficiency:
- 99.999% at 0.3um
- HEPA:
- H14
- Product Name:
- Pass Box
- External Dimension(mm):
- 820*1070*680
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 20X20X20 cm
- Single gross weight:
- 68.000 kg

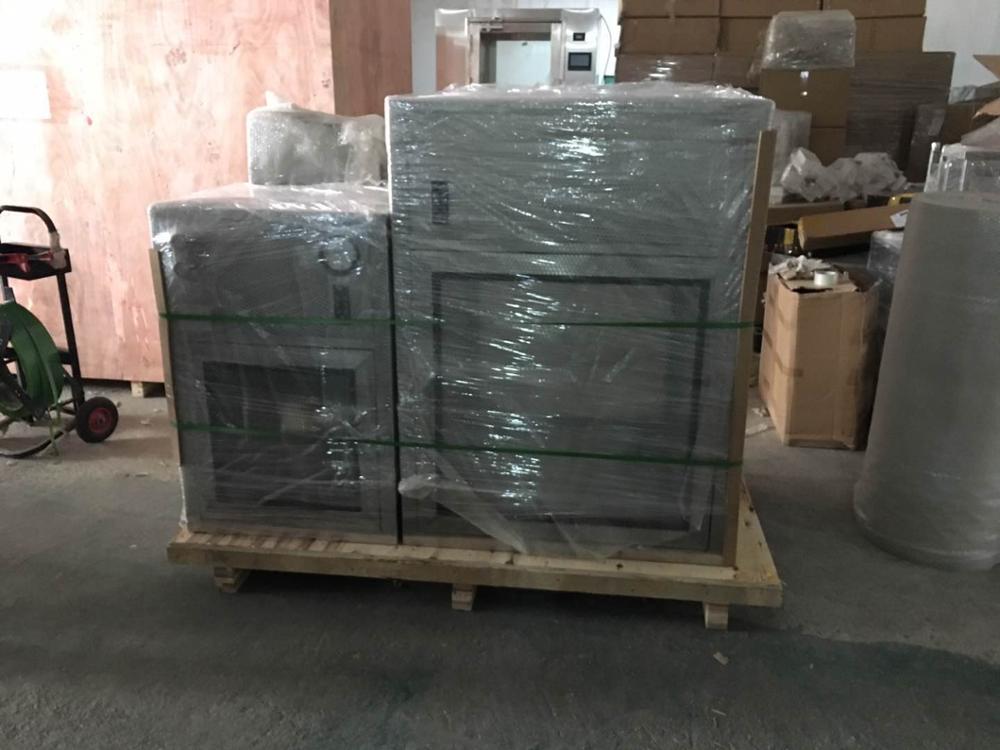

- Package Type:
- export package
- Picture Example:
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 15 To be negotiated
Related Products
Technical Parameter
Model | PH-666 | ||||
Working area W*H*D(mm) | 600*600*600 | 600*600*600 | |||
External Dimension(mm) | 820*1070*680 | 820*1070*680 | |||
Interlock system | Electromagnetism interlock | ||||
Sight Glass Dimension | 5mm Tempered Glass | ||||
HEPA | Mechanical Sealing/Gel-type Sealing | ||||
DOP | Optional | ||||
Diff.Pre.Gauge | Optional | ||||
UV Lamp | Optional 1pcs | ||||
Lighting Lamp | Optional 1pcs | ||||
Power | AC220V,1ø,50Hz(customized) | ||||
Material | 1.SUS304;2.Powder coated of external steel plate,SUS304 Of inner side | ||||
Products Standard | Q/320507 LDH007-2016 | ||||
Product Description
The pass thru box is a critical part of the product transfers which occur in every cleanroom. Although simple in design, the use
of a pass box is essential to the maintenance of the high level of cleanliness within the cleanroom. The pass box significantly
limits the amount of outside air exposed to the clean zone. With the use of either a mechanical or electrical interlock system,
the cleanroom is protected from the cross-contamination which would occur if both doors were to open simultaneously. Atmos-Tech
constructs Pass-Thrus for small or large parts, wheeled carts, and even personnel.
of a pass box is essential to the maintenance of the high level of cleanliness within the cleanroom. The pass box significantly
limits the amount of outside air exposed to the clean zone. With the use of either a mechanical or electrical interlock system,
the cleanroom is protected from the cross-contamination which would occur if both doors were to open simultaneously. Atmos-Tech
constructs Pass-Thrus for small or large parts, wheeled carts, and even personnel.
1.the working area is made of stainless steel, flat and smooth, angles arc transition.
2.on both sides of the transfer window with a fan who started the functionality to make two in a door opening can be any automatic
air.
3.UV germicidal lamp lighting and synchronized with the fans start to use.
4.users have special needs requirements, please specify when ordering.
2.on both sides of the transfer window with a fan who started the functionality to make two in a door opening can be any automatic
air.
3.UV germicidal lamp lighting and synchronized with the fans start to use.
4.users have special needs requirements, please specify when ordering.
Company Information
SUZHOU PHARMA MACHINERY CO.,LTD.'s customer service has high adaptability for different requirements.
SUZHOU PHARMA MACHINERY CO.,LTD. has changed its quality control system so it can deal quickly with problems on a global basis.
