Modular clean room
Home  > Pharma clean catalog  > Modular clean room  >

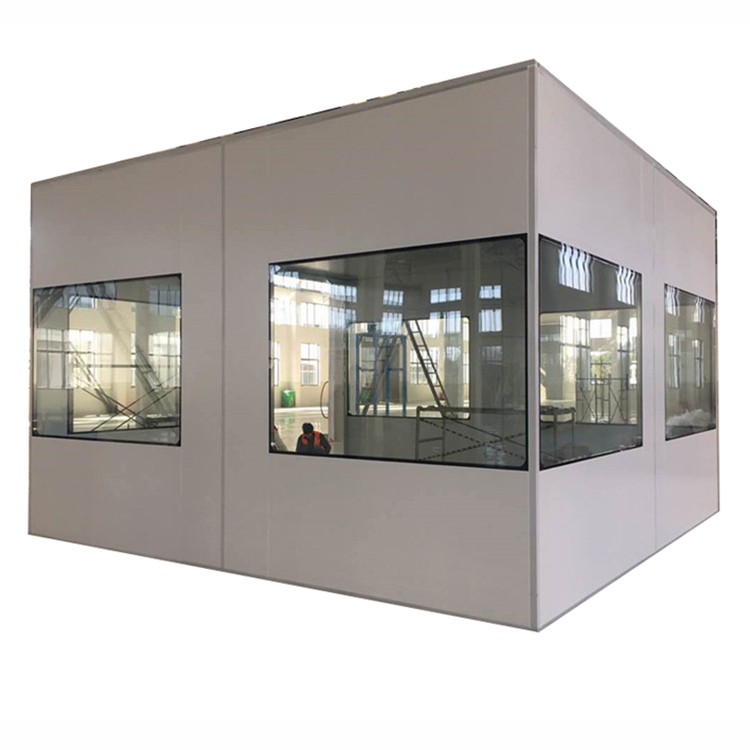

High cleanliness prefabricated softwall/hardwall clean room

High cleanliness prefabricated softwall/hardwall clean room

High cleanliness prefabricated softwall/hardwall clean room

Brand name:
PHARMA CLEAN
Original:
Suzhou, China
Price:
USD 260-380 /square meter
Payment:
T/T; Cash; Alibaba trade assurance
Delivery Time:
15-20 days, depending on the quantity
Supply Ability:
2000 Square Meters / Year
Start Port:
Shanghai
Packing Details:
Carton packing,metal frame;plywood case
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:


  • After Warranty Service:Video technical support, Online support, Field maintenance and repair service

  • Warranty:1 year

  • Certification:CE ISO GMP

  • Usage:Hospital/Pharmacy/Medical

  • Floor:PVC/Epoxy

  • Lighting:Cleanroom LED

  • Clean grade:From Class100-10000

  • Panel:PVC/ACRYLIC

  • Power Supply:200~240V

  • Type:Vertical Flow


product-PHARMA-img


Limit Discounts

Limit Discounts


product-PHARMA-img


Description

Description

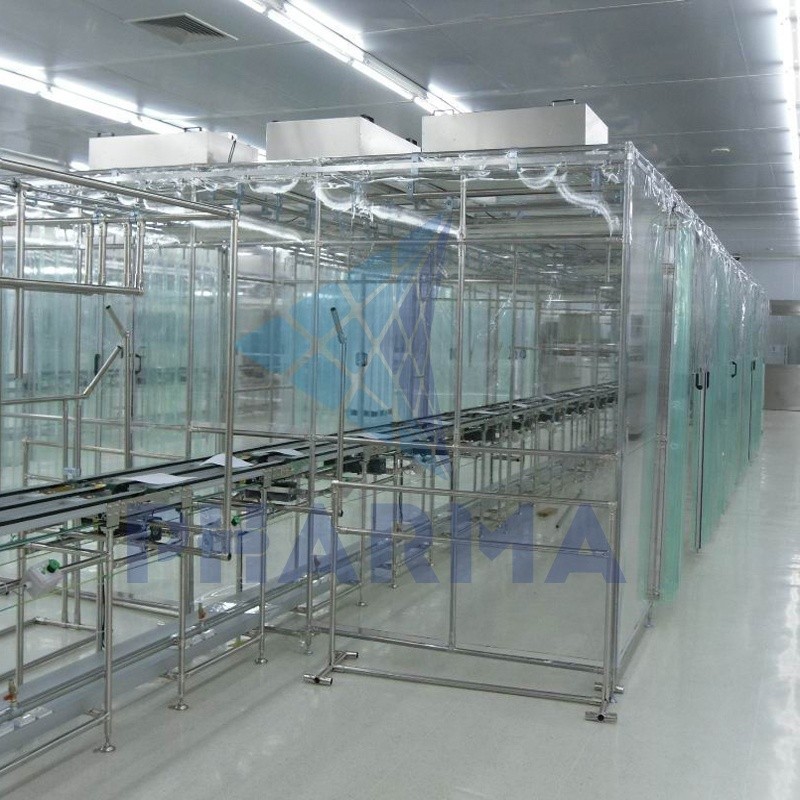

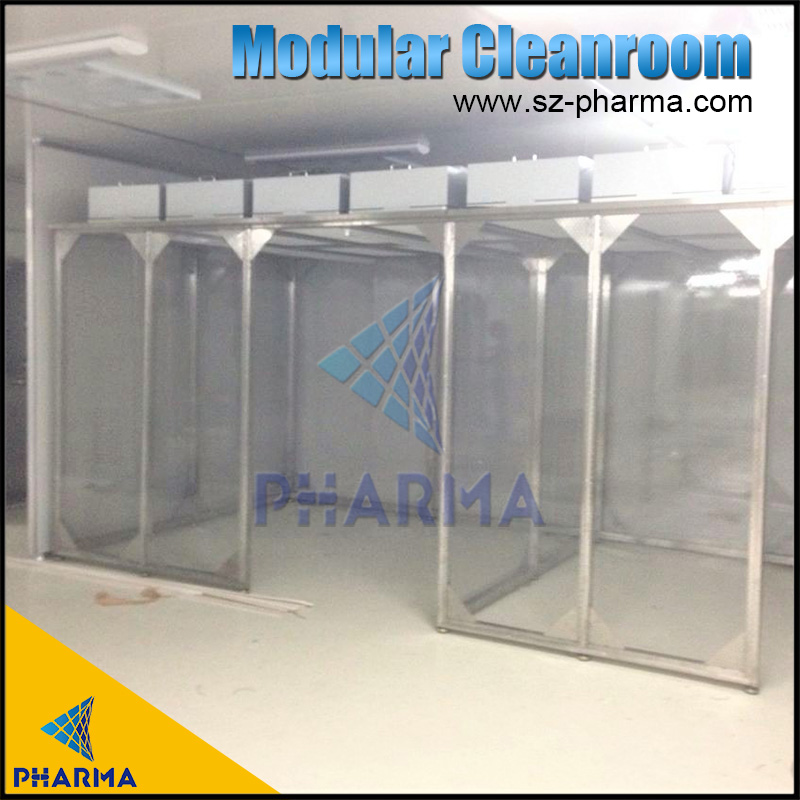

A clean shed is an air purification device that provides a high local clean environment. The clean shed main body adopts industrial aluminum (or stainless steel square pass, iron square pass spray) as the frame, fan filter unit (FFU) to supply air, surrounded by anti-static drape (or tempered glass), primary air filter, damping Layers, lamps and other components. The product can be hung or supported on the ground, compact and easy to use. It can be used singly or in multiple connections to form a strip-like clean area. The clean shed has an internal purification level of 100-10000. Applicable to areas with high requirements for local purification levels in the operation area.


product-PHARMA-High cleanliness prefabricated softwallhardwall clean room-img
Main Features


(1) Assembly structure design,easy installation and easily moved;

(2) Directional wheels can be installed,suitable for small building and high cleanliness area;

(3) Modular design:can be as small as several square meter and can be as large as hundreds of square meters;

(4) It is large useful and effective area,while compared with traditional clean room,it has such feature like low investment,high return and stable ;

(5)Customized design is welcome;

Technical Parameters

Technical Parameters


ParameterSoftwall modular cleanroomHardwall modular cleanroom
CleanlinessFrom Class 100 to Class 1000,000
External DimensionAs per requirement



FFU

Dimension2'X4'
Cabinet MaterialStainless Steel
Power source110V/60hz/AV/DC, 220V/60HZ/AV/DC
HEPA FilterH14 Hepa filter
Frame MaterialStainless Steel/Galvanized sheet
Wall MaterialAnti-static soft PVC wall 106~109ΩAnti-static acrylic 106~109Ω
LightingLampsAvailable in LED and T5
Air conditionAs per requirementAvailable in constant temperature air conditioner/constant temperature and humidity conditioner

product-PHARMA-img
product-High cleanliness prefabricated softwallhardwall clean room-PHARMA-img



Installation

Installation


product-PHARMA-img

product-PHARMA-img-1


product-PHARMA-img-1


product-PHARMA-High cleanliness prefabricated softwallhardwall clean room-img-1


product-PHARMA-img-1

product-High cleanliness prefabricated softwallhardwall clean room-PHARMA-img-1

product-PHARMA-img-1


product-PHARMA-img-2


In order to know your requirement, please fill the following table carefully and supply CAD layout, so that we can provide correct scheme and quotation, thank you!
