After Warranty Service: Video technical support, Online support
Warranty: 1 year
Model: ZP-61 Tablet Press Machine
Motor Power: 7.5KW
Max press: 100KN
Weight: 4300kg
Limit Discounts
Description

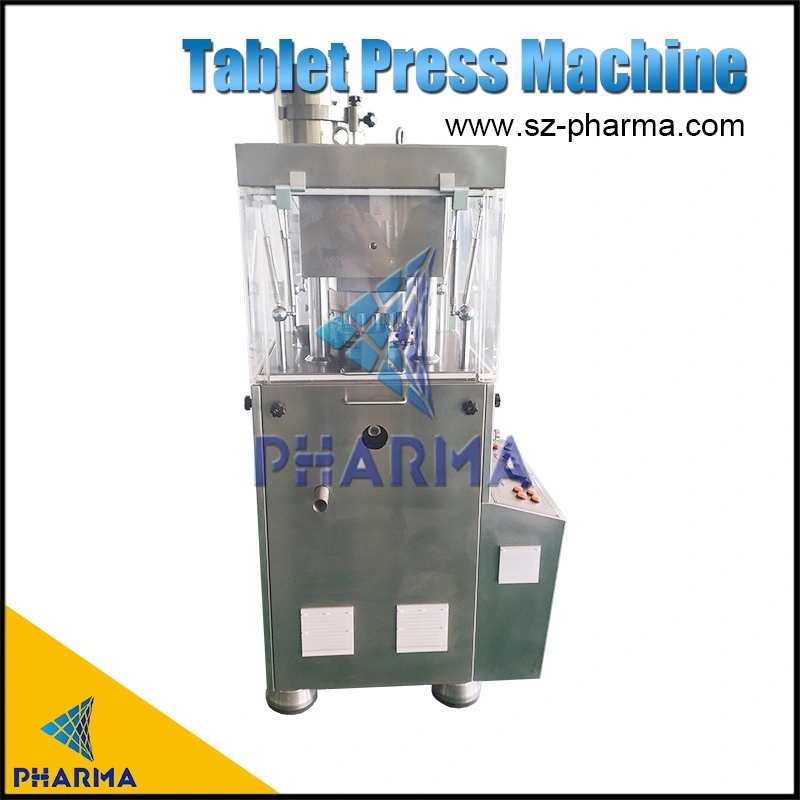

The machine was fully closed design, the material is SS304, the touch parts with medicine are all SS316 and meet GMP request. The entire glass windows of the tablet press machine are transparent, they are easy to view the inside condition, and they can be open completely. The machine adopts inverter adjustment and man-machine interface, which is easy and safety to operation.
 | Main Features1.It equipped with full auto lubrication system, auto supply transmission parts lubrication. 2.Feeding parts adopt both forced feeding and normal feeding 3.The upper press wheel and main press wheel can be interchanged. 4.The machine has punch break protection device. 5.The pressure sensor adopt national the most advanced over pressure protection technology, reaction sensitive. 6.The die can be universal with ZP33 and ZP19, if there needs to enlarge the thickness, only order the middle die. |
Technical Parameters
| Model | ZP61 |
Quantity of Punch&die | 61sets |
Max Pressure | 100KN |
Max pre. compression | 100KN |
| Max Dia of Tablet | 16mm |
| Max Depth of Filling | 20mm |
| Rotate Speed | 30r/min |
| Production capacity | 219600 pc/h |
| Overall Size | 1600*1200*1900mm |
