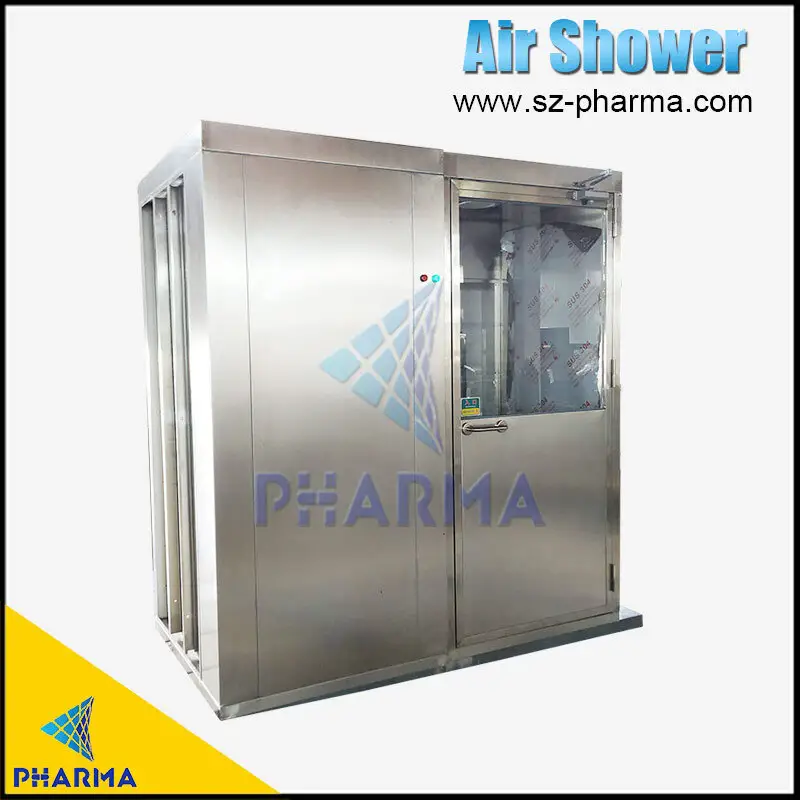

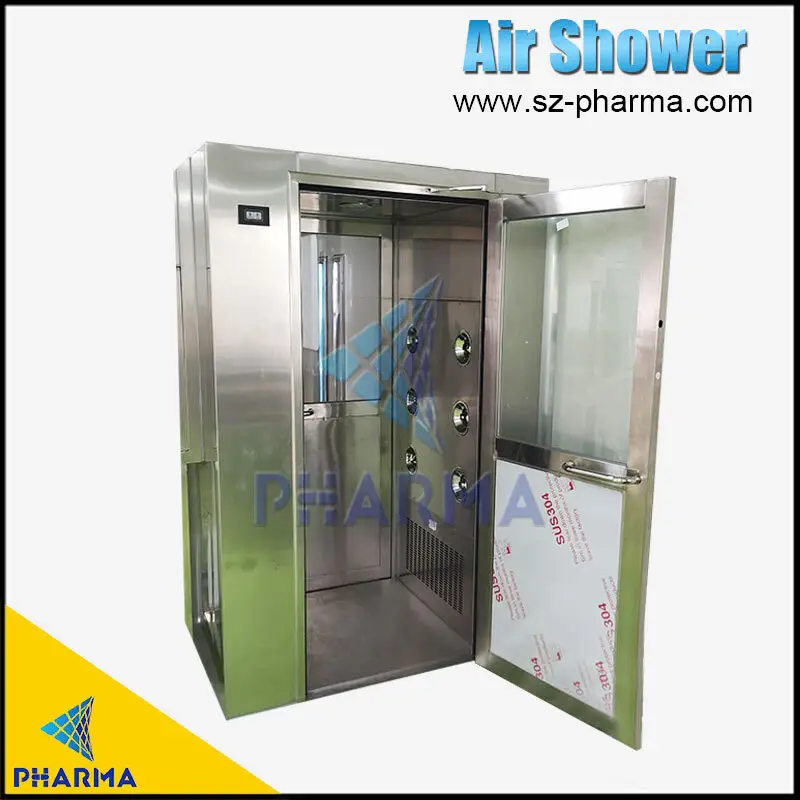

GMP Standard Air Shower for Cargo transfer
AIR SHOWER FOR PERSONAL SPECIFICATIONS:
Model | PH-1300-P1 | PH-1300-PC1 | PH-1300-P2 | PH-1300-P3 |
Outer Dimensions W×D×H(mm) | 1300×1000×2100 | 1300×1500×2100 | 1300×2000×2100 | 1300×3000×2100 |
Inner Dimensions W1×D1×H1(mm) | 800×930×1960 | 800×1430×1960 | 800×930×1960 | 800×930×1960 |
Speed (m/s) | 25~27 | |||
Nozzle No. | 12 | 18 | 24 | 36 |
Structure | Cabin: Pre-painted cold work steel sheet.Stainless steel | |||
Door: 5mm glass and built-in automatic door closer | ||||
Lighting | LED, built-in type | |||
Dust Collection Efficiency | Over 99.99% 0.3μm D.O.P TEST | |||
HEPA Dimension ×Quantity | 595×595×80×2pcs | 595×595×80×2pcs | 595×595×80×4pcs | 595×595×80×4pcs |
Showering Time | 0-99s adjustable(FACTORY SETTING 10S) | |||
Power Supply | 380V 50Hz, 3Phase/220V 60Hz 1Phase | |||
Air Shower is used to blow away dust on clothing, equipments, materials and tools before workers or objects
enter the Clean Room; meanwhile, its Air Lock function may effectively control personnel passing in and out,
as well as act as various levels of buffer room for clean room to prevent cross pollution.
Features:
Completely self-contained, Adjustable nozzles to remove surface contaminants
Perfect for transferring personnel, carts and large equipment
Versatile design allows you position the Air Shower inside or outside the clean room
Dual HEPA Filters remove 99.99% of particles > 0.3 Microns from the air stream
Equipped with interlocking doors, automatically released when power fails
Economical to use and easy maintenance
Emergency Stop buttons on both doors immediately disengage interlocks and halt air shower
Lightweight and modular design enables easy shipping and transfer of the unit
Full range of optional and standard air shower accessories
