Focuses On Professional Cleanroom Project And Pharmaceutical Cleanroom Equipment.

Fingerprint lock cleanroom air shower

Warranty:

1 year

Start Port:

Shanghai port

Size:

Customize

Power:

220V,380V

Packing Details:

Plywood case;pallet

Original:

Suzhou

Material:

Stainless steel 304/316, painted steel

Brand name:

PHARMA CLEAN

Inquiry

Write a Review

After Warranty Service: Video technical support, Online support
Certification: CE
Name: Fingerprint lock air shower
Application: Pharmacy, medical, food industry
Blowing: Double side blowing

Used: Hospital: Laboratory; Food workshop
Door: 5mm Glass
Material: Stainless steel 304/316, painted steel
Showering time: 0-99s
Size: Customize as client request

product-PHARMA-img

Limit Discounts

Limit Discounts

product-Fingerprint lock cleanroom air shower-PHARMA-img

Description

Description

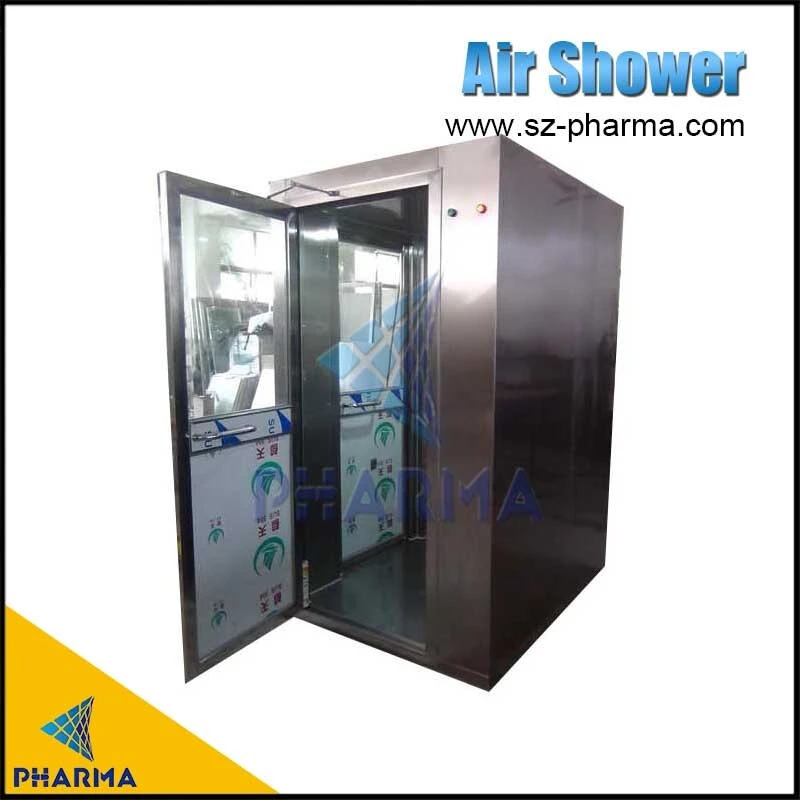

The air shower plays an important role in clean room workshop. Most of Suzhou Pharma cleanroom project equip the air shower equipment no matter what industry. For a changing room, after people change the cleanroom clothes and shoes, they will pass the air shower first, blowing 15 seconds in air shower or more time then could enter into the cleanroom.
For ISO8/ISO7 clean room, it also can install between clean area and unclean area. It’s flexible but must as per GMP standard.

Main Features

1.Photoelectric control, automatic shower.
2. Circulated air design keeps shower area clean in non-shower state.
3. Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.
4. Made as negative pressure and anti-exploding air shower according to users' requirement.
5. Equipped with the device to remove static.

The working principle of the air shower is the internal circulation of the air flow. During the entire air circulation process, the unclean air is sent to the HEPA filter through the fan, and the HEPA filters filtering the dust in the air, then blows out the air.The clean air is blown out through the air shower nozzle, and the wind blown by the nozzle will blow off the dust on the surfaceof people/objects, and then bring the blown dust to the primary filter, thus forming an airflow cycle.

product-PHARMA-Fingerprint lock cleanroom air shower-img

Technical Parameters

Technical Parameters

Model	SZPH001-F
External dimension W×D×H(mm)	120010002180
Internal Dimensions W×D×H(mm)	7509001970
Identification method	fingerprint lock
Lighting	LED light T8
Dust Collection Efficiency	≥99.99%@0.3μm
HEPA Filter ×Quantity	HEPA:H13/ H14x2 piece
Showering Time	0-99s
Power Supply	380V 50Hz

Installation

Installation

product-Fingerprint lock cleanroom air shower-PHARMA-img-1

product-PHARMA-img-1

product-PHARMA-Fingerprint lock cleanroom air shower-img-1

product-PHARMA-img-1

product-PHARMA-img-2

product-Fingerprint lock cleanroom air shower-PHARMA-img-2
