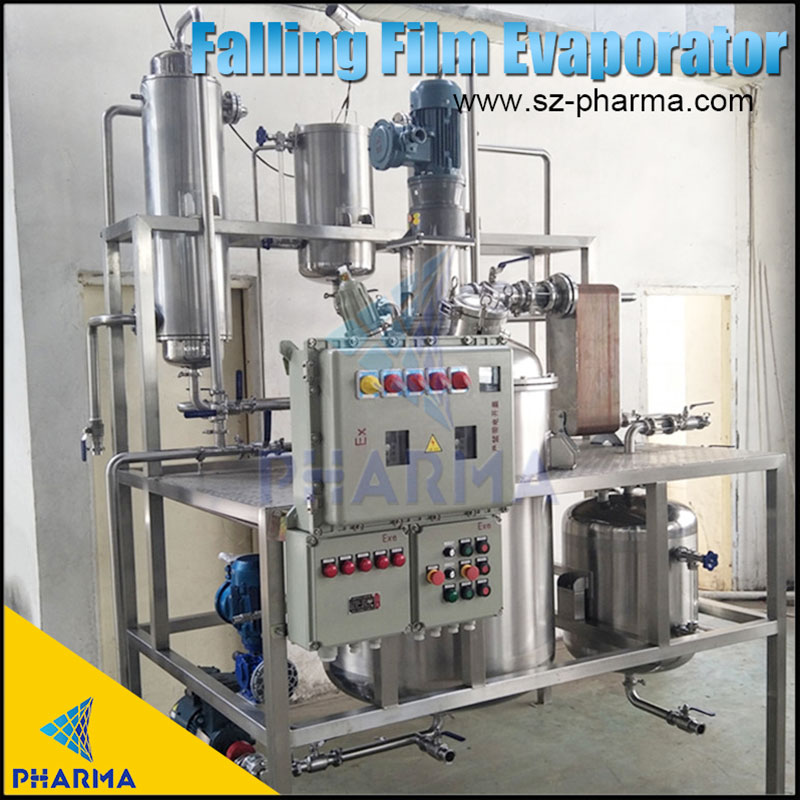

Ethanol Recovery Evaporator Low Temperature Solvent Falling Film Machine

Ethanol Recovery Evaporator Low Temperature Solvent Falling Film Machine
Brand name:
Suzhou, China
T/T; Cash; Alibaba trade assurance
Delivery Time:
15-20 days, depending on the quantity
Supply Ability:
100 sets per month
Start Port:
Packing Details:
Carton packing, metal frame; plywood case

Add success, do you want to check your shopping cart?


  • After Warranty Service:Video technical support, Online support, Field maintenance and repair service

  • Warranty:1 year

  • Certification:CE ISO GMP

  • Power Supply:200~240V

  • Evaporation speed one hour: 30 Gallons/About 120L

  • Usage:Factory

  • Name:Extraction equipment

product-PHARMA-vacuum evaporation equipment-img

product-PHARMA-falling film evaporator manufacturers-img

The main features:
The equipment system operates under negative pressure, with continuous feeding and discharging, heating and evaporation time is short, and it is suitable for evaporation and concentration of heat sensitive materials.
The material is evaporated under vacuum in a fully sealed system, and the concentrated liquid is pollution-free.
The top cover of the heater is equipped with quick-opening device for easy cleaning.
The equipment has compact structure, small floor area and simple operation.

product-falling film evaporator manufacturers-PHARMA-img

1. Evaporation Temperature:40℃~70℃.
2. Steam Pressure:0~0.3Mpa Cooling Water circulation temperature (In20℃ Out 25℃)
3. Processing Ability:Cloud remove 80-95% alcohol from liquid.
4. Machine Material:Contact part all SUS 304.
5. Machine Voltage:As customer required.
6. Operator quantity required:1
7. Heating Method:Steam heating(Recommend)
8. Evaporation Mode:Liquid be film to increase the evaporation area by falling drop.

product-vacuum evaporation equipment-PHARMA-img

Evaporation speed one hour30 Gallons45 Gallons70 Gallons100 Gallons150 Gallons
About 120LAbout 170LAbout 270LAbout 380LAbout 570L
Steam pressure0-0.2Mpa
Vacuum pressure≤0.098Mpa
Condenser area8.5㎡15㎡25㎡35㎡55㎡
Feeding pumpExplosion-Proof Type SUS 304 material
Discharge PumpExplosion-Proof Type SUS 304 material
Vacuum PumpExplosion-Proof Type SUS 304 material
