Features:Low pressure drops
High efficiency
Large dust capacity
Equal airvelocity
Easy To Use Clean Room Filter
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shop Activities
Related Products
Product Description

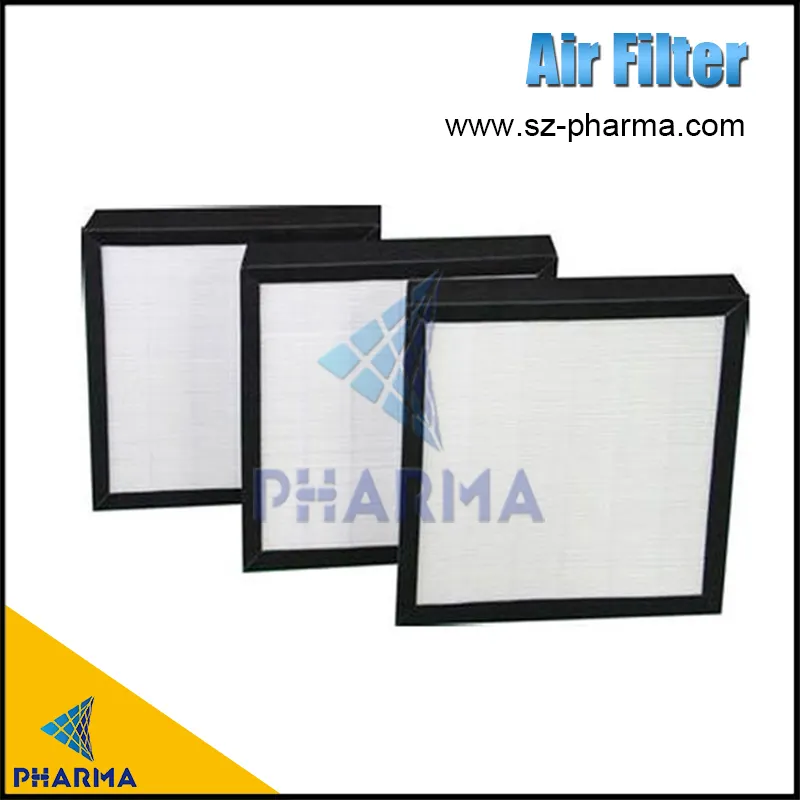

HEPA Filter With Partition
Available for the local air clean under constant Temperature and humidity
NOTES：
Based on consumer's requirements,the special fiters can be made
Model | Outside dimensions (W*H*D)mm | Rated air volume （m³/h） | Initial resistance （Pa） | Efficiency （0.3um） | Weight (kg) |
PHK-4A | 320-320*220 | 400 | 220 | 99.99% | 3.5 |
PHK-5A | 350*350*220 | 500 | 4 | ||
PHK-10B | 610*610*150 | 1000 | 6.5 | ||
PHK-10A | 484*484*220 | 1000 | 8 |
_______________________________________________________________________________________________________
HEPA Filter Without Partition
Suitable for the clean room with high coverage of HEPA filters in the
fields of electron,medicine and food,ect.
Features:
Low pressure drops
High efficiency
Thin in depth
Light weight
Low operation cost
NOTES：
Based on consumer's requirements,the special fiters can be made
Model | Outside dimensions (W*H*D)mm | Rated air volume （m³/h） | Initial resistance （Pa） | Efficiency （0.3um） | Weight (kg) |
PHYS-7A | 610*610*50 | 700 | 220 | 99.99% | 2.8 |
PHYS-10A | 610*610*69 | 1000 | 3.6 | ||
PHYS-18A | 1170*570*69 | 1800 | 7.5 | ||
PHYS--13A-ER | 610*610*90 | 1300 | 4.8 | ||
PHYS--23A-ER | 1170*570*90 | 2300 | 9.2 |
________________________________________________________________________________________________________
Box Type Large Air Volume Filter
USESFinal filters for cleanroom AHU.
Direct to reachair cleanliness CL-10K/10OK.
Suplly air duct system for local clean zones.
Exhaust duct system againsthazardous particles.
Compact air cleaning equipments.
NOTES：
Based on consumer's requirements,the special fiters can be made
Model | Outside dimensions (W*H*D)mm | Rated air volume （m³/h） | Initial resistance （Pa） | Efficiency （0.3um） | Weight (kg) |
PHYW-34A | 610*610*292*12 | 3400 | 250 | 99.99 | 25 |
PHYW-17A | 305*610*292*12 | 1700 | 14 | ||
PHYW-32 | 592*592*292*12 | 3200 | 22 | ||
PHYW-16 | 290*592*292*12 | 1600 | 12 |
________________________________________________________________________________________________________
Temperature Resistant HEPA Filter
USED:
lt is available for the air clean system and under high temperature.Features:Low pressure drops
High efficiency
Large dust capacity
Good refractory
NOTES：
Based on consumer's requirements,the special fiters can be made
Model | Outside dimensions (W*H*D)mm | Rated air volume （m³/h） | Initial resistance （Pa） | Efficiency （0.3um） | Max operating temp |
PHW-10A | 610*610*150 | 1000 | 99.99 | ||
PHW-7A | 610*457*150 | 700 | |||
PHW-10B | 610*610*150 | 1000 | 99.95 | ||
PHW-7B | 610*457*150 | 700 |
