| Feeding Mode | Friction feed |
| Power supply | 220V 50/60Hz 0.4A 40W |
| Paper Size | Max.297(W)x630(L)mm Min.68 (W)x128(L)mm |
| Paper Type | 50g-180g Fine quality paper, Recycled paper |
| Folding table quantity | 2 |
| Counter | 4 digits (ascending), 3 digits (descending) |
| Speed | 0-200 sheets/min. (220V, A4 fine quality paper 80 g/m2) |
| Paper loading capacity | 500sheets |
| Dimensions | 890 (W)× 480 (D)×520 (H)mm |
| Net weight | 35kg |

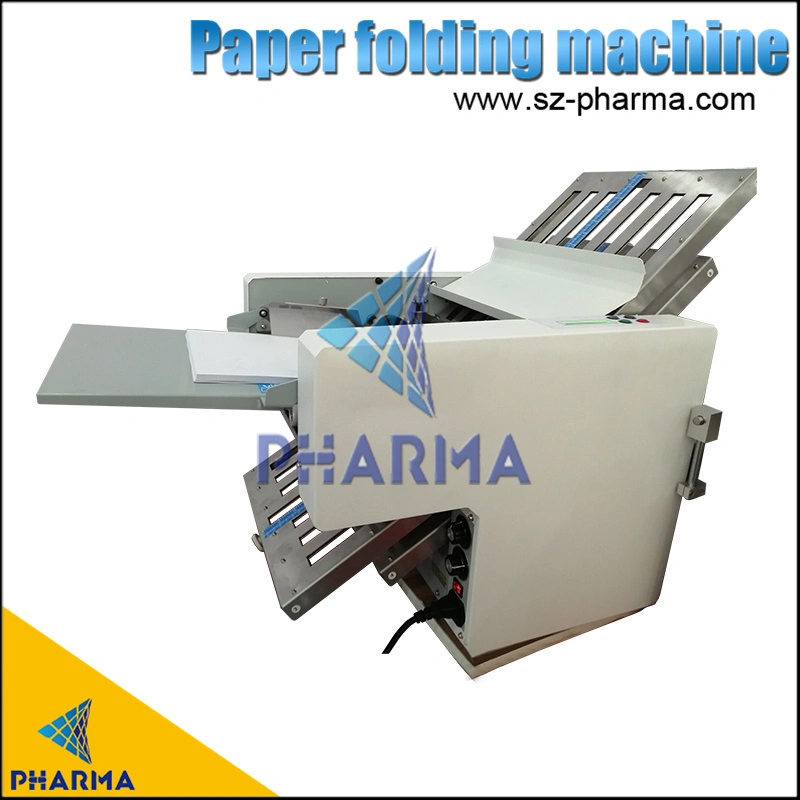

The automatic paper folding machine can be used to fold paper of various sizes and thicknesses
within the design range, and can be folded into the pattern shown in the legend. Easy adjustment,
smooth paper feeding, stepless speed regulation, light and efficient. Suitable for fast printing centers,
manufacturing companies, official correspondence documents, business letters.
Main features:
1. The paper folding machine adopts imported infrared sensor switch, which has high sensitivity, accurate paper separation
and no double sheet;
2. The paper feeding pressure is adjusted in four gear positions to meet the different specifications of paper feeding smoothly,
suitable for coated paper folding;
3. There is a counter to count the number of origami, and automatically stop when the set value is reached;
4. This machine adopts advanced full belt gearless transmission system with low noise;
5. With circuit overload protection function, it will automatically power off and stop when overloaded.
| Feeding Mode | Friction feed |
| Power supply | 220V 50/60Hz 0.4A 40W |
| Paper Size | Max.297(W)x630(L)mm Min.68 (W)x128(L)mm |
| Paper Type | 50g-180g Fine quality paper, Recycled paper |
| Folding table quantity | 2 |
| Counter | 4 digits (ascending), 3 digits (descending) |
| Speed | 0-200 sheets/min. (220V, A4 fine quality paper 80 g/m2) |
| Paper loading capacity | 500sheets |
| Dimensions | 890 (W)× 480 (D)×520 (H)mm |
| Net weight | 35kg |
The automatic paper folding machine can be used to fold paper of various sizes and thicknesses
within the design range, and can be folded into the pattern shown in the legend. Easy adjustment,
smooth paper feeding, stepless speed regulation, light and efficient. Suitable for fast printing centers,
manufacturing companies, official correspondence documents, business letters.
Main features:
1. The paper folding machine adopts imported infrared sensor switch, which has high sensitivity, accurate paper separation
and no double sheet;
2. The paper feeding pressure is adjusted in four gear positions to meet the different specifications of paper feeding smoothly,
suitable for coated paper folding;
3. There is a counter to count the number of origami, and automatically stop when the set value is reached;
4. This machine adopts advanced full belt gearless transmission system with low noise;
5. With circuit overload protection function, it will automatically power off and stop when overloaded.
