Customize Cargo Air Shower For Clean Room

这里可以自定义设置
Customize Cargo Air Shower For Clean Room
B站不支持收货地址
B站不支持库存规格
Model:
PH-1300-P1
MOQ:
1 SET
Original:
Suzhou, China
Price:
USD 3000-5000/Sets
Payment:
T/T; Cash; Alibaba trade assurance
Delivery Time:
15-20 days,depending on the quantity
Supply Ability:
50-100 Sets/per month
Start Port:
Shanghai
Packing Details:
Carton packing, metal frame; plywood case
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障


  • After Warranty Service: Video technical support, Online support

  • Used: GMP clean room; Changing Room: Clean Booth

  • Size: Customize as client request

  • Application: Pharmacy, medical, food industry

  • Blowing: Top, side blowing

  • Certification: CE ISO GMP

  • Name: Air shower room

  • Door: 5mm Glass

  • Material: Stainless steel 304/316, painted steel

  • Showering time: 0-99s


product-Customize Cargo Air Shower For Clean Room-PHARMA-img


Limit Discounts

Limit Discounts


product-air shower room-PHARMA-img


Description

Description


Air shower are specialized anti-chambers through which personnel must pass before entering cleanrooms in order to avoid contamination. Decontamination is done by clearing off dust and dirt particles from cargo of cleanroom to minimize contamination of equipment or products.

It is used to blow away dust on clothing, equipments, materials and tools before workers or objects enter the Clean Room; meanwhile, its Air Lock function may effectively control personnel passing in and out, as well as act as various levels of buffer room for clean room to prevent cross pollution.


product-PHARMA-air shower room-img
Characteristics

1.Completely self-contained, Adjustable nozzles to remove surface contaminants.
2.Perfect for transferring personnel, carts and large equipment.
3.The cargo air shower room adopts a modular design, which can be assembled into various lengths of air shower according to actual needs.
4.Dual HEPA Filters remove 99.99% of particles > 0.3 Microns from the air stream.
5.Equipped with interlocking doors, automatically released when power fails.
6.Emergency Stop buttons on both doors immediately disengage interlocks and halt air shower.

Technical Parameters

Technical Parameters


ModelPH-ASC
Filter efficiency≥99.99%@0.3μm
Speed≥25
Showering Time0-99 adjustable
Nozzle No.24 pieces
Internal Dimensions W×D×H(mm)1400*2000*2000mm
External dimension W×D×H(mm)1900*2100*2100mm
StructureCabin: Pre-painted cold work steel sheet; Stainless steel 304

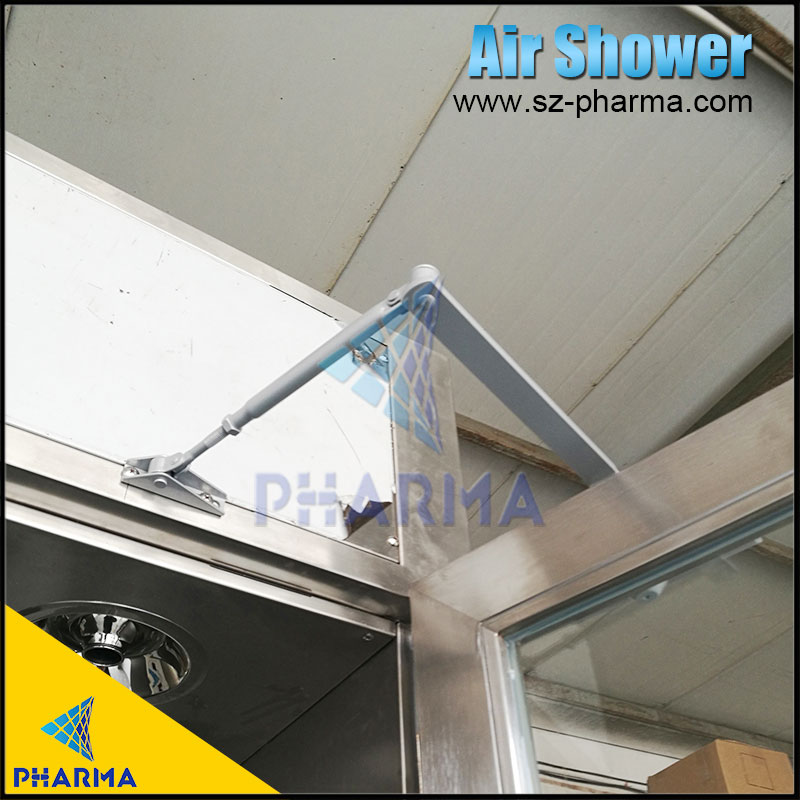

Door:  5mm glass and built-in automatic door closer
Power Supply380V 50Hz, 3Phase/220V 60Hz 1Phase
Pre Filter Dimension ×Quantity650x400x15x3 piece
HEPA Dimension ×Quantity610x610x69x3 piece

Installation

Installation


product-air shower system-PHARMA-img

product-PHARMA-air shower system-img


product-PHARMA-Customize Cargo Air Shower For Clean Room-img


product-Customize Cargo Air Shower For Clean Room-PHARMA-img-1


product-air shower room-PHARMA-img-1

product-PHARMA-air shower room-img-1

product-air shower system-PHARMA-img-1


product-PHARMA-air shower system-img-1
