After Warranty Service:Video technical support, Online support
Warranty:1 year
Certificate:ISO9001
Filtration Efficiency:HEPA H14 99.997% @ 0.3 micron
Size:Customsize
air speed:0.3-0.6m/s
Type:ceiling filter box
Power supply:none
Limit Discounts
Description

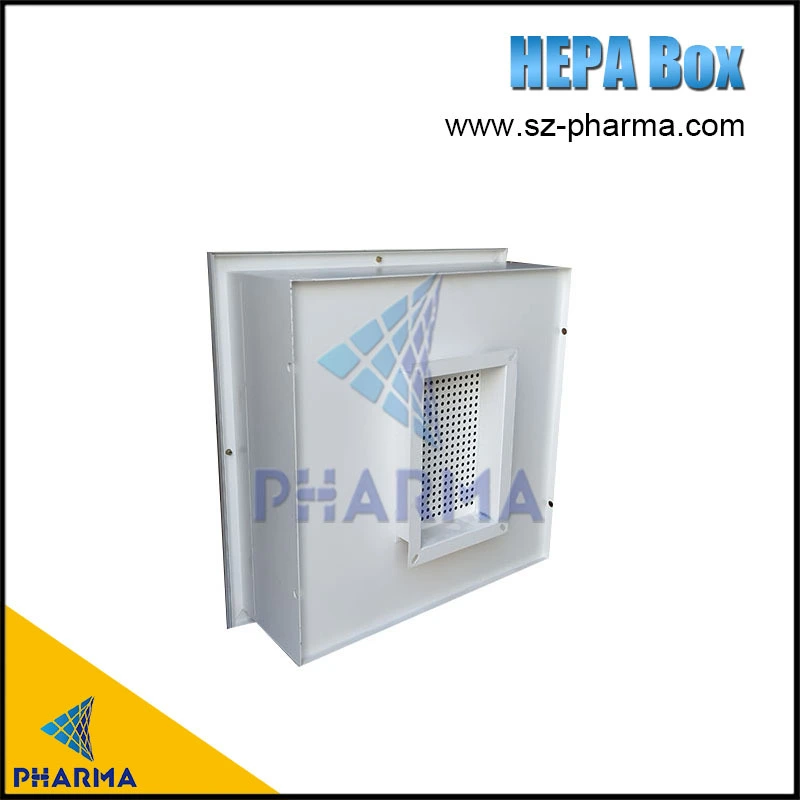

The HEPA box is an ideal terminal filter device for class100/1000/10000 and 100000 grade purifying air conditioning system, which can be widely used in the fields of medicine, sanitation, electronics, pharmaceutical, chemical industry cleanrooms.
The HEPA box includes a static pressure box, a diversion plate, a high-efficiency filter, and an air flow regulating valve. The interface with the air duct can be top-connected or side-connected.
 | Characteristics 1.Test ports for pressure drop, test groove and aerosol injection 2.Available air flow adjustment damper fitted to the spigot 3.Available in various construction and dimensions 4.Simplified maintenance and disinfection 5.Easily removable air outlets 6.Available powder coated or stainless steel 7.Central fixing for diffuser 8.Duct Connection Type: Top, side, Z 9.Powder coated or SS 304 10.Special production with low construction height |
Technical Parameters
| Housing Material | Powder Coated Steel Plate or SS304 | ||
| Filter Type | Aluminum Pleat, Mini-Pleat or Gel Type | ||
| Filtration Efficiency | EAE12)>99 5%, HEPA(H14)299 95%9 or ULPAU7299 9999 @ 01.0.3um | ||
| Diffuser Type | Perforated or Swirl | ||
| Spigot Side | Top, side orZ | ||
| Box Dimension | 455x455x250 | 595x595x250 | 695x695x250 |
| Filter Size | 410x410x93 | 550x550x93 | 650x650x93 |
| Air Duct Connection Size | 200x200 | 320x200 | 320x250 |
| Cutout Size | 465x465 | 605x605 | 705x705 |
| Air Volume | 500m³/h | 1000m³/h | 1500m³/h |
Installation
