Product Information
Company Profile

Overview

Quick Details

Condition:New

Applicable Industries:Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

Weight (KG):60

Showroom Location:Egypt, Turkey, United Kingdom, United States, Italy, Germany, Brazil, Saudi Arabia, Pakistan, India, Russia, Spain, Thailand, South Korea, Chile, UAE, Algeria, Romania, South Africa, Uzbekistan, Tajikistan, Japan, Malaysia, Australia

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Marketing Type:New Product 2021

Warranty of core components:1 Year

Core Components:Fan

Place of Origin:Jiangsu, China

Brand Name:SUZHOU PHARMA MACHINERY

Warranty:1 Year

Product name:Pass box/Transfer window

Material:Stainless Steel 304

Size:Customized Size

Type:Static/Dynamic

Application:Clean Room

Interlock:Mechanical interlock/electronic interlock

Certification:CE Certification

Noise:≤60dB

Clean time:1-99s(Adjustable)

Wind speed:0.36~0.54 m/s(Adjustable)

Video Description

Product Description

The pass box(transfer window) is an auxiliary equipment of the clean room, which is mainly used for the transfer of small items between the clean area and the clean area, and between the clean area and the non-clean area, so as to reduce the number of door openings in the clean room. The pass box is made of stainless steel plate, smooth and clean. The double doors are interlocked to effectively prevent cross-contamination, and are equipped with electronic or mechanical interlocking devices.

Our pass box is divided into static pass box and dynamic pass box, you can choose according to your needs.

product-Clean Room MechanicalElectrical Interlock Dynamic Pass Box with Laminar Flow-PHARMA-img

Specification

Model	PH-600
*Working area(WHD)*	*600600600*
*External Dimension(WHD)*	*800680760*
Custom	Allow
Interlock system	Electronic interlock/mechanical interlock
Sight Glass Dimension	5mm Tempered Glass
HEPA	Mechanical Sealing/Gel-type Sealing
Diff.Pre.Gauge	Optional
UV Lamp	Optional 1pcs
Lighting Lamp	Optional 1pcs
Power	AC220V,50HZ(Customized)
Material	1.SUS304; 2.Powder coated of extrrnal steel plate, SS304 of inner side

Drawing

Details Images

product-Clean Room MechanicalElectrical Interlock Dynamic Pass Box with Laminar Flow-PHARMA-img-1

Static pass box

The stainless steel clean room pass box adopts the ss304 stainless steel as the material for interior and exterior product body and the two doors.

1.Made of 304 stainless steel, beautiful, effectively avoiding rust problems.

2.The double doors are made of double-layer tempered glass. The surface is flat, not easy to accumulate dust and easy to clean.

3.The double door adopts the built-in type, which is embedded in the box body, and the outer surface is flat.

4.Double doors adopt mechanical interlock device, two doors cannot be opened at the same time.

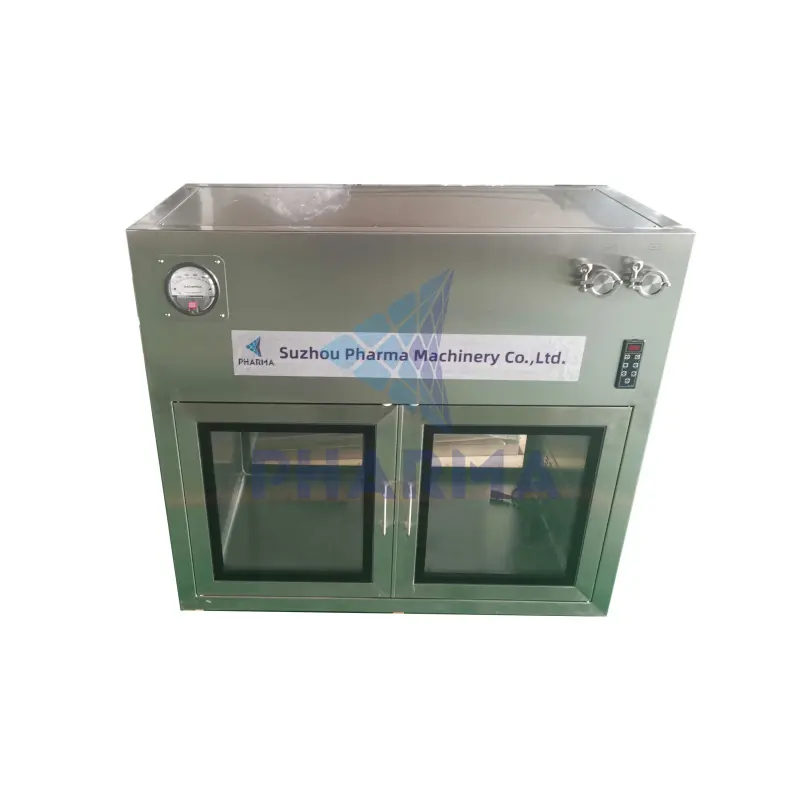

Dynamic pass box

lt is widely used in the clean environment such as micro-electronic, laboratory national defense,precise instrument bio-pharmaceuticals,photo-electric,aseptic packaging field and so on.

1.Made of 304 stainless steel, beautiful, effectively avoiding rust problems.

2.The double doors are made of double-layer tempered glass. The surface is flat, not easy to accumulate dust and easy to clean.
3.The double door adopts the built-in type, which is embedded in the box body, and the outer surface is flat.

4.Double doors adopt electronic interlocking device, two doors cannot be opened at the same time.

5.Equipped with differential pressure gauge, real-time monitoring of life.

6.Equipped with PAO detection port, which can detect the integrity of the high efficiency filter.

7.Self-cleaning time is adjustable, with alarm function

Clean Room Related Products

Clean room

It refers to the removal of pollutants such as particles, harmful air and bacteria in the air within a certain space, and the indoor temperature,cleanliness, indoor pressure, air velocity and air distribution, noise and vibration,lighting and static control. A specially designed room for a particular requirement.

Air shower

The air shower is a necessary channel to enter the clean room, which can reduce the pollution problems caused by entering and leaving the clean room. The air shower is a highly versatile local purification equipment installed between the clean room and the non-clean room. When people and goods enter the clean area, they need to be blown in the air shower.

Packing & Delivery

product-Clean Room MechanicalElectrical Interlock Dynamic Pass Box with Laminar Flow-PHARMA-img-3

Company Profile

Suzhou Pharma Machinery Co.,Ltd. is one of the clean room engineering enterprises with the longest professional development, the earliest market-oriented operation in China.Our company has been established for 13 years, and has built more than 500 clean room projects all over the world, which has attracted the attention of the industry. With the precipitation of time, our company has been recognized by more people in the same industry, and enterprises from all over the country have come to our company for communicate.

1.We offer projects as per GMP regulations. As being pioneers in this field, the solutions from our company is readily accepted by the customers.

2.Our company has a team of experienced personnel to design and installation clean room professionally.

3.We have the qualifications and experience to provide a comprehensive validation service of clean room to the requirements of all the current standard.

product-Clean Room MechanicalElectrical Interlock Dynamic Pass Box with Laminar Flow-PHARMA-img-4

FAQ

1.Does the clean room cost include installation and freight?
We will quote EXW,CIF or CFR price for reference. The quote will show the installation fee and freight according to your address.

2.How does a clean room work?
A clean room provides a controlled, isolated environment for handling contamination sensitive substances or for protecting the
exterior environment from dangerous substances in the controlled area. The density of submicron and larger airborne particle
contamination inside a clean room is kept within tightly controlled limits by forcing clean, filtered air into the clean room.

3.Can I get special design and function?
Yes, We are very pleased to be able to provide you with new designs, or to manufacture according to your drawings.

4.How can you guarantee high level manufacturing process and installation?

We are professional suppliers for more than 13 years.We have the best designers,engineers.We will design and manufacture according to the standards of the cleanrooms. We have fullexperience installation workers, they can make perfect buildings with professional skills.

5.What industry of clean room you can supply?

Hospital, laboratory, pharmaceutical, medical, electronic, biological, food and beverage, cosmetics industry,etc.

6.What products does your company specialized in?
Our company specialized in clean room turnkey projects, prefab houses, and air clean equipments.
