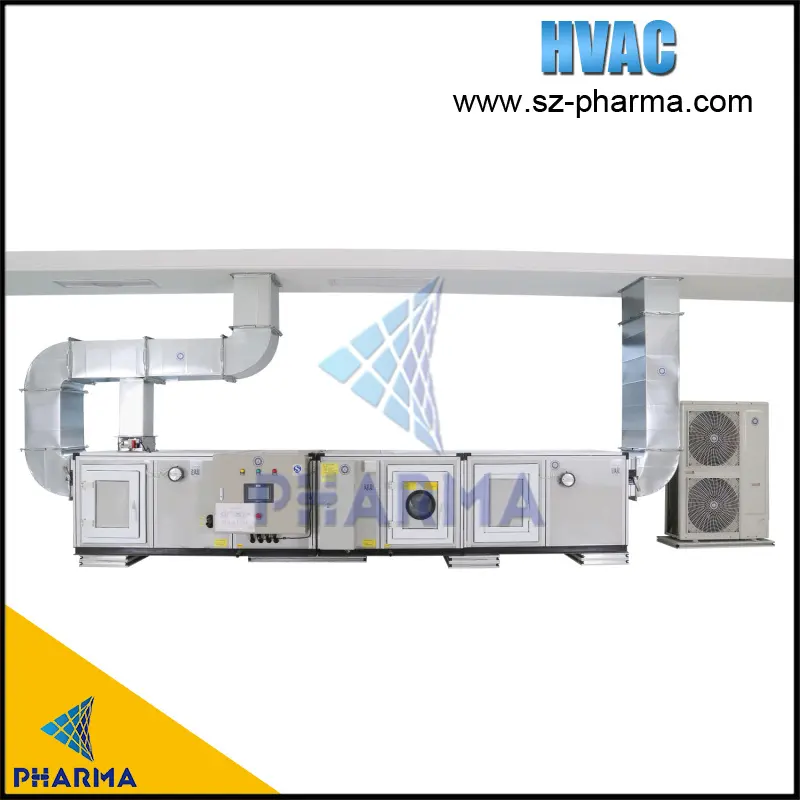

Clean Room Heating Ventilating And Air Conditioning Hvac System

Product Information

After Warranty Service: Video technical support, Online support, Field maintenance and repair service
Used: GMP clean room; Changing Room: Clean Booth; Hospital: Laboratory; Food workshop

Certification: CE ISO GMP
Name: HVAC System

product-PHARMA-img

Limit Discounts

Limit Discounts

product-Clean room Heating Ventilating and Air Conditioning HVAC System-PHARMA-img

Description

Description

Air conditioning system is a control system including temperature, humidity, air cleanliness and air circulation, which is called HVAC It is a control system including temperature, humidity, air cleanliness and air circulation; Heating ventilation and air conditioning.

Characteristics

1. Various installation forms

According to the site conditions, a variety of unit forms can be designed to facilitate installation. It can be divided into horizontal, vertical, ceiling, etc.

2. Mixing of fresh air and return air

According to the field use conditions, the equipment can be connected with outdoor fresh air, indoor return air, or mixed with fresh air and return air.

3. Stable, reliable and practical

The panel of the unit adopts polyurethane foam panel as a whole, with high overall strength, good thermal insulation performance, excellent sound insulation performance and low air leakage rate.

4. Multiple functional sections meet the requirements

A variety of functional sections such as high-efficiency filtration, ozone, electrode humidification and reheating can be selected by users to meet different purification requirements.

Technical Parameters

Technical Parameters

1	Chillers	• Cools water used in HVAC systems •Requires uninterrupted power • HVAC blows only warm air without chiller •lakes a long time to restart after loss of power
2	Heat Exchanger	• Extracts heat from system
3	Air Handler	• Forces air throughout ductwork
4	Cooling Tbwer	• Dissipates heat from chiller
5	Dehumidification	• Meet the most stringent moislure/humidity control needs
6	air condition system Air Handling Units	• As part of a heating,ventilation,and cooling (HVAC system) • Will be connected to a ductwork ventilation system that distributes the conditioned air through the building and returns it to the AHU
7	HEPABOX	• Applies to different classes & structure uneven clean rooms. • Gel mini-pleat HE PA filter with better sealing
