Class D Portable Clean Room Tent PVC curtain And PVC Sheet

这里可以自定义设置
product-PHARMA-img
product-PHARMA-img
product-PHARMA-img
product-PHARMA-img
product-PHARMA-Class D Portable Clean Room Tent PVC curtain And PVC Sheet-img
product-Class D Portable Clean Room Tent PVC curtain And PVC Sheet-PHARMA-img-1
product-PHARMA-img-1
product-PHARMA-img-1
Class D Portable Clean Room Tent PVC curtain And PVC Sheet
B站不支持收货地址
B站不支持库存规格
Brand name:
PHARMA CLEAN
Application:
Medical, pharmaceutical,health product, capsule production
Original:
Suzhou,China
Price:
USD 200-300/SQM
Payment:
T/T
Delivery Time:
15-20 working days
Start Port:
Shanghai
Packing Details:
Metal frame, plywood case
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障


  • Service:Video technical online support, Field maintenance

  • Warranty:1 year

  • Certification:CE ISO GMP

  • Usage:Hospital/Pharmacy/Medical/workshop

  • Floor:clean room PVC 2mm Homogeneous floor

  • Lighting:LED (CE UL)

  • Clean grade:From Class100-100000

  • Name: Clean room tent

  • Power Supply:AC 100~240V 1 phase,AC 220~480V 3 phase

  • Type:Vertical Air Flow


product-PHARMA-img


Limit Discounts

Limit Discounts


product-Class D Portable Clean Room Tent PVC curtain And PVC Sheet-PHARMA-img


Description

Description

The clean grade is Class D(100,000), used for tablet and capsule production workshop. The whole room have gowning area, air lock, dispensing and sampling room, blister packing room, finish product area.

The project adopt PVC sheet as wall and roof, PVC curtain as entrance door, ceiling with LED light and FFU units.

Clean room height is 9 feet, the size can be customize according actual condition. Generally from 2.15- 2.8 meter.

The support frame are aluminum alloy profile, L shape and I shape connect parts. Before material send out we will pre set up, the frame will be assembled and do electric test. Customer can install it easily by our instruction step and manual.


product-PHARMA-img
Characteristics

1 Aluminum alloy profile frame, L shape, I shape connect parts


2 Wall material: PVC curtain, PVC sheet, acrylic board, sandwich panel


3 Clean room solution, online installation guide, drawing design and shipment service


4 Cleanroom equipment: air shower channel, air lock, pass box, weighing room, HVAC system


Technical Parameters

Technical Parameters


CleanlinessClass A- D(100, 1000, 10000, 100000)
Project include1. Structure: aluminum alloy profile, stainless steel tube
2. Wall option: ESD sheet(anti-static gird curtainn), PVC curtain, transparent board, sandwich panel
3.HVAC: AHU, Ducting, Piping, Chiller, dehumidifier, etc.
4.Auto-control: PLC Controller, Sensors for Humidity and Temperature, Control Panel
5. Process Piping System: Gas, Water Pipeline
Temperature&HumidityAs clients request
ApplicationPharmaceutical Industry,workshop,food factory,medical,biology laboratory
SuitableTablet production/ bottle filling/ oil extraction/ food/LCD repaire
Our ServiceProfessional Consultation, User-friendly English Sofaware, 24 hours technical support,Foreign installation and commissioning
product-PHARMA-imgCustomer installation show

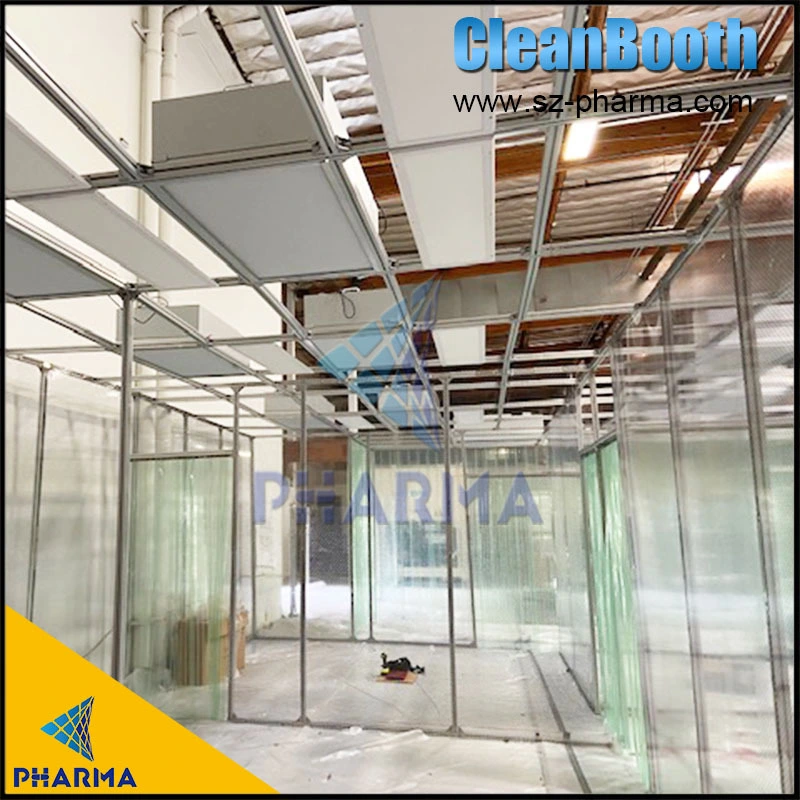

product-PHARMA-imgFrame and PVC wall installation process
product-PHARMA-Class D Portable Clean Room Tent PVC curtain And PVC Sheet-imgClean room PVC curtain
product-PHARMA-img-1Ceiling with FFU units and LED light

Installation

Installation


product-Class D Portable Clean Room Tent PVC curtain And PVC Sheet-PHARMA-img-1

product-PHARMA-img-1


product-PHARMA-img-1


product-PHARMA-img-1


product-PHARMA-Class D Portable Clean Room Tent PVC curtain And PVC Sheet-img-1

product-PHARMA-img-2

product-Class D Portable Clean Room Tent PVC curtain And PVC Sheet-PHARMA-img-2


product-PHARMA-img-2


In order to know your requirement, please fill the following table carefully and supply CAD layout, so that we can provide correct scheme and quotation, thank you!
