Class 100 FFU Series Fan Filter Unit

Class 100 FFU Series Fan Filter Unit

Class 100 FFU Series Fan Filter Unit

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Description

A fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to clean rooms, laboratories, medical facilities or micro-environments by removing harmful airborne particles from recirculating air.The units are installed within the system's ceiling or floor grid. Large clean rooms require a proportionally large number of FFU, which in some cases may range from several hundred to several thousand.Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.

Fan filter unit
Model
FFU-2*2
FFU-2*4
FFU-4*4
Module size(W x L x H)
575*575*250mm
1175*575*250mm
1175*1175*250mm
Air flow
900
1000
1200
Average velocity(m/s)
0.3-0.5
0.3-0.5
0.3-0.5
Noise dB
52
52
52
Pressure(pa)
97(10mmAq)
97(10mmAq)
97(10mmAq)
Weight(kg)
27.5
34
45.5
Power(W)
100
175
250
FAQ
1. What's the capable of a flow rate?  Rated wind speed is 0.35 - 0.55 m/s
2. Does the unit have a multi-speed or variable speed? 220v unit is multi speed, 110V unit is 3 variable speed.
3. What type of motor do you use, and is it a brushed or brushless motor?
220v unit is brushed motor, 110v is brushless motor
4. How many units can you fit on one full pallet?
The pallet size is according to the unit quantity, the package can be customize size.
5. Do you have a recommended shipping method?
There are two shipping method: by sea or by express, more 1 set recommend by sea shipping, it's the most cost effective
product-PHARMA-Class 100 FFU Series Fan Filter Unit-img

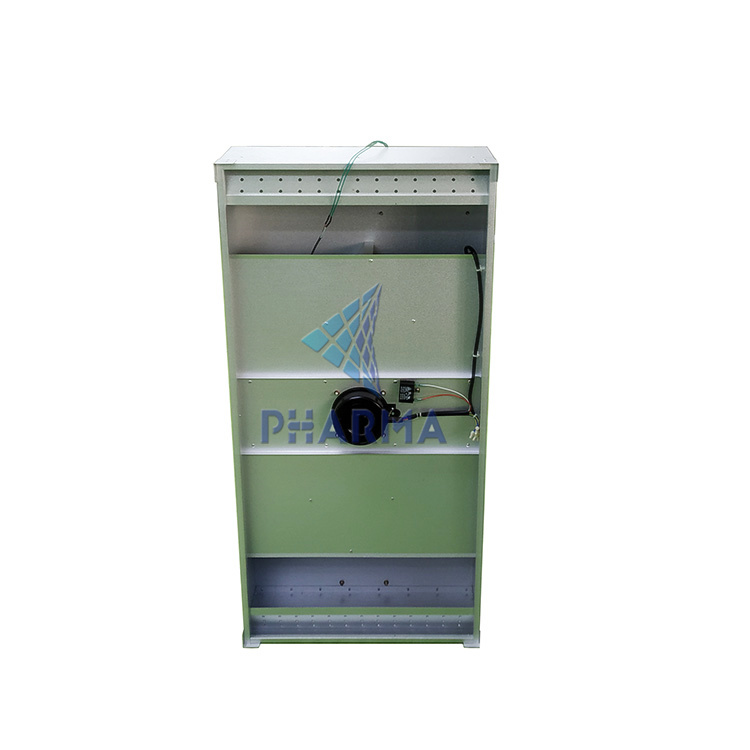

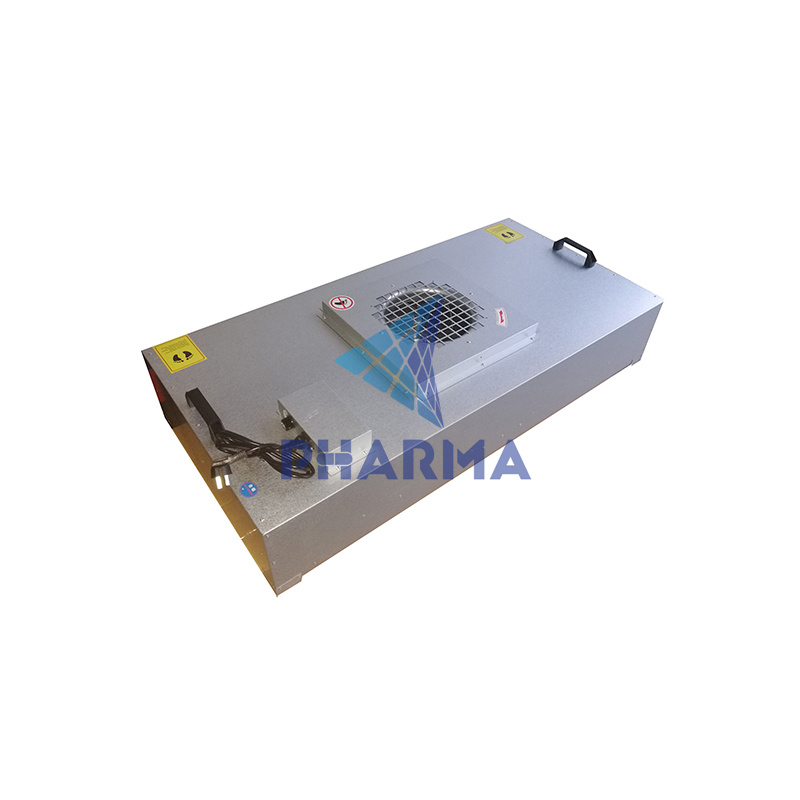

Detailed Images
product-Class 100 FFU Series Fan Filter Unit-PHARMA-img
product-PHARMA-img
Main Features

1.Diversified design

2.The unit appearance is simple and generous

3.Equipped with high quality, high efficiency and low noise outer rotor backward inclined centrifugal blower

4.Optimized internal current sharing designed

5.With stable and multi velocity regulation function

6.With functions perfect large scale group control operating system

7.Various functions of accessories for options
