China Manufacturer Hepa Filter In Laminar Flow

China Manufacturer Hepa Filter In Laminar Flow

China Manufacturer Hepa Filter In Laminar Flow

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Related Products
Shop Activities
Product Description

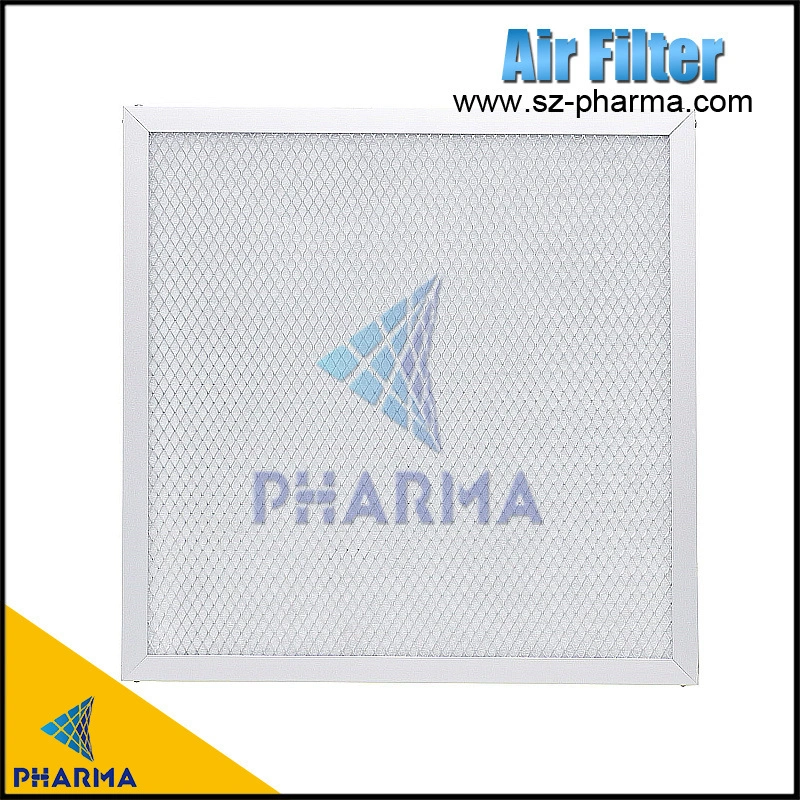

HEPA Filter With Partition
Available for the local air clean under constant Temperature and humidity

Features:Low pressure drops High efficiency Large dust capacity Equal airvelocity
product-PHARMA-img

NOTES:

Based on consumer's requirements,the special fiters can be made
Model
Outside dimensions
(W*H*D)mm
Rated air volume
(m³/h)
Initial resistance
(Pa)
Efficiency
(0.3um)
Weight
(kg)
PHK-4A
320-320*220
400



220



99.99%
3.5
PHK-5A
350*350*220
500
4
PHK-10B
610*610*150
1000
6.5
PHK-10A
484*484*220
1000
8

_______________________________________________________________________________________________________
product-PHARMA-img
HEPA Filter Without Partition

Suitable for the clean room with high coverage of HEPA filters in the fields of electron,medicine and food,ect.

Features:

Low pressure drops

High efficiency

Thin in depth

Light weight

 Low operation cost

NOTES:

Based on consumer's requirements,the special fiters can be made
Model
Outside dimensions
(W*H*D)mm
Rated air volume
(m³/h)
Initial resistance
(Pa)
Efficiency
(0.3um)
Weight
(kg)
PHYS-7A
610*610*50
700


220


99.99%
2.8
PHYS-10A
610*610*69
1000
3.6
PHYS-18A
1170*570*69
1800
7.5
PHYS--13A-ER
610*610*90
1300
4.8
PHYS--23A-ER
1170*570*90
2300
9.2
________________________________________________________________________________________________________
Box Type Large Air Volume Filter
USESFinal filters for cleanroom AHU.
Direct to reachair cleanliness CL-10K/10OK. Suplly air duct system for local clean zones. Exhaust duct system againsthazardous particles. Compact air cleaning equipments.
product-PHARMA-China Manufacturer Hepa Filter In Laminar Flow-img

NOTES:

Based on consumer's requirements,the special fiters can be made
Model
Outside dimensions
(W*H*D)mm
Rated air volume
(m³/h)
Initial resistance
(Pa)
Efficiency
(0.3um)
Weight
(kg)
PHYW-34A
610*610*292*12
3400


250


99.99
25
PHYW-17A
305*610*292*12
1700
14
PHYW-32
592*592*292*12
3200
22
PHYW-16
290*592*292*12
1600
12
________________________________________________________________________________________________________
product-PHARMA-img-1
Temperature Resistant HEPA Filter
USED:
lt is available for the air clean system and under high temperature.
Features:Low pressure drops
High efficiency
Large dust capacity
Good refractory

NOTES:

Based on consumer's requirements,the special fiters can be made
Model
Outside dimensions
(W*H*D)mm
Rated air volume
(m³/h)
Initial resistance
(Pa)
Efficiency
(0.3um)
Max operating temp
PHW-10A
610*610*150
1000


220

99.99

250℃
PHW-7A
610*457*150
700
PHW-10B
610*610*150
1000

99.95

350℃
PHW-7B
610*457*150
700
product-PHARMA-img-1
Mini-pleat HEPA filter sump(the sump anti tank)
USED:
DOP test for a variety of high-grade end of the filter

Features:
Low pressure drops

High efficiency

Large dust capacity

Equal air velocity

Sealing performance


NOTES:

Based on consumer's requirements,the special fiters can be made
Model
Outside dimensions
(W*H*D)mm
Rated air volume
(m³/h)
Initial resistance
(Pa)
Efficiency
(0.3um)
Weight
(kg)
PHYSC-5A
434*434*90
500



220



99.99
3.5
PHYSC-10A
584*584*90
1000
4.5
PHYSC-15A
664*664*90
1500
6
PHYSC-20A
949*664*90
2000
9
PHYSC-22A
989*667*90
2200
10
