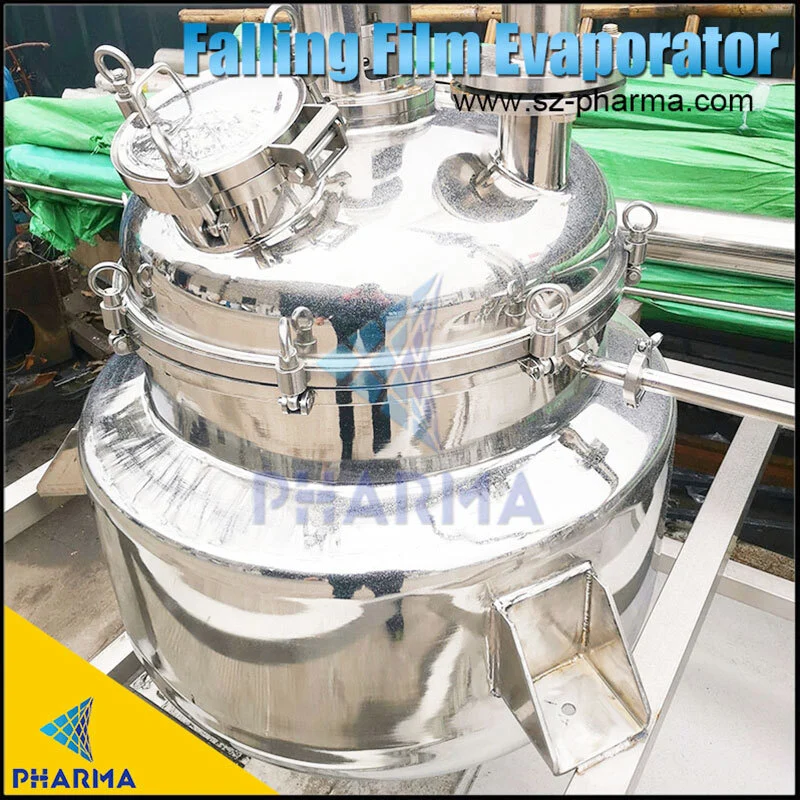

CBD Crude Oil Low Temperature High Speed Falling Film Ethanol Recovery Evaporator Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
2.Steam Pressure:0~0.3Mpa Cooling Water circulation temperature (In20℃ Out 25℃)
3.Processing Ability:Cloud remove 80-95% alcohol from mixtrue liquid.
4.Machine Material:Contact part all SUS 304/316 stainless steel.
5.Machine Voltage:As customer required.220V 380V 440V 480V
6.Operator quantity required:1~2
7.Heating Method:Steam heating(Recommend)
8.Evaporation Mode:Liquid be film to increase the evaporation area by falling drop.
9.The main features:
The equipment system operates under negative pressure, with continuous feeding and discharging, heating and evaporation time is short, and it is suitable for evaporation and concentration of heat sensitive materials.
The material is evaporated under vacuum in a fully sealed system, and the concentrated liquid is pollution-free.
The top cover of the heater is equipped with quick-opening device for easy cleaning.
The equipment has compact structure, small floor area and simple operation
Machine parameters
Mode | SHF-50 | SHF-100 | SHF-200 | SHF-300 | SHF-500 | ||||
Evaporation Ability One Hour | 50L /H | 100 /H | 200L/H | 300L/H | 500L/H | ||||
Evaporation Temperature |                                                                             45-80℃ | ||||||||
Heating Resource |                                                    Steam Heating(Recommand) | ||||||||
Condensor Chilling |                                           5℃ low temperature chiller or tap water | ||||||||
Detailed Images
Packing & Delivery
SUZHOU PHARMA MACHINERY CO.,LTD.'s technology and services are at the leading level in the industry in China.
SUZHOU PHARMA MACHINERY CO.,LTD.'s customer service can stay focused on its goals to achieve the right balance.
