Aseptic sterility isolator system medicalsterilization system

GMP aseptic sterility isolator system for labrotary/clean room

Production description

A sterile isolator is an effective way to reduce the risk of false positives in a sterile test. A sterile test isolator can be placed in a Class C or D environment, resulting in a significant reduction in the QC laboratory environment and a simplified Of the clothes and other environments.

Application

Uses: sterile detection, positive bacteria detection, high sensitivity, high activity of the material sampling, weighing, packaging, etc., on the material and the operator double protection.

Specifications

1. Stainless steel and tempered glass composed of hard wall structure, the internal environment for the dynamic A-level;

2. Use gloves to operate, gloves optional thickening resistant to damage or thin style;

3. Use H14-class high efficiency filter, through the PAO scan leak test;

4. System reserved for hydrogen peroxide (VHP) generator interface and valves, optional hydrogen peroxide steam generator for high levels of sterilization, hydrogen peroxide on the separator air and exposed surface can reach 106 spores Off effect;

5. Through a variety of ways, such as the air chamber, with the RTP system, such as the delivery compartment to achieve the safe entry and exit of goods;

6. Built-in power supply can be installed in the isolator, can also be installed with a valve of compressed air connector and cleaning water connector for water and intake;

7. System with Siemens logic controller (PLC) for fully automated control of pressure, air volume, and with loss of pressure alarm function;

8. With casters and locks, removable, fixed.

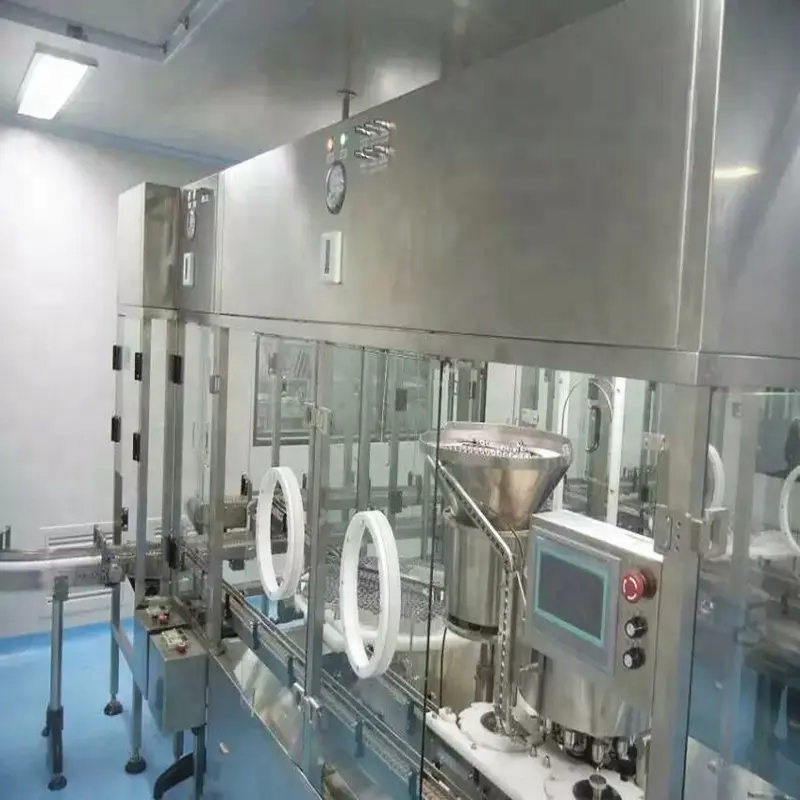

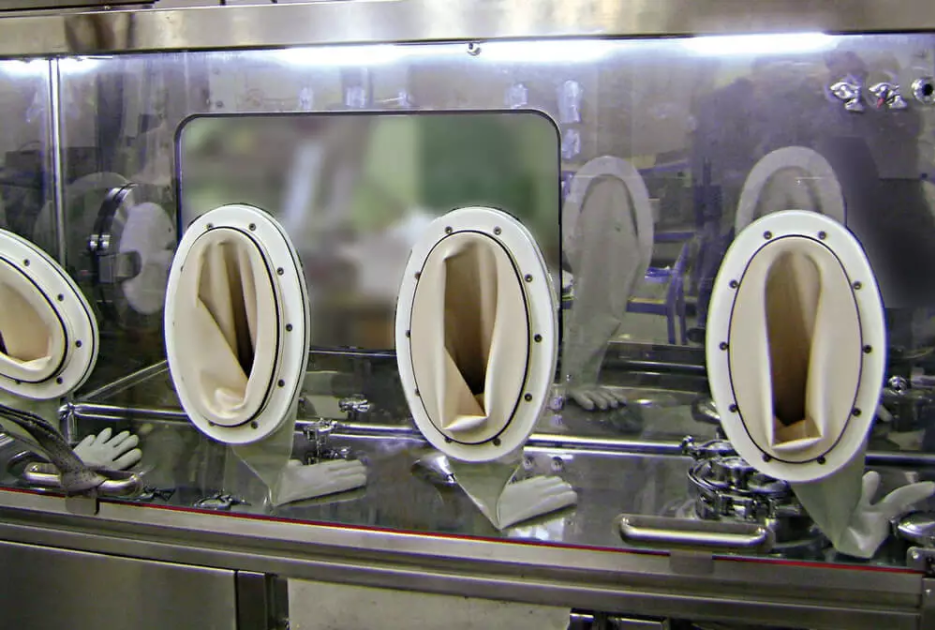

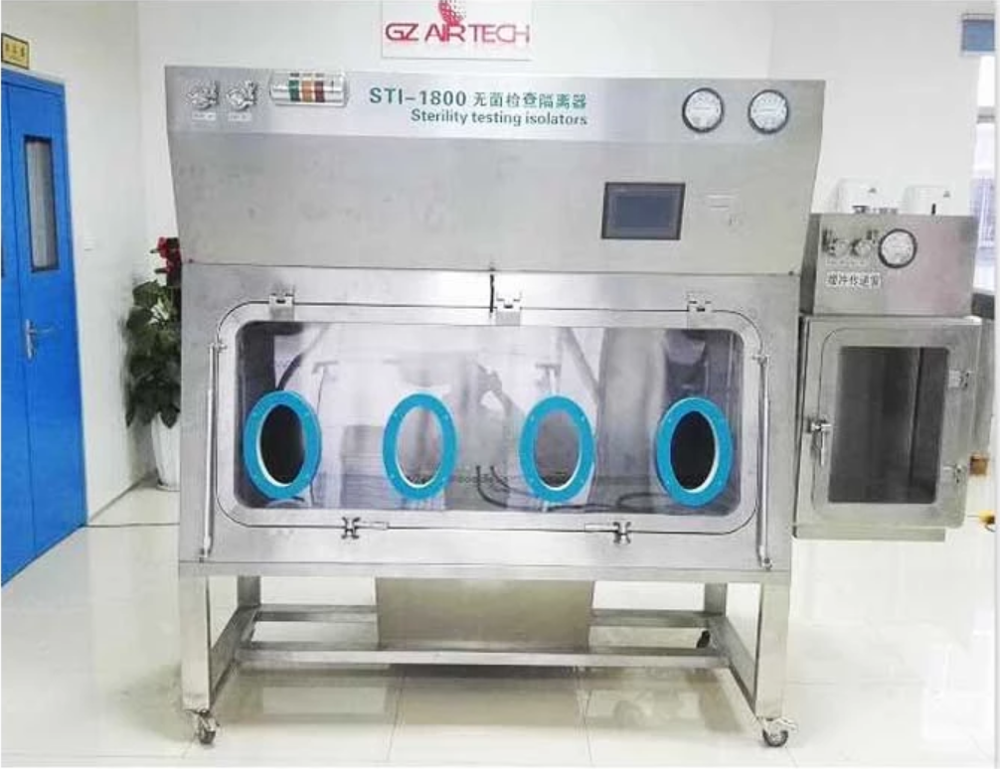

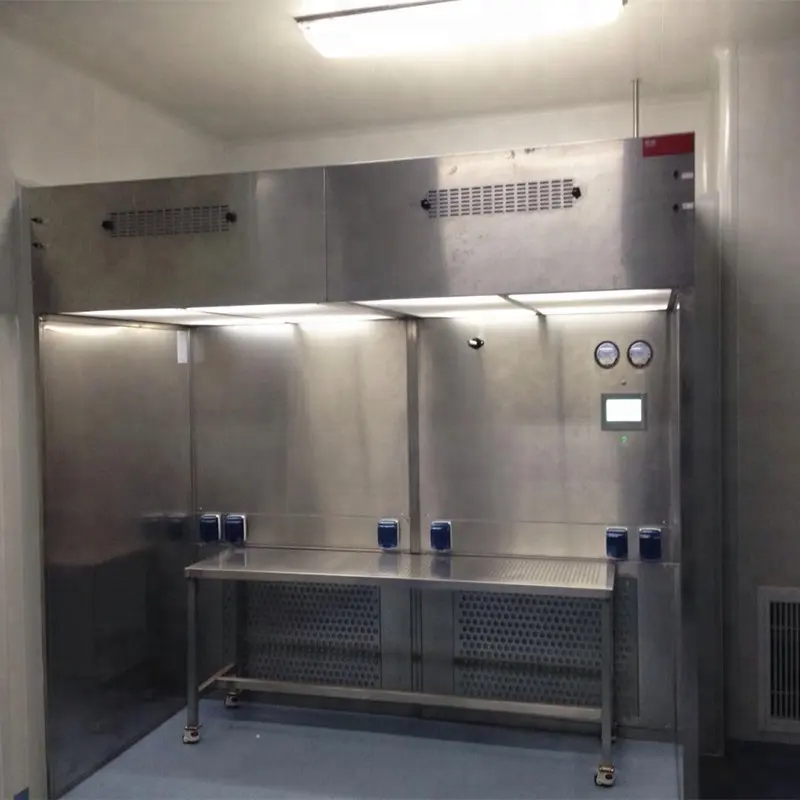

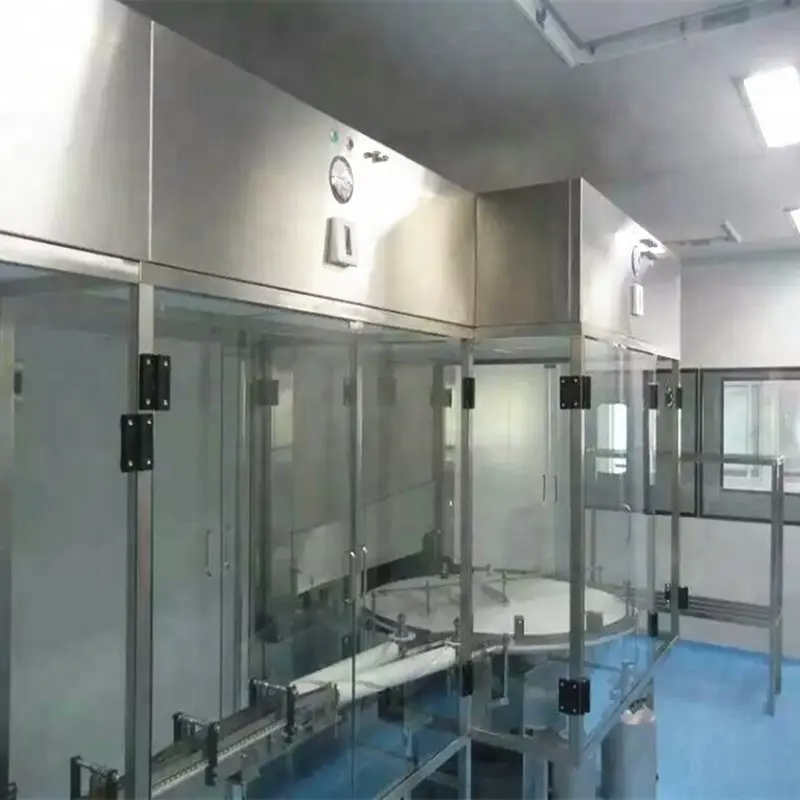

Detail show
