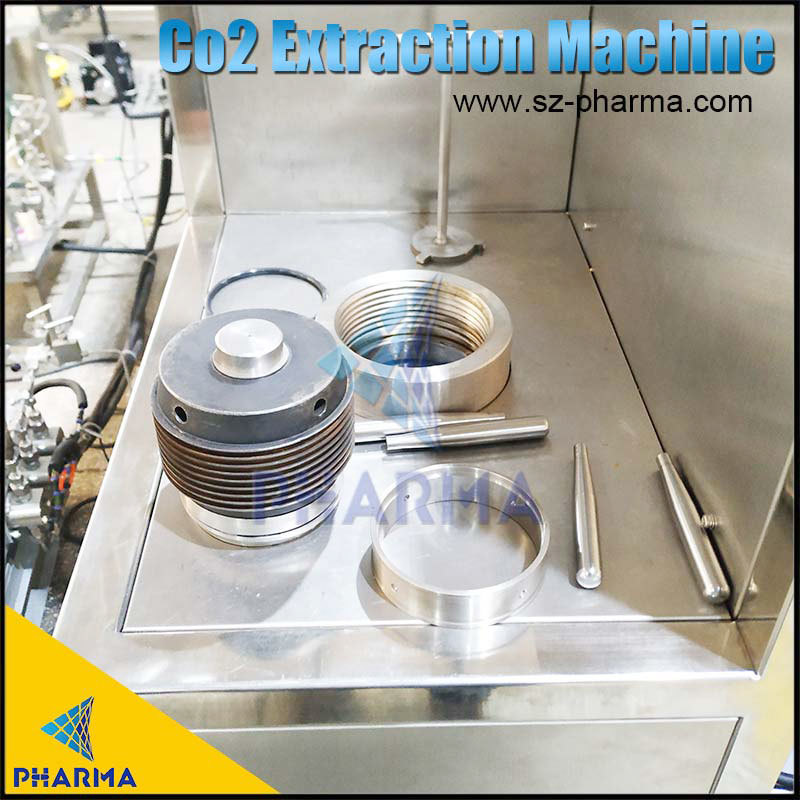

300l supercritical co2 extraction machine

After Warranty Service:Video technical support, Online support, Field maintenance and repair service
Warranty:1 year
Certification:CE ISO GMP
Application: chemical, food, pharmaceutical, petroleum, medical
Name:Extraction equipment

After-sales service guarantee: provide equipment debugging instruction video and online technical support.
Extracted material: solid/liquid
Name:CO2 Extraction Machine
Frame material:Metal
Popular use: Plant extraction

product-PHARMA-img

It USES the relation between the solubility of supercritical fluid and its density, that is, the influence of pressure and temperature on the solubility of supercritical fluid.

In the supercritical state, the supercritical fluid is contacted with the substance to be separated, and the components of the polarity, boiling point and molecular weight are extracted selectively.

Basic Flow and Combination style of the super critical CO2 Extraction device:

CO2→extraction kettle→separation1→separation2→return circuit
CO2→extraction kettle→separation1→separation2→fine distillation column→return circuit
CO2→extraction kettle→ine distillation column→separation1→separation2→return circuit
CO2→extraction kettle→separation1→fine distillation column→separation2→return circuit

Characteristics

1. SFE is the cleanest extraction method. Since there is no organic solvent in the whole process, there is no residual solvent in the extraction.

2. Extraction and separation are combined into one. When the CO2 fluid of saturated dissolved substance enters the separator, CO2 and extraction rapidly become two phases (gas-liquid separation) and immediately separate due to the decrease of pressure or the change of temperature.

3.All the pipes are covered with insulation cotton to avoid the temperature change form condensate water damage machine and low down the noise greatly.Our workers all have more than 10 years production experience.

4.And our machine is designed only need connect 6 quickly interface pipes.This is easy and save at least USD 6,000-10,000 engineer abroad installation fees.

5.All body use SUS 304 easy to clean and not easy to rust.All the parts adopted advanced design to low down the power loss and increase the production speed.

product-PHARMA-300L Supercritical co2 extraction machine-img

PH120-50-01	1L
PH120-50-05	5L
PH120-50-10	10L
PH220-50-20	10L/10L
PH120-40-24	24L
PH220-40-48	24L/24L
PH420-40-96	24L+24L/24L+24L
PH220-40-100	50L/50L
PH420-40-200	50L+50L/50L+50L
PH320-40-300	100L/100L/100L
