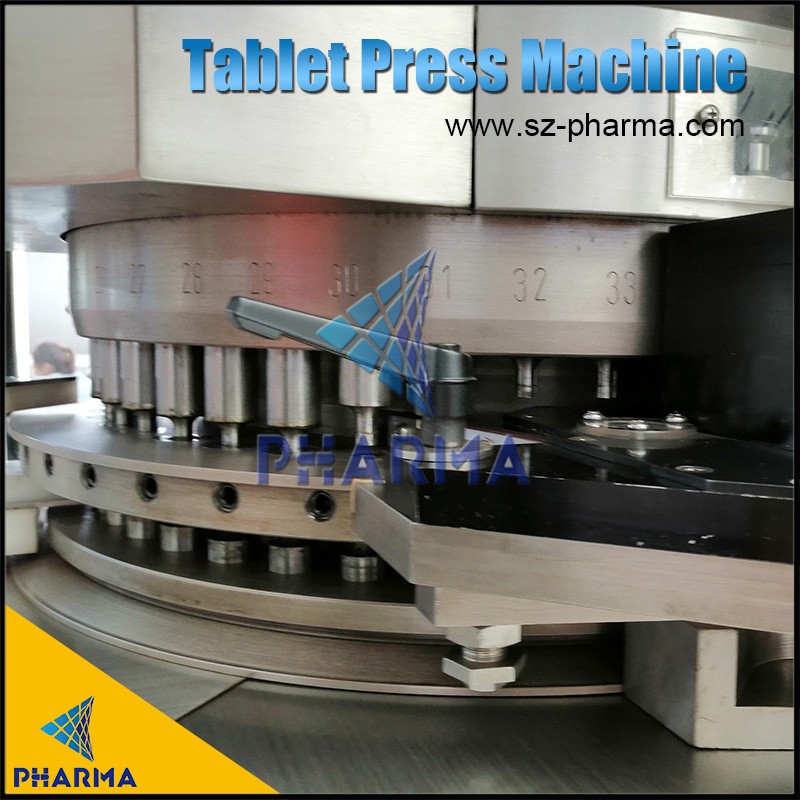

12 punches and dies rotary tablet press machine


  • After Warranty Service:Video technical support, Online support, Field maintenance and repair service

  • Warranty:1 year

  • Model:Zp33/31/29/27

  • Shipment:Express, Air, Sea,

  • Power Source: Electricity

  • Motor Power:5.5kw

  • Material:Stainless Steel

  • Max Pressure:100kn

  • Turret Rotation Speed:30r/Min

  • Weight:1850kgs

product-PHARMA-img


product-PHARMA-img

Related Products

product-12 punches and dies rotary tablet press machine-PHARMA-img

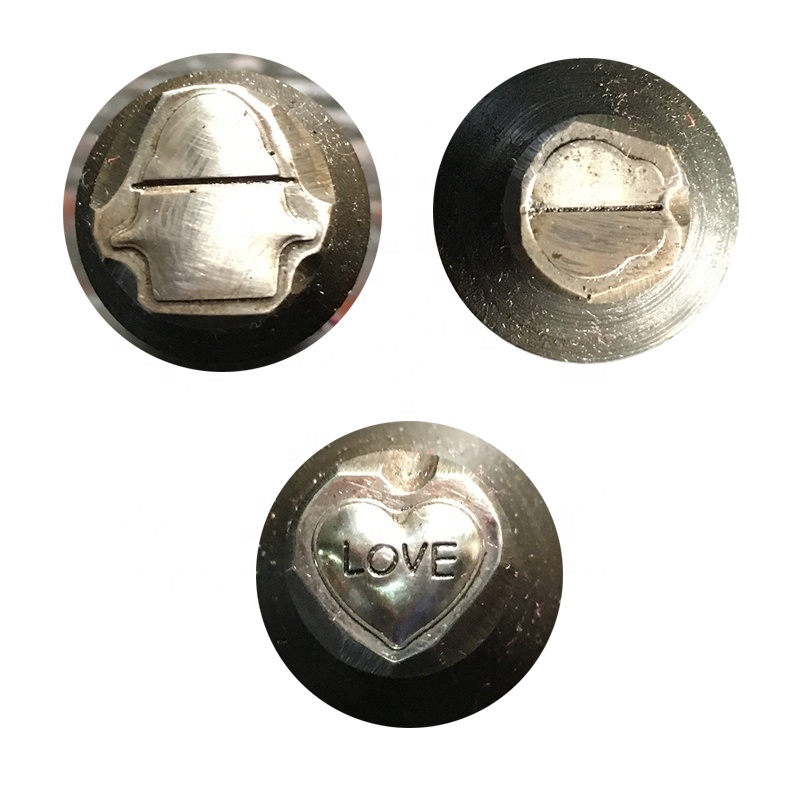

 Tablet press die

product-PHARMA-12 punches and dies rotary tablet press machine-img

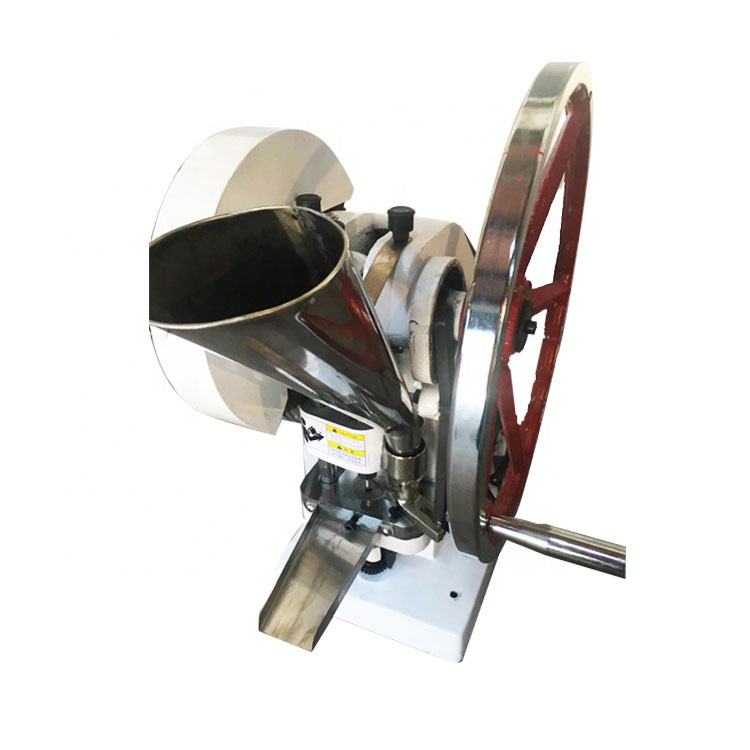

TDP  tablet press machine

product-PHARMA-img

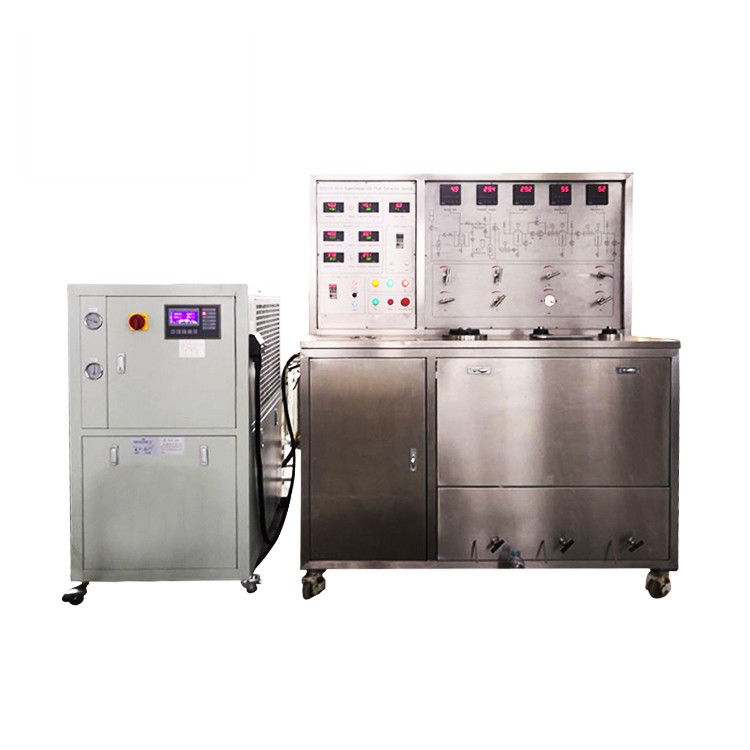

Co2 extractor

product-PHARMA-img

 cleanbooth





New type rotary tablet press gives you better quality and price, automatic tablet press for pressing granular raw materials into. This machine is a single press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.



This kind of tablet press is widely used and good quality for small scope production, our company developped this kind of tablet press machine based at 7 punches, 9 punches, 12 punches and 15 punches. it is very popular in tablet press market.




This machine may press material in particle form into all kinds of normal and special-shaped tablets, and mainly applies to tablets production in pharmaceutical industry and in chemical, food, electronic, plastic and powder metallurgy industries. The completely enclosed external casing is made of stainless steel and conforms to GMP standard. Windows with transparent glasses results in clear watch of the working state of the machine and can be fully opened to achieve easy cleaning and service of inside. The machine boasts high pressure and wide range of diameter for pressing. It can press ordinary, special-shaped, ring tablets and etc., especially suitable for production of various catalogues and small quantity. The mesh-electrical machine gathers all controllers and regulating devices at one side of the engine body for easy operation. Pressure overload protection device is furnished to avoid damaging the machine. Transmission mechanism by oil-immersed operation is enclosed below the machine body, which extends the service life and avoids cross infection.


This kind of tablet press is widely used and good quality for small scope production, our company developped this kind of tablet press machine based at 7 punches, 9 punches, 12 punches and 15 punches. it is very popular in tablet press market.




product-PHARMA-img-1

Feature:


1. The outside part of the machine is fully-enclosed, and it is made of stainless
steel, meeting the GMP requirement
2. It has transparent windows, so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance are easier
3. The machine can press not only round tablets, but also different geometrical shape tablets, double-layered and annular tablets; the tablets may have the impressed letters on both sides
4. All the controllers and devices are located in one side of the machine, so that it can be easier to operate
5. An overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs
6. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution




product-PHARMA-img-1


ModelZP-5ZP-7ZP-9
Dies(Sets)579
Max.tablet pressure (kn)404040
Max.tablet diameter (mm)202020
Max.filling depth (mm)151515
Max.tablet thickness (mm)666
Turret rotation speed(r/min)303030
Production capacity (Pc/h)96001344017280
Motor power(kw)

1.1

Net weight(kg

250kg

Overall size (L*W*H)(mm)

600*960*1150

One reason for using this product for production is efficiency. It can greatly increase the speed and quality of production. People who used this product praised that this product has a significant impact on improving production efficiency. This helps promote business growth.
