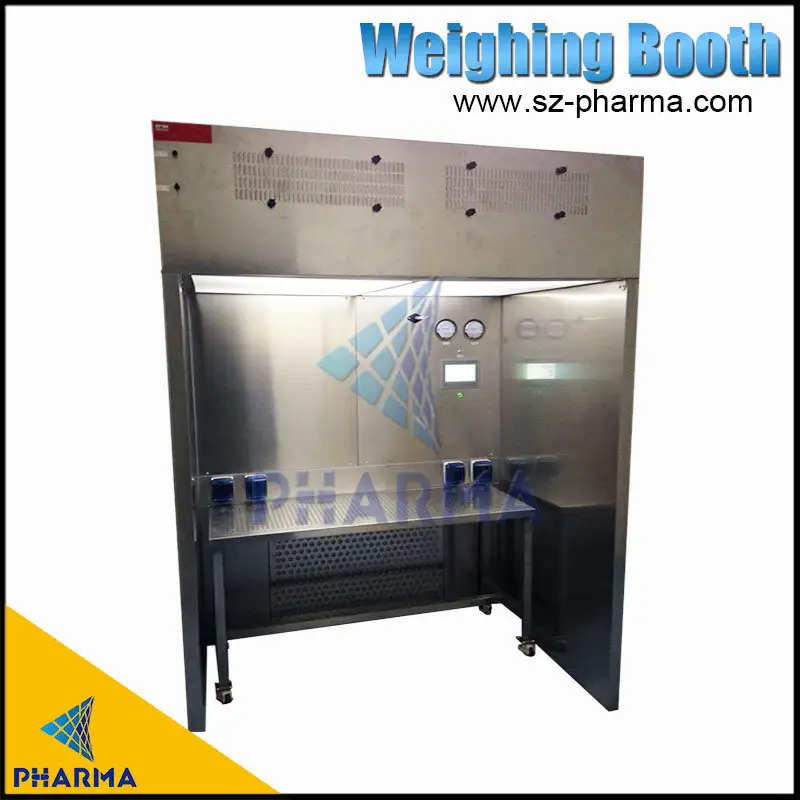

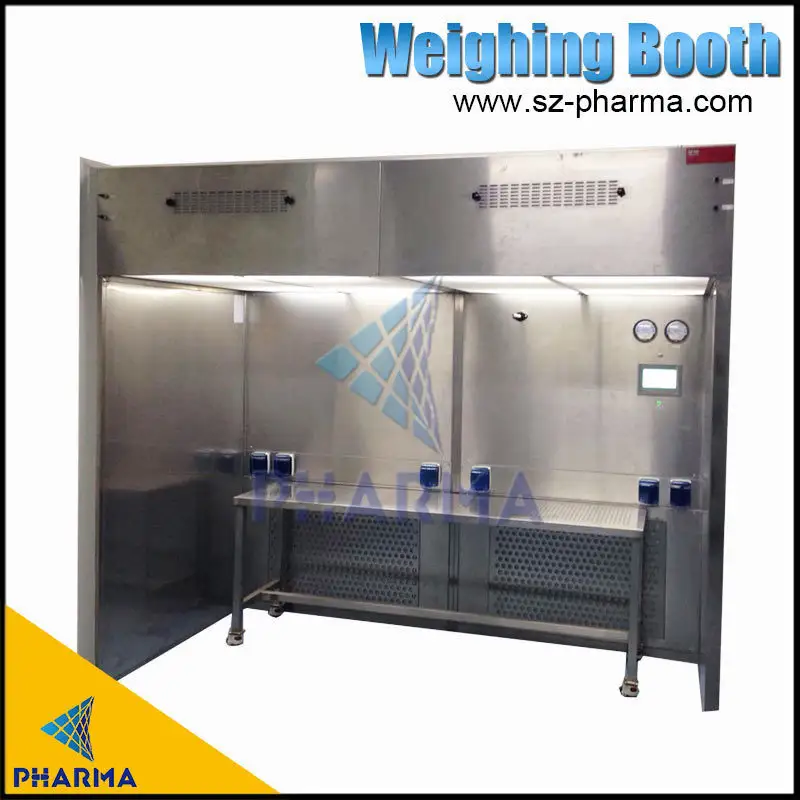

Dispensing booth also called weighing booth, sampling booth, down flow booth, weighing room.
The dispensing booth(sampling booth)has a wide range of applications. Suitable for all kinds of clean rooms from class
10.000 to class 100. The dispensing booth is made of stainless steel 304 or 316 material. The dispensing booth is a kind
of local purification equipment specially used for pharmaceutical, medical, laboratory, microbiological research and scientific
experiments. It provides a vertical one-way airflow, part of the clean air circulates in the working area, and part of it is
discharged to the nearby area, so that the working area can generate negative pressure, prevent cross-contamination,
and ensure a high cleanliness environment in the working area.
Model
PH-W series
Internal Size (W*D*H)mm
1600*3000*2600
2000*3000*2600
2500*3000*2600
External Size (W*D*H)mm
1500*2400*2000
1900*2400*2000
2500*2400*2000
Clean grade
ISO5
Pre-filter
G4 (90%@5um)
Med-filter
F8 (85%~95%@1~5um)
HEPA filter
H14 (99.995-99.999%@0.3)
Power Supply
380V/50HZ
Control Mode
VFD Control/Simens PLC Control
Rated Power
3kW
4kW
5kW
Total/Exhaust Volume
8000/800(m3/h)
10000/1000(m3/h)
13000/1300 (m3/h)
Lighting
LED light, UV light
Different Pressure Gauge(3 nos.)
0-60Pa/0-250Pa/0-500Pa
Suzhou Pharma negative pressure dispensing booth ensures the safety and reliability of the sampling and weighing
process. And the negative pressure environment formed does not have to worry about cross-contamination, which not
only protects the medicine and the environment, but also protects the safety of the operator.
The design and application of the flow film at the lower end of the air outlet ensures that the surface wind speed in
the A-level area is uniform and reliable, and is kept within the range of 0.45m/s±20%.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: What is the MOQ?
A: 1 set,if you order more,the labor cost and delivery will be cheaper.
Q: How long is your delivery time ?
A: Generally it is 15-20 working days
Q: Can I get Special design and function?
A:Yes, We are very pleased to be able to provide you with new designs, or to manufacture according to your drawings.
Q: How can you guarantee the production quality ?
A:Our production quality follow ISO,CE standard.
Q: How can you guarantee High level manufacturing process and installation ?
A:We provide clean room project and equipment,HVAC system.We are professional suppliers for 15 years.We have the best Designers,engineers.We will design and manufacture according to the standards of the cleanroom.We have the best installation workers,they can make a Perfect building.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 40% T/T in advance ,balance before shippment.
