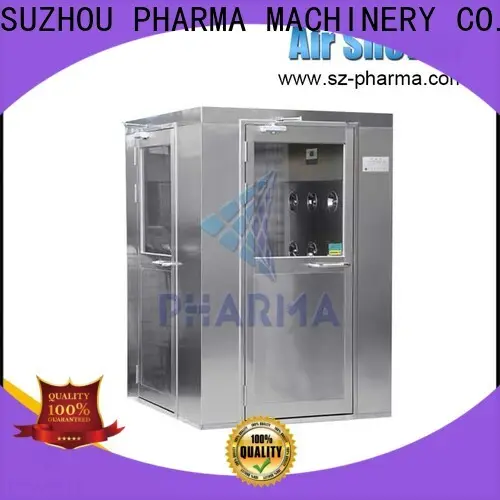

PHARMA hot-sale air shower supply for food factory

PHARMA hot-sale air shower supply for food factory

Brand name:
PHARMA CLEAN
Size:
Customize
Original:
Suzhou, China
Price:
USD 1000-3000/Sets
Payment:
T/T; Cash; Alibaba trade assurance
Delivery Time:
15-20 days,depending on the quantity
Supply Ability:
50-100 Sets/per month
Start Port:
Shanghai
Packing Details:
Carton packing,metal frame;plywood case
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. We can customize shapes for our air shower .
2. The product provides countless fun and lasting memories for thousands of families, providing them an unforgettable hot summer!
3. This product can provide constant results. It does not feel tired and serious mistakes, nor does it suffer from repetitive strain injuries.
4. The product features user-friendliness. It has the desired functions that are developed based on the actual needs to support different kinds of operations.


  • After Warranty Service:Video technical support, Online support, Field maintenance and repair service

  • Warranty:1 year

  • Power Supply:220/380v 50-60hz

  • Application:Changing room, cleanroom, dust free workshop

  • Size:Customized

  • Power(W):500-2000W

  • Feature:Automatic Control

  • Material:SUS 304

  • Number of nozzles:12-48pcs according to air shower size

  • Certification:CE ISO


PHARMA hot-sale air shower supply for food factory-1


Limit Discounts

Limit Discounts


PHARMA hot-sale air shower supply for food factory-2


Description

Description


The L type corner air shower like ordinary air shower room, it is one of the best cleaning equipment for entering clean room. It uses high-speed air flow to blow down and remove particles attached to the surface of personal clothing or materials. Prevent the staff from bringing hair, dust and bacteria into the workshop to meet the strict dust-free purification standard of the workplace, and produce high-quality products. Corner air shower chamber and standard air shower room are composed of large box (fan and filter are installed in this box), small box (double blower shower room is installed with nozzles on this side, the number is the same as that of large box), top plate (installation of embedded lighting), inner bottom plate (stainless steel sand plate), double door of air shower room and other accessories: filter, fan, intelligent circuit board, nozzle, lighting lamp, etc.


PHARMA hot-sale air shower supply for food factory-3
Characteristics

1. Blowing method: single blowing or top blowing, double blowing or top blowing in general


2. It is humanized. The door opening direction of the air shower room can be customized according to the customer's site. The indoor space of the corner air shower is unchanged, and the floor area is small, which can save the practical area..


3. The structure is complex, there are three boxes, and the general air shower room only has two boxes.


4. The module design scheme is adopted, and the equipment structure is reasonable. The company can move the plant and assemble it again according to the future production demand.


5. The corner air shower room has beautiful appearance, long service life, easy to clean, in line with the principle of dust-free room design.

Technical Parameters

Technical Parameters


Specification and modelPH-L-1000PH-L-2000
Dimensions (w * L * H mm)1200*1000*20501200*2000*2180
Size of air shower area (w * L * H mm)790*860*1880790*1860*1880
Wind speed of fan20-30m/s20-30m/s
Number of stainless steel nozzles6pcs12pcs
Wind shower cycleFactory initial setting is 10s, 10-99s (adjustable)
Size of high efficiency filter610*610*150*1610*610*150*2
Efficiency of high efficiency filter99.99%@0.5um
Box plate1.2mm thick cold rolled steel plate, surface electrostatic spray treatment
Door and floor materialsStainless steel single door, 2 doors, EVA material, high sealing performance, 5mm strong glass, double door interlock, with handle, automatic closing. The bottom plate is made of stainless steel, abrasion resistance and corrosion resistance.
Door interlock modeIn case of wind shower, the double doors are locked, and only one of them can be opened
supply voltage380V, 50Hz, three phase
Fan power (W)750*1750*2
Fluorescent lamp power (W)20*120*2
Applicable number of people1-2 people2-4 people

Installation

Installation


PHARMA hot-sale air shower supply for food factory-4

PHARMA hot-sale air shower supply for food factory-5


PHARMA hot-sale air shower supply for food factory-6


PHARMA hot-sale air shower supply for food factory-7


PHARMA hot-sale air shower supply for food factory-8

PHARMA hot-sale air shower supply for food factory-9

PHARMA hot-sale air shower supply for food factory-10


PHARMA hot-sale air shower supply for food factory-11


Company Features
1. SUZHOU PHARMA MACHINERY CO.,LTD. has won wide popularity for supplying high quality air shower . Our factory operates in conformity with the industry standard, being supervised by the qualified structural and technological department. And the introduction of advanced equipment allows us to manufacture the most optimal products.
2. We have robust teams covering the entire manufacturing process. Their expertise in materials research, advanced design methods, and global manufacturing capability allow us to create reliable products our customers need.
3. We have a dense network of satisfied customers around the world. These customers complement our global business by bringing our products to world markets. SUZHOU PHARMA MACHINERY CO.,LTD. will never stop pursuing excellence for air shower room. Get an offer!
All shapes and all sizes of air shower unit can be selected by you. This product is able to withstand huge air humidity
air shower unit is designed by professional designers with rich industry experience. This product has been certified under CE and RoHS
air shower room looks beautiful and attractive in colors. This product is equipped with compatible interfaces
air shower room, with its key component being air shower unit, has a good performance on air shower unit. This product has been widely used for air quality monitoring, hydrological monitoring, and water treatment
Our design for air shower unit are performed by our professional design team who are specialized in designing for a long time. This product requires low maintenance during its lifespan
Through the devotion to the performance of air shower room, SUZHOU PHARMA MACHINERY CO.,LTD. has received more and more orders. This product has the ability to resist strong corrosion
